WERA 1567 TORX BO ESD Micro Kraftform screwdriver with Bore, TX 6 BO x 60 mm - 05030113001

Scope of delivery

• 1567 TORX® BO ESD Kraftform Micro screwdriver for tamper-proof TORX® screws, TX 6 BO x 60 mm

Product description

ESD-safe Micro screwdriver. Dependable protection against electrostatic energy and associated damage. TORX® BO screws have a protruding pin in their drive profile. This effectively prevents any unauthorised loosening since such screws cannot be actuated with "normal" TORX® tools. Only special TORX® BO tools have a corresponding bore hole for the take-up of the pin. Rapid twisting results from fixing the hand on the rotating cap and by rotating the fast-turning zone just below. This makes time-consuming grip adjustments unnecessary. Power zones with integrated soft sections ensure the transfer of high loosening and tightening torque; a precision zone provides for the right rotation angle during fine adjustment work. The Black Point tip offers optimised corrosion protection and an exact fit.

• Kraftform Micro screwdriver for recessed TORX® screws with safety pin
• ESD-safe tool thanks to surface resistance of<= 10⁹ Ohm
• Multi-component Kraftform Micro handle for fast and ergonomic screwdriving
• The Wera Black Point tip offers an exact fit and optimum corrosion protection
• Take it easy tool finder: colour coding according to profile and size

Application

• TORX® socket screws with safety pin

Blade

• Round

Design

• Bore hole in TORX® section, chrome-plated, Black Point

Handle

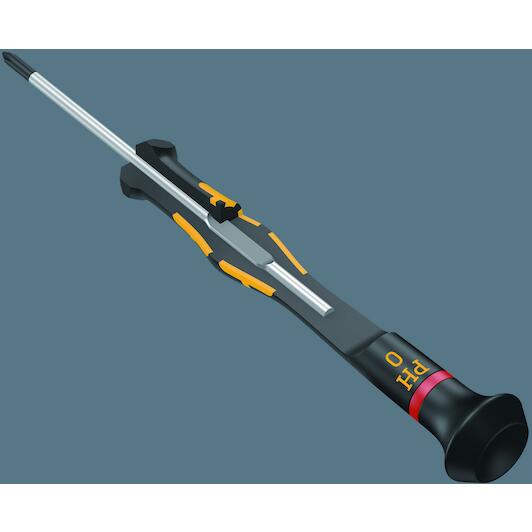

• Kraftform Micro with non-roll feature and rotating cap, multi-component. Take it easy tool finder: colour coding according to profile (green = TORX®) and size stamp.

Features and benefits

• The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies.
• The electric surface resistance of the Wera ESD material is<= 10⁹ ohm. This securely protects components against electrostatic energy and associated damage.

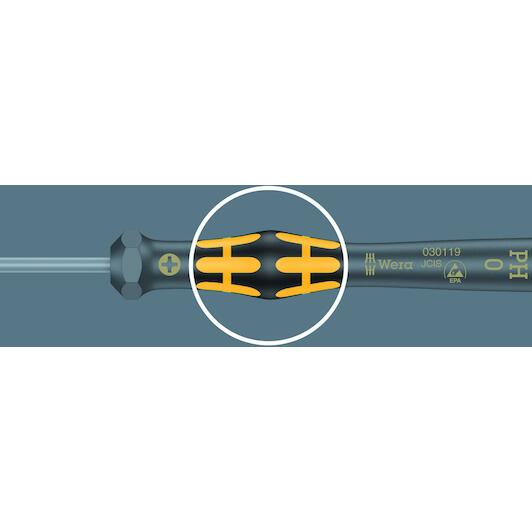

• Multi-component screwdriver handle for ergonomic working.
• The power zone has integrated soft zones near the blade tip to ensure high torque transfer for loosening or tightening screws without losing contact with the screw.
• The fast-turning zone just below the rotating cap allows rapid spinning.
• The precision zone directly above the blade gives the user a better feel for the right rotation angle during fine adjustment work.
• The Wera Black Point tip and a refined hardening process ensure long service life of the tip, improved corrosion protection and an exact fit.

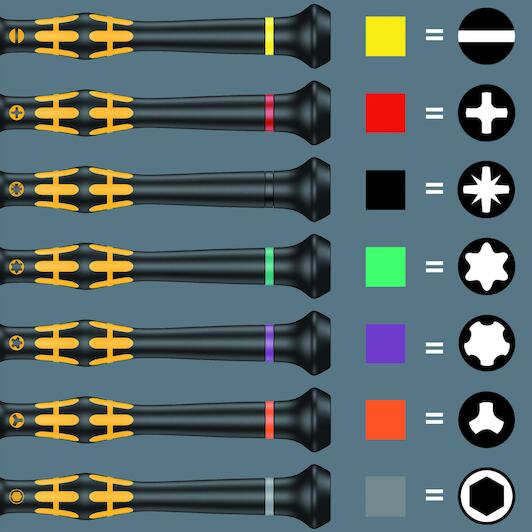

• Screwdrivers with Take it easy tool finder: colour coding according to profile and size stamp.
