Product description
13 mm static braided rope for Tractel Tirope winch

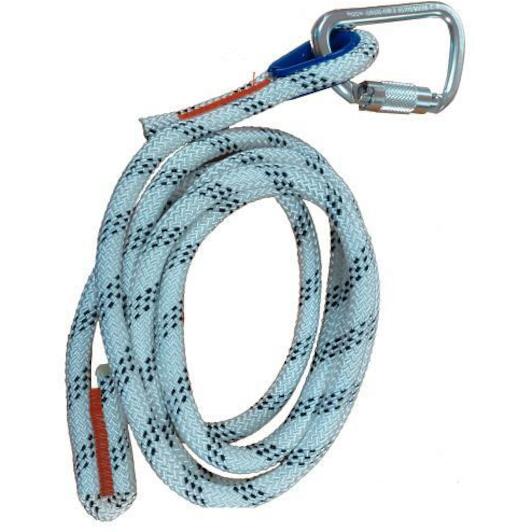

The 13 mm static braided rope serves as security support for the Tractel Tirope winch. This braided rope is available in lengths of 10, 20, 40, 50 metres. It features a loop with sleeving and an M15 connector at the top and a sewn plug at the bottom.
Technical specifications.
- PA jacket (polyamide) and PA core
- 6.6 D tex > 2 100
- Freeness value: 18
- Mass per metre: 99 g/m
- Ø under 10+/-0.1 kg: 13+/-0.5
- Fibre strength: > 0.6 n/tex
- Breaking strength sewn termination: > 2 530 daN
- Connector: M15 aluminium, opening 23 mm - L: 107 mm - H: 10 mm - W: 57 mm
Standards
The braided rope for the Tirope winch complies with EN 1891/A (static braided rope).
