Product description

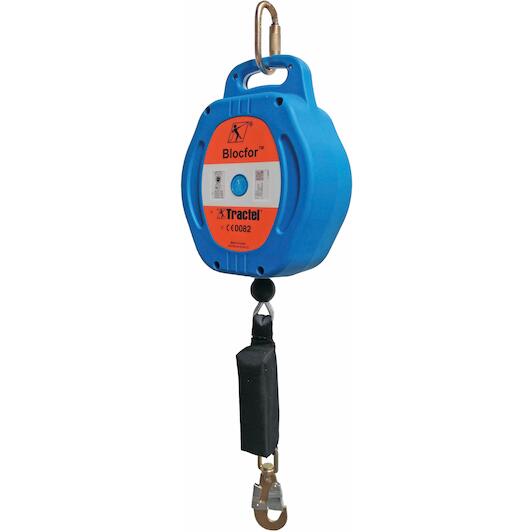

- Blocfor fall arrest device with 20-metre steel cable
- Tractel's latest innovation in automatic fall protection. A simple and proven mechanism for optimal operation and maintenance. In the event of a fall, the ESD system ensures that the impact on the user is less than 600 daN. Even if the user falls when the steel wire is uncoiled.
- Tractel's latest innovation in automatic fall protection. A simple and proven mechanism for optimal operation and maintenance. In the event of a fall, the ESD system ensures that the impact on the user is less than 600 daN. Even if the user falls when the steel wire is uncoiled.
- Galvanised and synthetic connectors
- M24 double lock on the top and M47 automatic lock with locking pin on the absorber.
- Steel connectors
- M10 manual connector in stainless steel at both ends. With an integrated locking pin on the absorber end.
Key features
- An automatic fall arrest device
- With 20 metres of steel rope made in: Galvanised steel, stainless steel or synthetic rope.
- Equipped with our ESD (Extremity System Dissipator) absorption system.
- Suitable for users weighing up to 150kg.
- Works in both vertical and horizontal applications (certification for working on edges).
Other features
- Ergonomic handle for easy handling during transport and installation.
- Lightweight thanks to plastic housing.
- Smooth in use. Proven mechanism prevents unintentional locking of the system.
- A reinforced spring that ensures perfect winding of the entire cable.
- Impact-resistant and UV-resistant housing.
- Removable protective cover around the shock absorber.
Use
- For users weighing up to 150 kg including their equipment. Certified according to PPE-R/11.062 "fall arrester with a capacity of more than 100kg",
- For vertical application with an angle of up to 20° to the perpendicular of the anchor point.
- For horizontal application with edges with a radius of more than 0.5 mm, only for the version with galvanised and synthetic rope. Certified according to PPE-R/11.060 "horizontal use".
