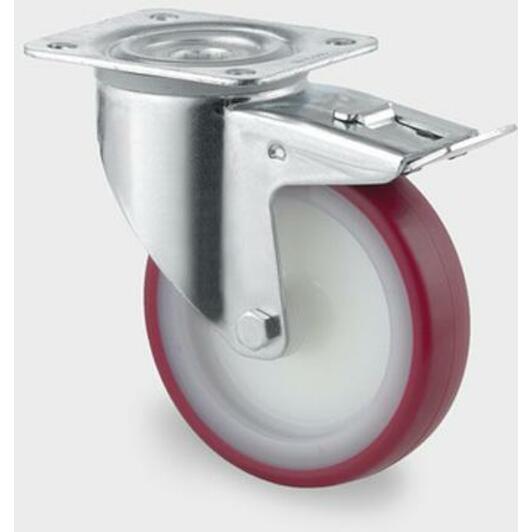

TENTE 3477-UAR-080-P62 red swivel castor with brake nylon/polyurethane 80 mm max. 100 kg - 00304214KK

Name: TENTE 3477-UAR-080-P62 red swivel castor with brake nylon/polyurethane 80 mm max. 100 kg - 00304214KK
Brand: TENTE
SKU: 02821934
Price: 26.2 EUR
Availability: InStock

Supplier number: TENTE 00304214KK | EAN 4031582273083

26.20 tax incl.

€21.65 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Ordered before 20:00 - delivered tomorrow 01/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Smooth maneuverability and dependable locking control

Practical benefits

Smooth and quiet rolling: The polyurethane tread and nylon wheel centre allow you to roll quietly across floors without leaving unwanted marks.
Secure locking during stops: With the integrated locking brake, you reliably secure mobile carts and machinery in place during stationary operations.
Strong capacity to 100 KG: The heavy-duty steel mounting plate enables you to carry demanding workshop equipment loads up to 100 KG safely.

In a nutshell

The right choise for

With the Tente 3477-UAR-080-P62 braked swivel castor, you move workshop trolleys, mobile workbenches, and flight cases smoothly and with full control. Combining a tough nylon centre with a durable polyurethane tread, it rolls quietly and protects delicate floors from scratches and marks. Thanks to the sturdy 105 x 85 mm mounting plate with 80/77 x 60 mm bolt hole spacing, you can securely fit the castor under your equipment to handle loads up to 100 kg. When you need your mobile setup to stay firmly in place during work, the integrated total lock mechanism reliably locks both the 80 mm wheel and the swivel head with a simple step.

Product information FAQ

€26.20

In stock - tax incl.

Key features according to our expert

Wheel diameter: 80 mm
Max. load capacity: 100 kg

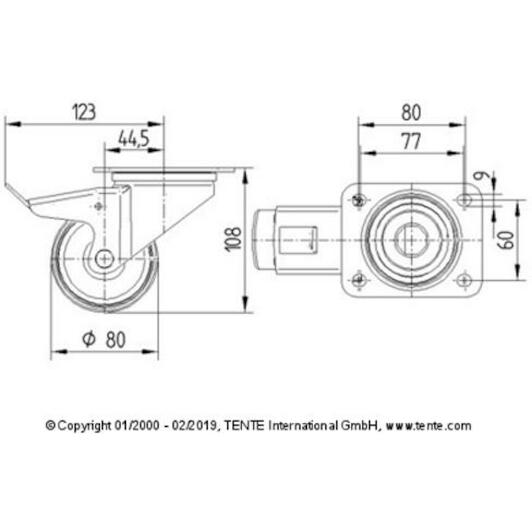

Total height: 108 mm

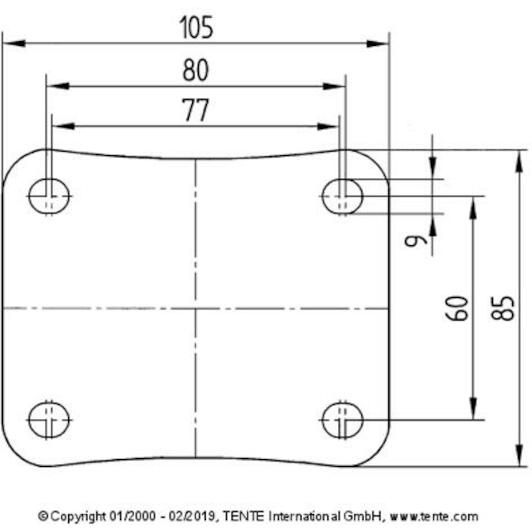

Mounting plate (L x W): 105 x 85 mm mm
Bolt hole spacing: 80/77 x 60 mm
Material (Wheel): Nylon; Polyurethane
Wheel type: Swivel castor with brake

Product description:

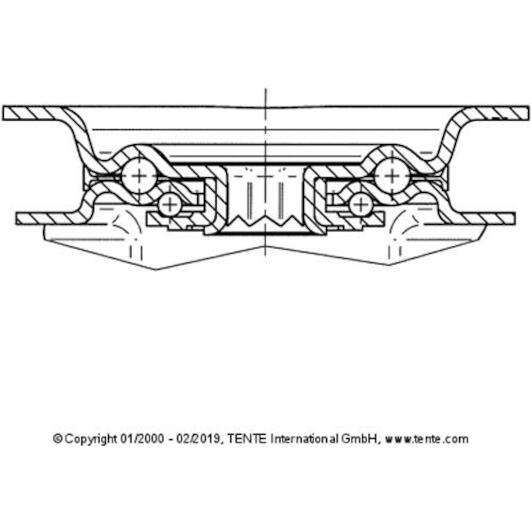

Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting.
Wheel centre made of Polyamide, Tread: Polyurethane, roller bearing

All Features

Wheel diameter: 80 mm
Max. load capacity: 100 kg
Total height: 108 mm
Mounting plate (l x w): 105 x 85 mm mm
Bolt hole spacing: 80/77 x 60 mm
Material (wheel): Nylon; Polyurethane
Wheel type: Swivel castor with brake

Brand TENTE
02821934
EAN 4031582273083
Supplier number TENTE 00304214KK

Frequently asked questions about this product

Answered by specialists

What is the maximum load capacity of this castor?: The swivel castor has a maximum load capacity of 100 kg per wheel.
What are the dimensions of the top plate and hole spacing?: The mounting plate measures 105 x 85 mm with a bolt hole spacing of 80/77 x 60 mm.
What is the total overall height of this castor?: The overall height is 108 mm with a wheel diameter of 80 mm.
What materials are used for the wheel?: The wheel features a durable polyamide (nylon) centre with a polyurethane tread.
Does this swivel castor include a brake?: Yes, it is equipped with a total lock mechanism that locks both the wheel and swivel head.
