What is the maximum load capacity of this swivel castor?

This swivel castor has a maximum load capacity of 150 kg.

What are the dimensions of the mounting plate?

The mounting plate measures 105 x 85 mm with a bolt hole spacing of 80/77 x 60 mm.

What is the overall height of this Tente castor?

The total overall height of the castor is 128 mm.

What are the benefits of the nylon and polyurethane wheel design?

The nylon centre provides high structural strength, while the polyurethane tread offers floor protection and wear resistance.

Does this swivel castor include a brake?

No, this model is a standard swivel castor without a brake.

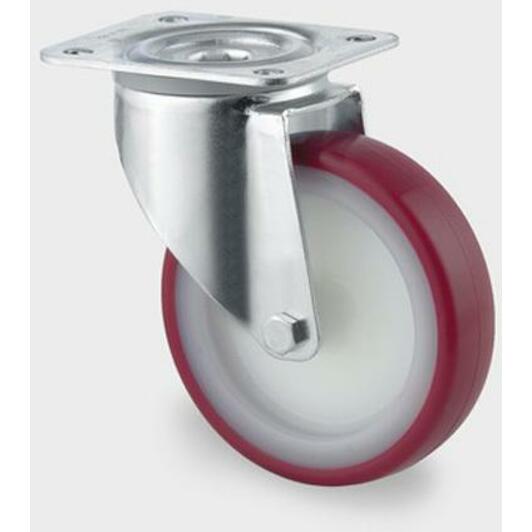

TENTE 3470-UAR-100-P62 red swivel castor nylon/polyurethane 100 mm max. 150 kg - 00304206KK

Name: TENTE 3470-UAR-100-P62 red swivel castor nylon/polyurethane 100 mm max. 150 kg - 00304206KK
Brand: TENTE
SKU: 02762609
Price: 15.8 EUR
Availability: InStock

Supplier number: TENTE 00304206KK | EAN 4031582369694

15.80 tax incl.

€13.06 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Smooth mobility for industrial transport

Practical benefits

Dependable heavy load handling: With the Tente 3470-UAR-100-P62 swivel castor, you effortlessly maneuver transport carts holding up to 150 kg.
Floor protection and durability: The polyurethane tread glides quietly across workshop floors, protecting delicate surfaces from scuffs and heavy wear.
Stable and secure fitting: You achieve quick, reliable mounting to equipment and carts using the robust 105 x 85 mm top plate.

In a nutshell

The right choise for

With the Tente 3470-UAR-100-P62 swivel castor, you maneuver heavy loads smoothly and with full control across industrial floors. Thanks to its maximum load capacity of 150 kg per wheel, you effortlessly steer transport carts, warehouse trolleys, or mobile workbenches in any direction. The combination of a robust nylon centre and an elastic polyurethane tread ensures quiet rolling while protecting delicate floors from scratches and streak marks. Featuring a 100 mm wheel diameter and a total height of 128 mm, it mounts quickly and securely to your equipment via the sturdy 105 x 85 mm top plate with 80/77 x 60 mm hole spacing.

Product information FAQ

€15.80

In stock - tax incl.

Key features according to our expert

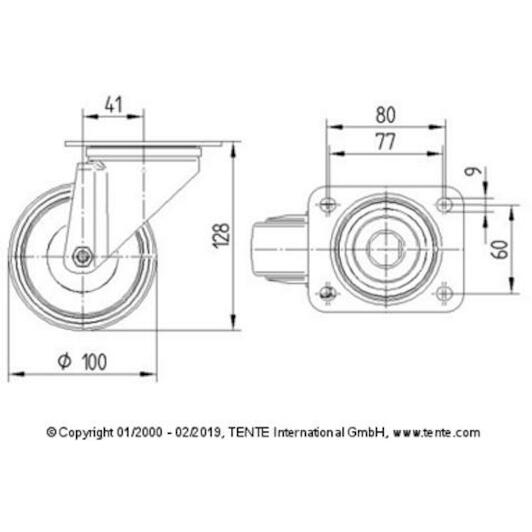

Wheel diameter: 100 mm
Max. load capacity: 150 kg
Total height: 128 mm

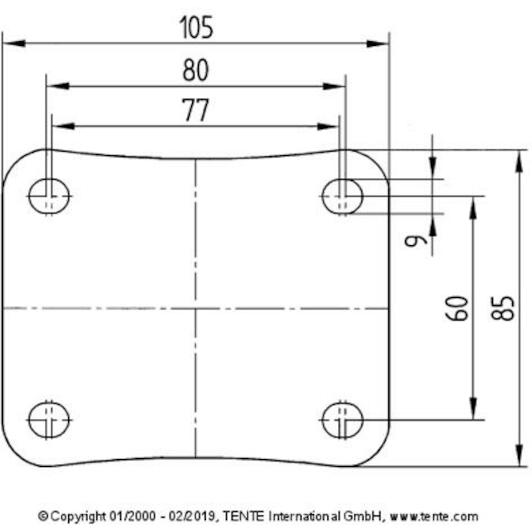

Mounting plate (L x W): 105 x 85 mm mm
Bolt hole spacing: 77/80 x 60 mm
Material (Wheel): Nylon; Polyurethane
Wheel type: Swivel castor

Product description:

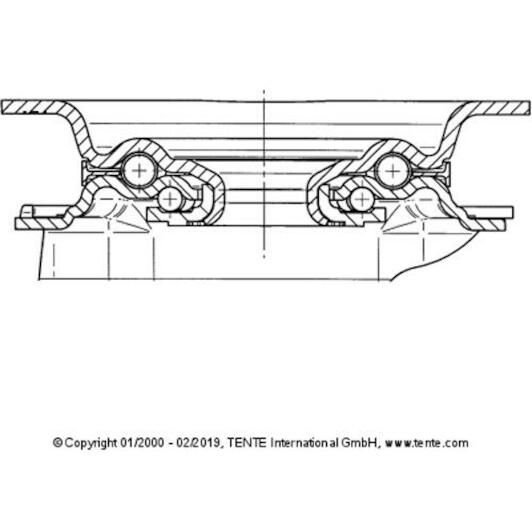

Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting.
Wheel centre made of Polyamide, Tread: Polyurethane, roller bearing

All Features

Wheel diameter: 100 mm
Max. load capacity: 150 kg
Total height: 128 mm
Mounting plate (l x w): 105 x 85 mm mm
Bolt hole spacing: 77/80 x 60 mm
Material (wheel): Nylon; Polyurethane
Wheel type: Swivel castor

Brand TENTE
02762609
EAN 4031582369694
Supplier number TENTE 00304206KK

Frequently asked questions about this product

Answered by specialists

What is the maximum load capacity of this swivel castor?: This swivel castor has a maximum load capacity of 150 kg.
What are the dimensions of the mounting plate?: The mounting plate measures 105 x 85 mm with a bolt hole spacing of 80/77 x 60 mm.
What is the overall height of this Tente castor?: The total overall height of the castor is 128 mm.
What are the benefits of the nylon and polyurethane wheel design?: The nylon centre provides high structural strength, while the polyurethane tread offers floor protection and wear resistance.
Does this swivel castor include a brake?: No, this model is a standard swivel castor without a brake.
