Smooth dispensing with the Tec7 Omnigun
- Stepless adjustable power transmission: With a ratio from 12:1 to 25:1, you effortlessly dispense both light joint sealants and heavy adhesives.

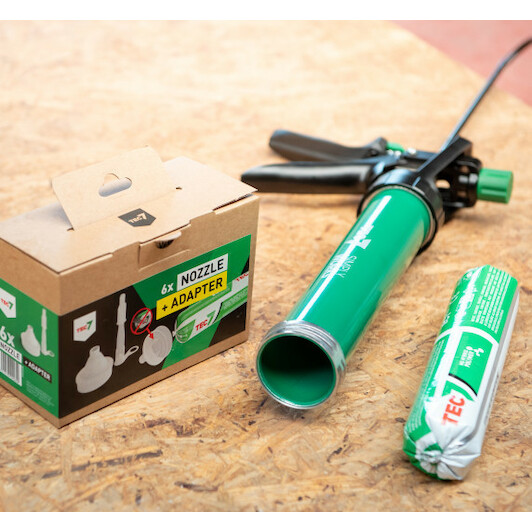

- For cartridges and foil sausages: You can switch conveniently between standard cartridges and 400 ml sausages for maximum versatility on every job.
- Ergonomic rotating tube holder: The rotatable barrel and balanced lightweight body let you apply sealant accurately at any required working angle.

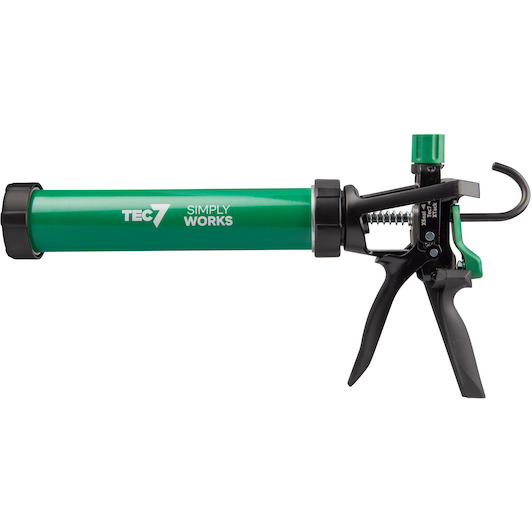

With the Tec7 Omnigun cartridge and sausage gun, you effortlessly apply both lightweight sealants and heavy adhesives using a single tool. The stepless adjustable power transmission from 12:1 to 25:1 gives you precise flow control while drastically reducing hand fatigue on demanding bonding tasks. Compatible with standard cartridges and foil sausages up to 400 ml, it offers maximum versatility on the job site. The ergonomic balance and rotatable tube holder allow you to position the nozzle at the optimal angle for hard-to-reach joints, ensuring clean, accurate results on every renovation and construction project.
Product description
CAULKING GUN WITH ADJUSTABLE FORCE TRANSMISSION
- Stepless force adjustment from 12/1 to 25/1
- For light sealants and heavy-duty adhesives in standard tube or sausage (400ml)
- Ergonomic lightweight design
- Rotatable tube holder
- Gun with infinitely adjustable power transmission from 12/1 for clean application of light, flexible sealant to 25/1 for easy pumping of heavy adhesive, 2K adhesive or chemical anchor and everything in between depending on the application
- Heavy duty materials for long life and treated steel connecting rod with suspension hook
Instructions
- Cartridge: cut open the cartridge and screw on the nozzle
- Cut off the nozzle according to the desired flow rate
- Insert the cartridge into the holder (piston is at the back)
- Turn the adjustment knob to the desired position
- Sausage: unscrew the entire holder
- Screw the black attachment onto the steel connecting rod
- Screw the holder onto the Omnigun again
- Insert the sausage into the tube and cut it open behind the metal washer
- Insert the prick adaptor into the outlet nut
- Close the tube with the nut and attach the nozzle to the prick adaptor
- Turn the adjusting knob to the desired position
- The sausage can be removed from the gun after use and re-used later provided the adaptor with nozzle remains on the sausage
- The gear ratio can be read off to the side below the adjusting knob:12/1: X-Seal - 18/1: Tec7 - 25/1: X-Tack
