What is the maximum clamping capacity of this clamp?

The maximum clamping capacity is 150 mm.

What clamping force does the Stanley Fatmax FMHT0-83238 deliver?

The trigger lever delivers a sustained clamping force of 2648 N (270 kg).

Can this clamp also be used as a spreader?

Yes, the reversible jaw converts tool-free via a push button for a spreading capacity up to 390 mm.

Will the clamping jaws damage delicate workpieces?

No, the removable soft jaw pads prevent marking and scratching on your workpiece.

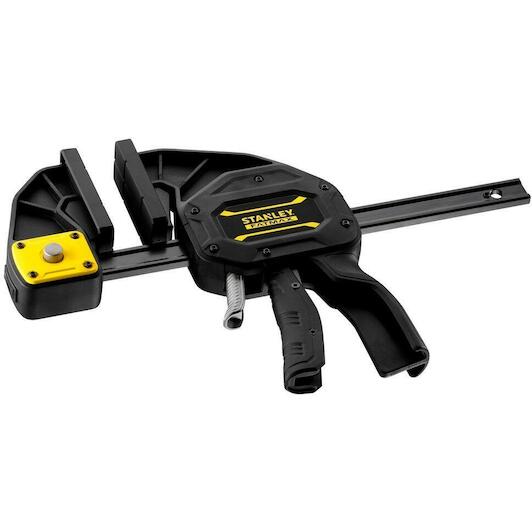

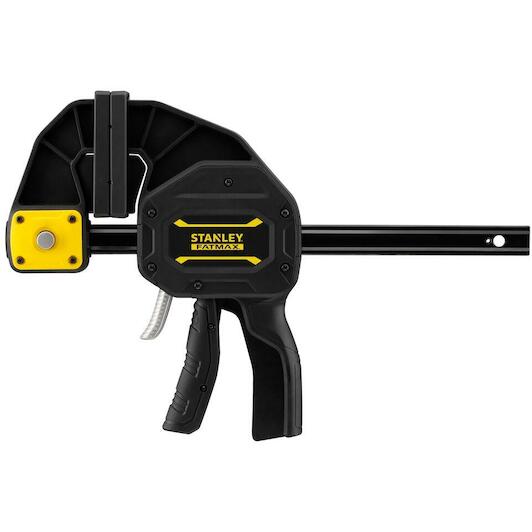

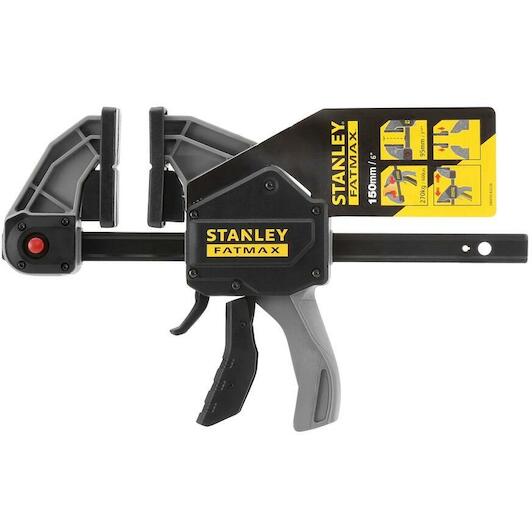

STANLEY FMHT0-83238 FATMAX one-hand clamp XL - 150mm

Name: STANLEY FMHT0-83238 FATMAX one-hand clamp XL - 150mm
Brand: STANLEY
SKU: 02874571
Price: 27.2 EUR
Availability: PreOrder

Supplier number: STANLEY FMHT0-83238 | EAN 3253560832384

Recommended Retail Price €46.98

27.20 tax incl.

€22.48 excl. VAT (incl. all environmental contributions)

On order: delivered from 17/10/2026

Ordered before 20:00 - delivered as of 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

High clamping power by Stanley

Practical benefits

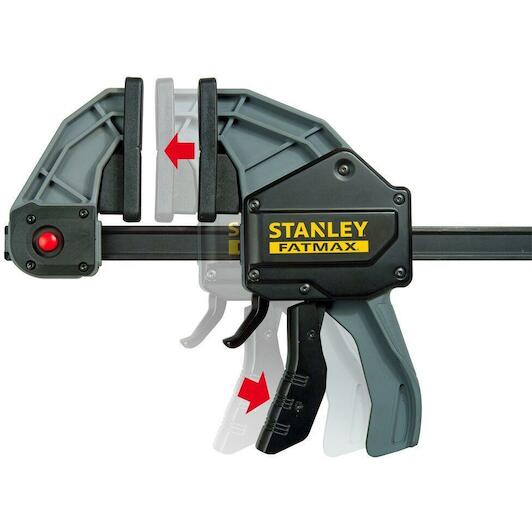

High clamping force: A robust clamping force of 2648 N ensures you hold components firmly in place without slippage during heavy work.

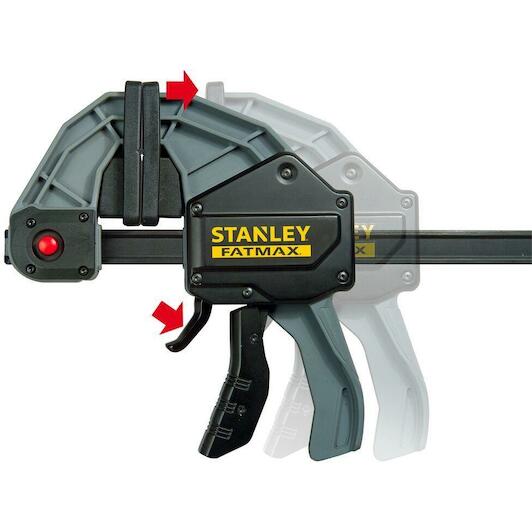

Tool-free conversion to spreading: The reversible jaws with push-button release allow you to quickly switch to a spreader with up to 390 mm capacity.
Protection for delicate workpieces: Removable soft jaw pads distribute pressure evenly across surfaces to prevent unwanted marks or indentation on your materials.

In a nutshell

The right choise for

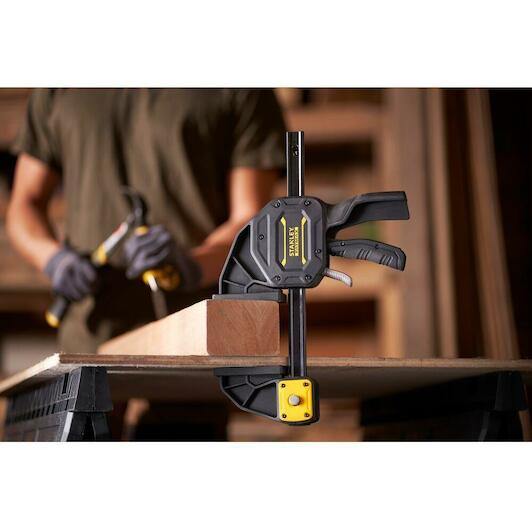

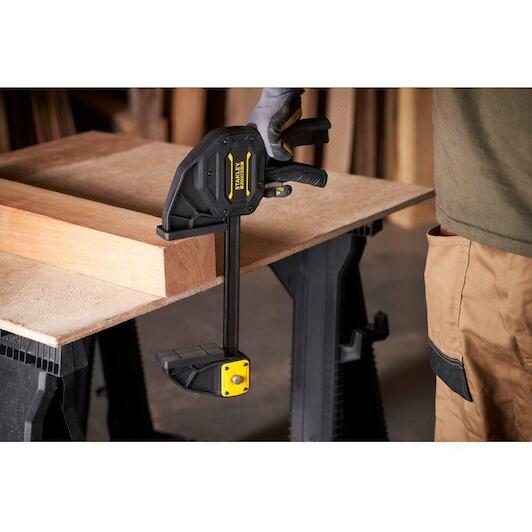

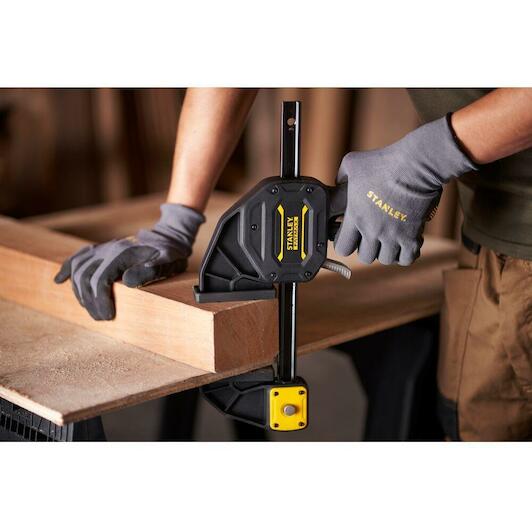

With the Stanley Fatmax XL trigger clamp FMHT0-83238, you secure workpieces quickly, firmly, and effortlessly with one hand. Delivering a robust clamping force of 2648 n and a 90 mm throat depth, it holds materials up to 150 mm securely in place during cutting, routing, or glue-ups. When you need to push panels or frames apart, the push-button mechanism lets you convert the tool into a spreader with a capacity of up to 390 mm without extra tools. The removable soft jaw pads distribute pressure evenly, preventing unwanted marks and keeping delicate surfaces fully protected.

Product information FAQ

€27.20

tax incl.

Key features according to our expert

Max. clamping height: 150 mm
Depth: 90 mm
Clamping tool handle type: Lever
Clamping force: 2648 N
Max. spreading capacity: 390 mm
Product Range: Stanley Fatmax

Product description

FATMAX One-hand Clamp XL - 150mm

Features

Steel I-section from 150mm-1250mm as 'spine'
Reversible jaws with push-button release* for quick conversion to spreader pliers
Removable soft jaws for even pressure when holding or gluing
Moulded ergonomic release trigger to release the strong clamping force
Handle with strong leverage and steel core for high clamping force**
Durable resin body for strength - prevents the clamp from slipping
Reversible jaws with push-button release** to quickly switch to spreader pliers
Moulded ergonomic release to release the strong clamping force
Handle with strong leverage and steel core for high clamping force
Steel I-profile as 'backbone

All Features

Max. clamping height: 150 mm
Depth: 90 mm
Clamping tool handle type: Lever
Clamping force: 2648 N
Max. spreading capacity: 390 mm
Length: 410 mm
Spreading capacity: 220 - 390 mm
Clamping capacity: 150 mm
Throat depth: 90 mm
Product range: Stanley Fatmax

Brand STANLEY
02874571
EAN 3253560832384
Supplier number STANLEY FMHT0-83238

Frequently asked questions about this product

Answered by specialists

What is the maximum clamping capacity of this clamp?: The maximum clamping capacity is 150 mm.
What clamping force does the Stanley Fatmax FMHT0-83238 deliver?: The trigger lever delivers a sustained clamping force of 2648 N (270 kg).
Can this clamp also be used as a spreader?: Yes, the reversible jaw converts tool-free via a push button for a spreading capacity up to 390 mm.
What is the throat depth of this clamp?: The throat depth is 90 mm.
Will the clamping jaws damage delicate workpieces?: No, the removable soft jaw pads prevent marking and scratching on your workpiece.
