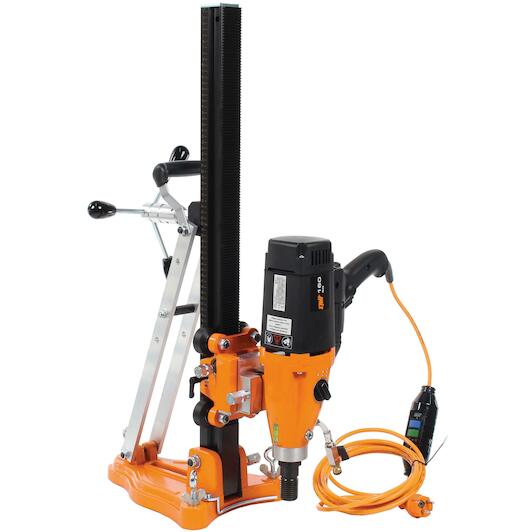

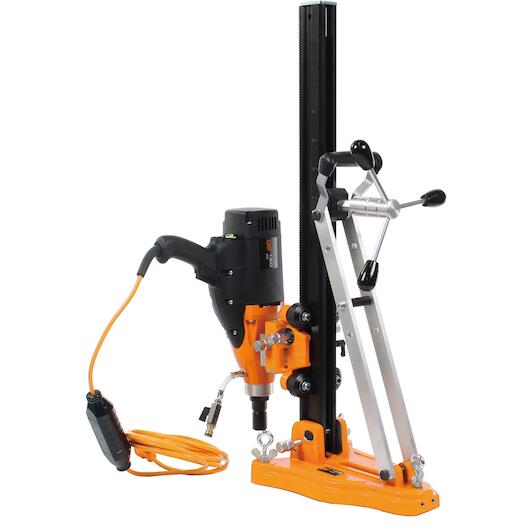

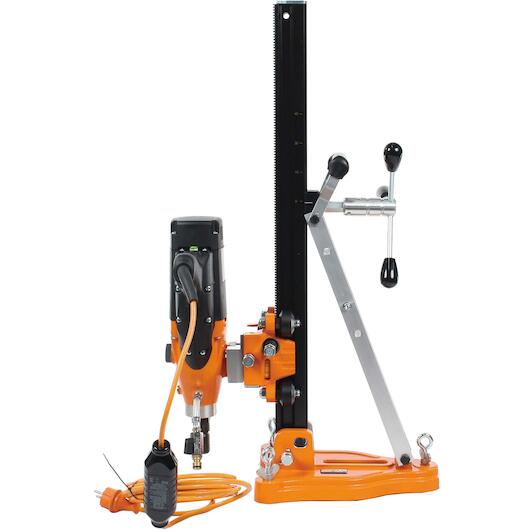

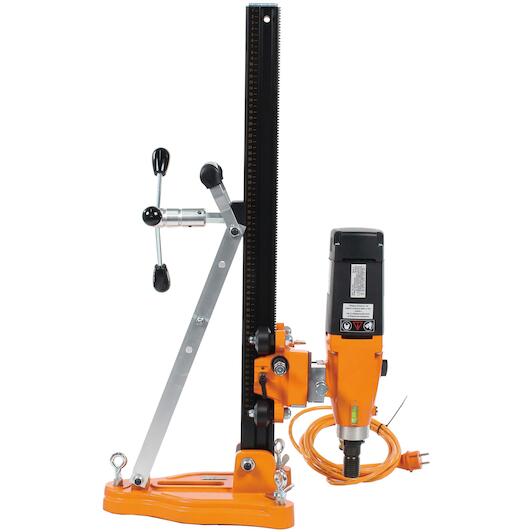

SPIT SD 160 dry/wet diamond drill with tripod TRIX 160P toolbox in case - 624054

Name: SPIT SD 160 dry/wet diamond drill with tripod TRIX 160P toolbox in case - 624054
Brand: SPIT
SKU: 02371161
Price: 3008.03 EUR
Availability: InStock

Supplier number: SPIT 624054 | EAN 3439516240544

3,008.03 tax incl.

€2,485.97 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

set

Ordered before 20:00 - delivered tomorrow 30/09/2026
Free shipping
Delivery by DHL
Up to 5 years warranty on Spit after successful registration!

↓ Documents (1) ✆ Talk to a specialist

Perfect combination

LUMX GALAXY LED worklight 4950 lumens black/blue - LM 32245

84.19

€69.58 excl. VAT

Delivery time average 4 days.

High performance diamond core drilling system

Practical benefits

Spit SD 160 drill set: You tackle tough reinforced concrete up to 182 mm with ease using the powerful 2000W motor and rigid drilling stand.
Versatile wet dry drilling: You match the optimal speed to every core diameter using three mechanical gears designed for wet and dry applications.
Stable rig mounted operation: The included TRIX 160P stand ensures precise, effortless alignment and high stability during demanding continuous drilling tasks.

In a nutshell

The right choise for

Tackle challenging core drilling jobs in dense masonry and reinforced concrete up to 182 mm with the Spit sd 160 diamond core drill. Driven by a powerful 2000 w motor, its three-speed gearbox delivers the exact speed required for every bit diameter. Operate it handheld using the ergonomic pistol grip for versatile drilling, or secure it to the included trix 160P rig for precise, stable, and fatigue-free heavy-duty drilling. Featuring dual 1/2" bspp and 1 1/4" unc tool connections for wet and dry drilling applications, this complete set delivers clean, breakout-free penetrations for pipework and ducting every single time.

Product information FAQ

€3,008.03

In stock - tax incl.

Key features according to our expert

Input power: 2000 W
Drilling method: Wet
Max. drilling diameter (concrete): 182 mm
Supplied in: Case
With drill stand: Yes
Weight: 6,7 kg
Shape (handle): Pistol
Thread type (tool holder): BSPP; UNC
Tool holder type: Internal thread; External thread
Tool holder size: 1/2"; 1 1/4"

Scope of delivery

Diamond core drill SD 160
Tripod TRIX 160

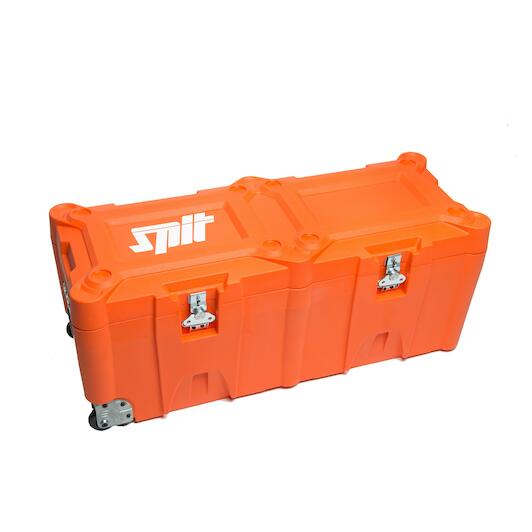

Diamond tool box
Centring pin and adjustable handle
Sharpening stone

Product description

DRY/WET CORE DRILLING MOTOR UP TO D160 MM WITH STAND
The most flexible tool for core drilling up to 160 mm
Powerful 2000 W motor for drilling in reinforced concrete
2 connections: 1/2" & 1 1/4"
3 speeds for different drilling diameters
By hand or with drill stand
2 integrated spirit levels for horizontal and vertical drilling
Light indicator to control drilling pressure

Documents

⤓ Declaration of Conformity PDF

All Features

Input power: 2000 W
Drilling method: Wet
Max. drilling diameter (concrete): 182 mm
Supplied in: Case
With drill stand: Yes
Weight: 6,7 kg
Shape (handle): Pistol
Thread type (tool holder): BSPP; UNC
Tool holder type: Internal thread; External thread
Tool holder size: 1/2"; 1 1/4"
Max. drill ø wet use: 161 mm
Vibration (en 60745) k=1: 2.5 m/s²
Max. drill ø dry use: 181 mm
1st gear: 660 rpm
Min. drill ø wet use: 14 mm
Max. recommended ø wet (out of hand): 81 mm
Recommended diameter dry: 132 mm
Recommended diameter wet: 131 mm
Min. drill ø dry use: 31 mm
Cable length: 5 m
3rd gear: 3300 rpm
Power: 2000 W
2nd gear: 1550 rpm
Connection: 1 1/4", 1/2"
Health and safety: Eye protection, Gloves, Hearing protection, Helmet

Brand SPIT
02371161
EAN 3439516240544
Supplier number SPIT 624054
Warranty Up to 5 years warranty on Spit after successful registration!

Frequently asked questions about this product

Answered by specialists

Which drilling methods are supported by the Spit SD 160?: This 2000 W motor is suitable for both wet and dry core drilling in reinforced concrete and masonry, either handheld or on the included TRIX 160 rig.
What tool connection does the machine feature?: The drill spindle features a dual connection with a 1/2" female thread (BSPP) and a 1 1/4" male thread (UNC).
What is the maximum drilling diameter in concrete?: The maximum core drilling diameter in concrete is 182 mm.
What is included in this set?: You receive the SD 160 core drill, the TRIX 160 drill rig, a toolbox case, a centring pin, an adjustable handle, and a sharpening stone.
How many gear speeds does the SD 160 have?: The machine features a 3-speed gearbox to match the spindle speed to the core drill diameter.
