Which base materials is this screw suitable for?

It is designed specifically for fast fixing into aerated concrete (autoclaved aerated concrete) and porous substrates.

Is pre-drilling required for installation?

Thanks to the special thread design, you can install it quickly with or without pre-drilling.

What is the maximum fixture thickness for this 10x160 mm screw?

The maximum fixture thickness (clamping thickness) is 60 mm.

Can you install this screw close to edges?

Yes, because it creates no expansion pressure, you can safely set it close to edges without cracking the material.

Can the Spit ACS CSK screw be removed after installation?

Yes, it is fully removable without damaging the surrounding base material.

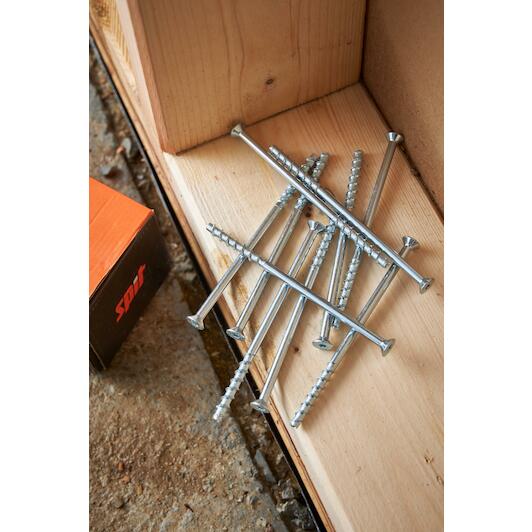

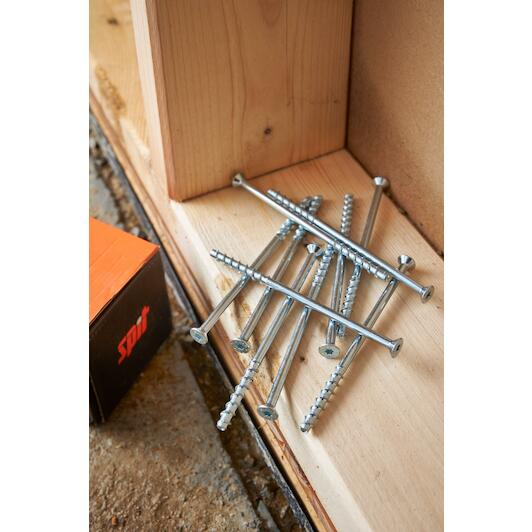

SPIT 697604 ACS CSK gas concrete screw with countersunk head for fastening in aerated concrete or porous material 10x160

Name: SPIT 697604 ACS CSK gas concrete screw with countersunk head for fastening in aerated concrete or porous material 10x160
Brand: SPIT
SKU: 02346472
Price: 1.79 EUR
Availability: InStock

Supplier number: SPIT 697604 | EAN 3439516976047

1.79 tax incl.

€1.48 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 100.

Ordered before 20:00 - delivered tomorrow 03/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Secure anchoring in aerated concrete

Practical benefits

Spit ensures reliable grip: With this Spit screw, you attach timber battens and fixtures securely into porous substrates and aerated concrete without fuss.
Stress-free close edge fixing: The special thread creates no expansion force during insertion, allowing you to fasten safely near edges without cracking material.
Clean and flush finish: Thanks to the countersunk ribbed head, you countersink the screw neatly level with your timber piece for seamless results.

In a nutshell

The right choise for

With the Spit acs csk 10X160 aerated concrete screw, you fasten timber battens and fixtures securely and directly into aerated concrete or porous substrates. There is no need for traditional wall plugs: the specialized thread cuts smoothly into the material with or without pre-drilling. Because it creates zero expansion force during insertion, you can install safely close to block edges without cracking the substrate. The countersunk ribbed head ensures a clean, flush finish for fixtures up to 60 mm thick. Need to adjust your setup? The screw can be fully removed without damaging the surrounding base material. That is how you achieve fast, neat, and reliable fastenings every time.

Product information FAQ

€1.79

In stock - tax incl.

Key features according to our expert

Diameter: 10 mm
Length: 160 mm

Product description

Gas concrete screw with countersunk head for fastening in aerated concrete or porous material
For quick and easy installation in aerated concrete or porous material
Special thread ensures quick and safe installation with and without pre-drilling
Anchor removable without damaging the base material
No expansion, allowing fixing close to edges
Heavy working loads
2 different head types and lengths for different applications
Countersunk ribbed head for flat finish

Applications

Cable ducts
Support
Shelves
Z-profiles
Sandwich panels

All Features

Diameter: 10 mm
Length: 160 mm
Min. edge distance (mm): 100 mm
Product material: Carbon steel
Head type: Countersunk head
Base material colour: BLUE
Min. anchor distance: 100 mm
Anchor diameter: 10.0 mm
Maximum trapping: 60 mm
Bit size: TX 25
Tightening torque: 6 N-m
Min. thickness of base material: 120 mm
Minimum drilling depth: 170 mm
Drill diameter: 4.0 mm
Base material: Aerated concrete
Maximum installation depth: 100 mm
Throughput diameter: 12 mm
Anchor length: 160 mm
Treatment: Galvanised

Brand SPIT
02346472
EAN 3439516976047
Supplier number SPIT 697604

Frequently asked questions about this product

Answered by specialists

Which base materials is this screw suitable for?: It is designed specifically for fast fixing into aerated concrete (autoclaved aerated concrete) and porous substrates.
Is pre-drilling required for installation?: Thanks to the special thread design, you can install it quickly with or without pre-drilling.
What is the maximum fixture thickness for this 10x160 mm screw?: The maximum fixture thickness (clamping thickness) is 60 mm.
Can you install this screw close to edges?: Yes, because it creates no expansion pressure, you can safely set it close to edges without cracking the material.
Can the Spit ACS CSK screw be removed after installation?: Yes, it is fully removable without damaging the surrounding base material.
