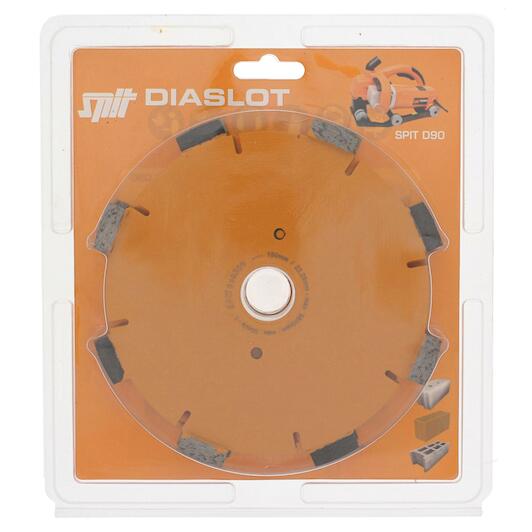

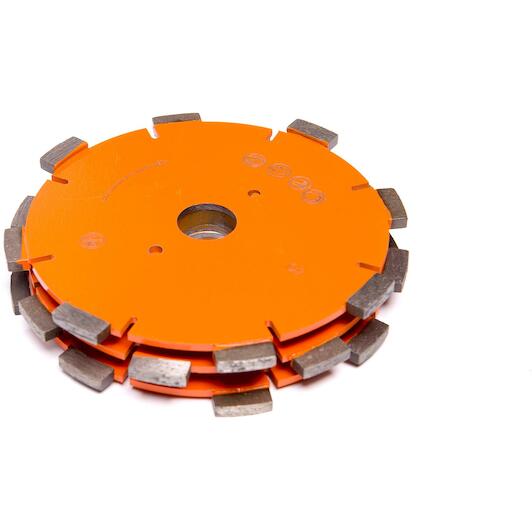

SPIT 610290 slide lock triple diamond blade 150mm (slot width 8, 18, 30mm)

Name: SPIT 610290 slide lock triple diamond blade 150mm (slot width 8, 18, 30mm)
Brand: SPIT
SKU: 02465160
Price: 534.6 EUR
Availability: PreOrder

Supplier number: SPIT 610290 | EAN 3439516102903

Recommended Retail Price €828.20

534.60 tax incl.

€441.82 excl. VAT (incl. all environmental contributions)

On order: delivered from 03/10/2026

Ordered before 20:00 - delivered as of 03/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Fast one-step chasing in masonry

Practical benefits

Complete slots without chiselling: You cut fully cleared chases in a single pass without breaking out remaining material.
Three adjustable slot widths: You easily adapt to your installation needs with slot widths of 8, 18, or 30 mm.
High Spit cutting capacity: The 150 mm blade cuts up to 35 mm deep into masonry and limestone.

In a nutshell

The right choise for

With the Spit 610290 Diaslot triple diamond blade, you cut clean, finished channels in a single pass without any time-consuming chiselling. Designed for use with the Spit D90 wall chaser, it clears the slot completely in sand-lime brick, brick, and masonry. You easily adapt your work to different pipe sizes with adjustable widths of 8, 18, or 30 mm and a cutting depth up to 35 mm. This 150 mm diamond blade with a 22.2 mm bore saves you valuable time during installation, renovation, and new build projects.

Product information FAQ

€534.60

tax incl.

Key features according to our expert

(Disc) diameter: 150 mm
Connection size (disc): 22,2 mm
(Disc) attachment: Bore hole
Application (disc): Cutting
For material: Construction materials

Product description

TRIPLE DIAMOND BLADE D150 MM FOR ONE-STEP SLOT CUTTING
Time-saving discs for trenching
One-step trenching without the need for cleaning
Adjustable widths
Depths of up to 35 mm in limestone, masonry and hollow brick
Specially developed for use with the D90

Applications

Cutting grooves for electrical pipes or cables.
Cutting slots for small water or gas pipes.

All Features

(disc) diameter: 150 mm
Connection size (disc): 22,2 mm
(disc) attachment: Bore hole
Application (disc): Cutting
For material: Construction materials
Diameter: 150.0 mm
Connection: 22.2
Base material: Solid brick, Sand-lime brick, Solid blocks, Stone

Brand SPIT
02465160
EAN 3439516102903
Supplier number SPIT 610290

Frequently asked questions about this product

Answered by specialists

Which wall chaser is this blade designed for?: This diamond blade is specially developed for use with the Spit D90 wall chaser.
What slot widths can you cut with this blade?: This triple blade cuts channel widths of 8 mm, 18 mm, and 30 mm.
What is the maximum cutting depth in masonry?: You can cut grooves up to a depth of 35 mm in limestone, brick, and masonry.
Do you need to chisel out the slot after cutting?: No, the triple-blade design cuts and cleans out the channel in a single step.
What are the disc diameter and bore size?: The blade has a 150 mm diameter and a standard 22.2 mm bore size.
