Product description
- Universal construction plug with hexagonal head
- Frame anchor especially designed for hollow materials
- ETA-approved for fixings in concrete and masonry

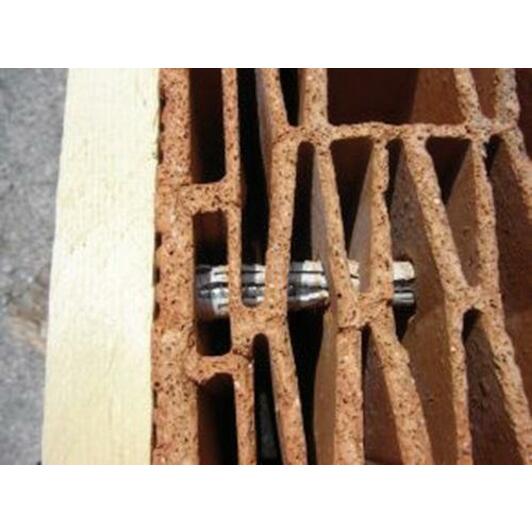

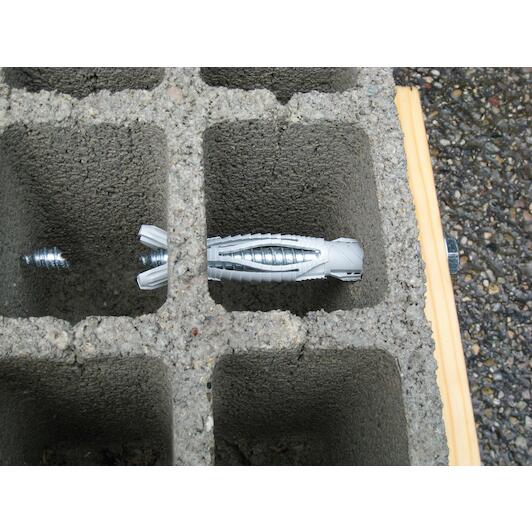

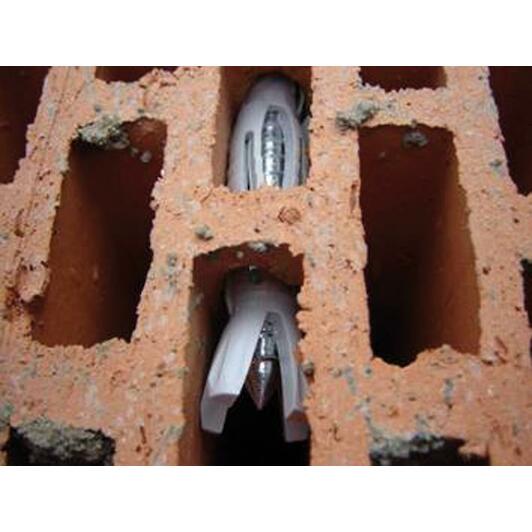

- Unique design of sleeve and spreader element to reach the second cavity for maximum grip in hollow materials
- Different lengths and head types available
- Suitable for use in multiple materials, for a wide range of applications
- Easy to install
Applications
- Windows
- Doors
- Fences
- Timber frame

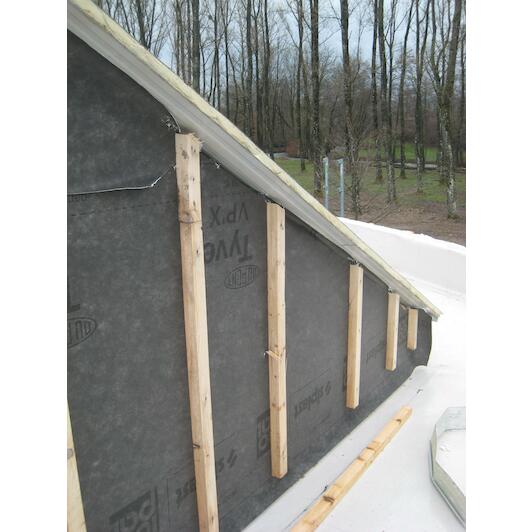

- Cladding

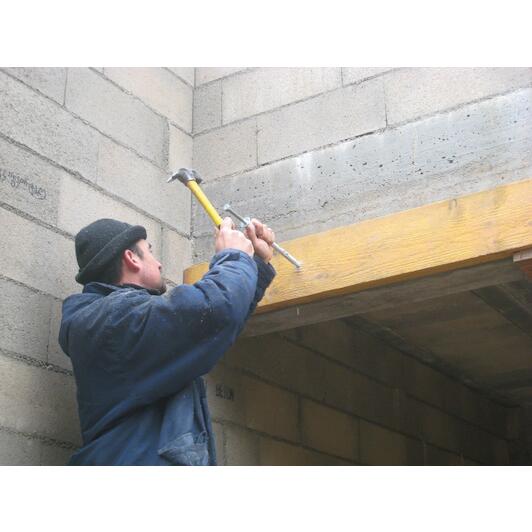

- Frames

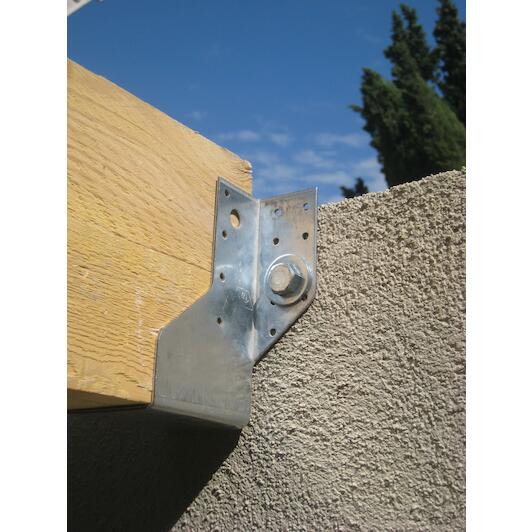

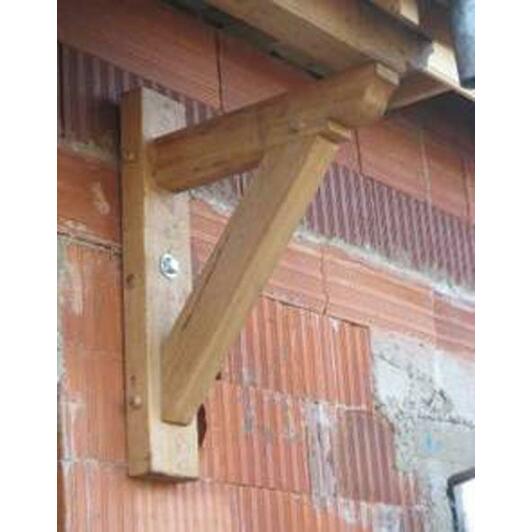

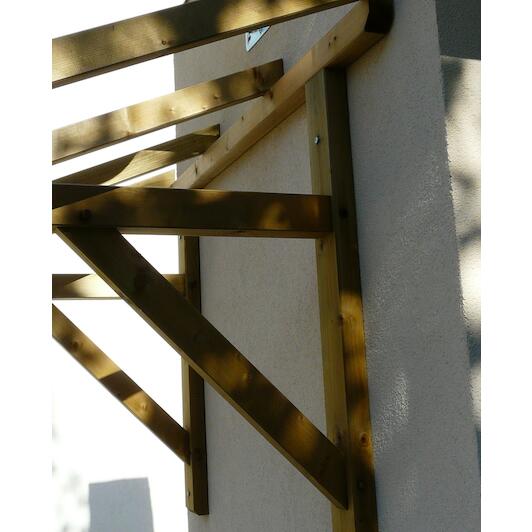

- Beams
Key features according to our expert
-
Length (Wall plug): 120 mm
-
Material (wall plug): Plastic
-
Wall plug type: Hammer-in plug
-
With screw: Yes
-
Application: Brick; Aerated concrete
-
type (screw head): Spanner size 17 mm
-
Drilling diameter: 12 mm
Specifications / All features
-
Brand:
SPIT
-
02469119
-
EAN:
3439515666758
-
Supplier number:
SPIT 566675
- Length (wall plug)
- 120 mm
- Material (wall plug)
- Plastic
- Wall plug type
- Hammer-in plug
- With screw
- Yes
- Application
- Brick; Aerated concrete
- Type (screw head)
- Spanner size 17 mm
- Drilling diameter
- 12 mm
- Maximum trapping
- 50 mm
- Bit size
- SW 17
- Anchoring depth
- 70 mm
- Product material
- Nylon
- Anchor diameter
- 12.0 mm
- Min. anchor distance
- 200 mm
- Base material colour
- PURPLE
- Head type
- Hexagon head
- Min. thickness of base material
- 200 mm
- Tightening torque
- 10 N-m
- Anchor length
- 120 mm
- Minimum drilling depth
- 85 mm
- Drill diameter
- 12.0 mm
- Base material
- Aerated concrete, Hollow blocks, Hollow bricks, Non-cracked concrete, Solid brick
- Maximum installation depth
- 70 mm
- Throughput diameter
- 12 mm
- Key size
- 17.0 mm
- Min. edge distance (mm)
- 105 mm
