Product description

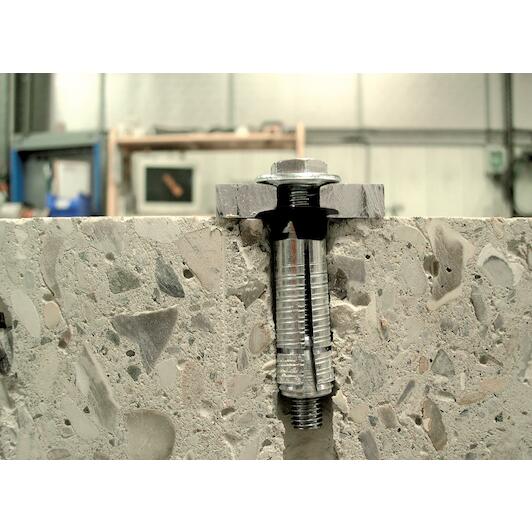

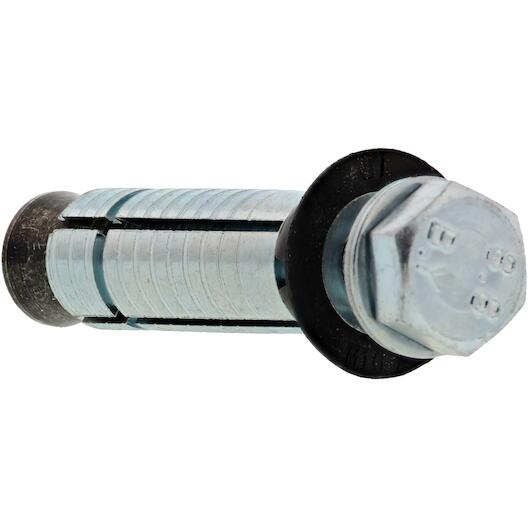

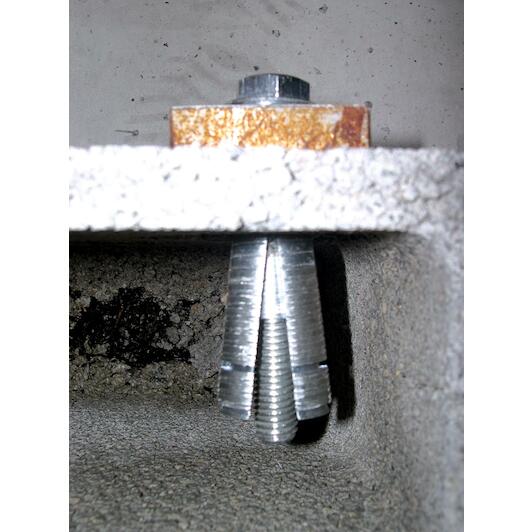

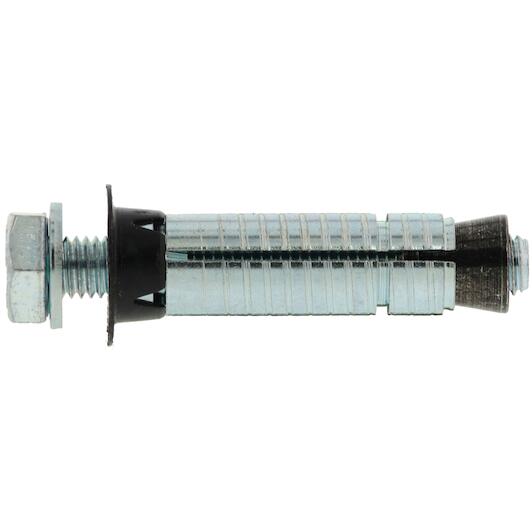

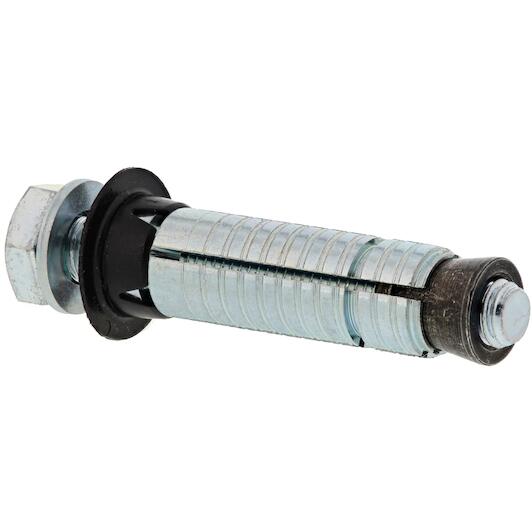

- Metal mechanical anchor with large spread
- Universal demountable metal spread anchor
Applications
- Fastening of industrial doors, roller tracks, facades, fall protection, window cleaning systems
Key features according to our expert
-
Wire dimension: 10 mm
-
Overall length: 90 mm
-
Material: Steel
-
Surface treatment: Zinc plated
-
Safety anchor: No
-
Drilling diameter: 16 mm
Specifications / All features
-
Brand:
SPIT
-
02345655
-
EAN:
3439510736500
-
Supplier number:
SPIT 073650
- Wire dimension
- 10 mm
- Overall length
- 90 mm
- Material
- Steel
- Surface treatment
- Zinc plated
- Safety anchor
- No
- Drilling diameter
- 16 mm
- Minimum wire length
- 90.0 mm
- Maximum trapping
- 25 mm
- Anchor diameter
- 16.0 mm
- Internal thread diameter
- 10.0 mm
- Head type
- Hexagon head
- Min. anchor distance
- 80 mm
- Base material colour
- PURPLE
- Min. thickness of base material
- 100 mm
- Product material
- Carbon steel
- Min. edge distance (mm)
- 60 mm
- Treatment
- Galvanised
- Tightening torque
- 50 N-m
- Maximum installation depth
- 52 mm
- Minimum drilling depth
- 75 mm
- Drill diameter
- 16.0 mm
- Throughput diameter
- 12 mm
- Anchor length
- 90 mm
- Wire diameter
- M10
- Key size
- 17.0 mm
- Anchor screw material
- Steel
