SPIT

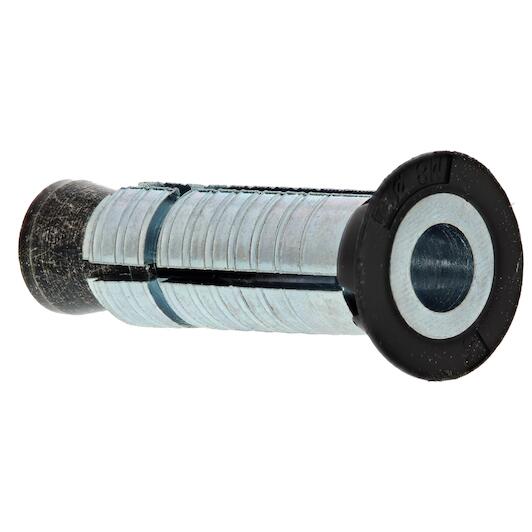

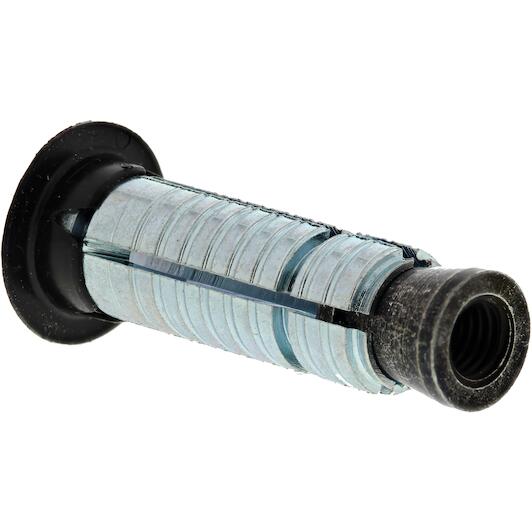

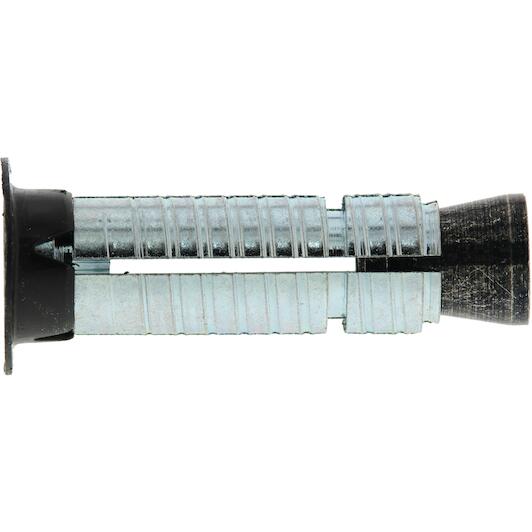

SPIT 073560 PRIMA spread anchor M12x80 d.20 zinc-plated (without bolt)

3.53 tax incl.
€2.92 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

The minimum purchase order quantity for the product is 25.

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

  • Metal mechanical anchor with large spread
  • Metal mechanical anchor with large spread

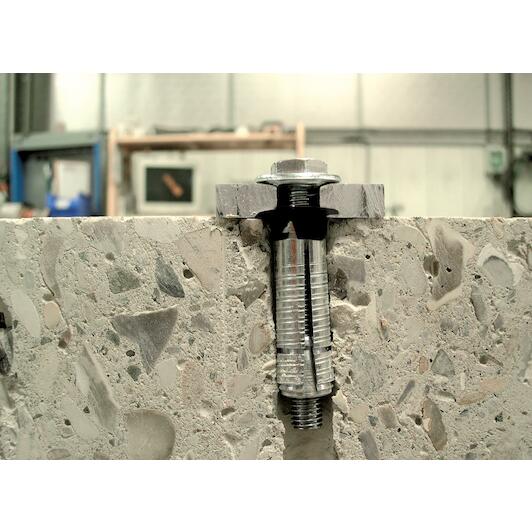

  • 4 long spreading elements for good grip in different materials

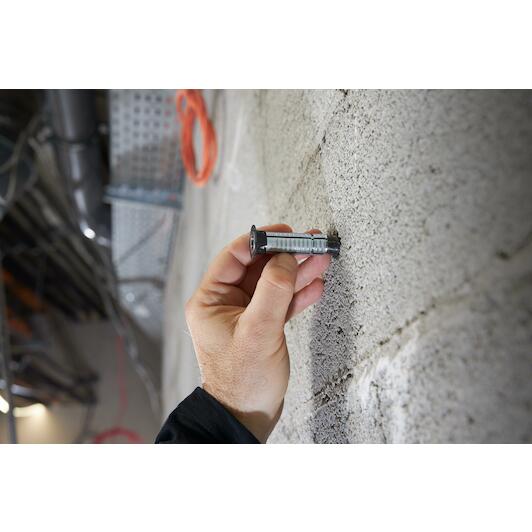

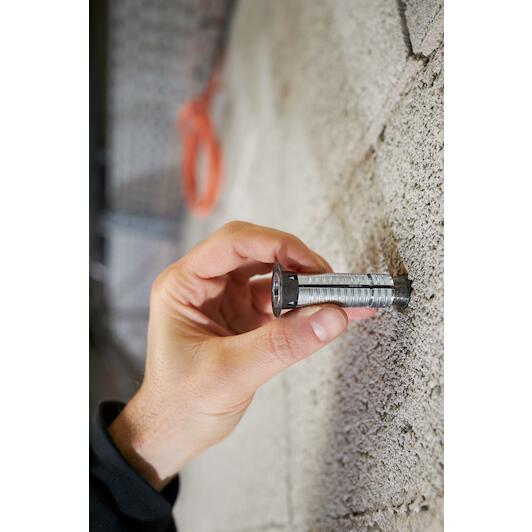

  • Large collar for easy setting in hollow material
  • Taper connected to the sleeve for perfect setting

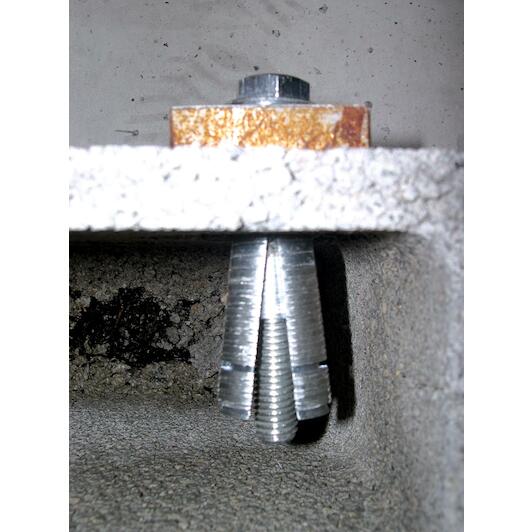

  • Possible alternative to chemical anchoring in hollow materials
  • Variable fixing thickness, available with or without bolt
  • Socotec approval (France)

Applications

  • Industrial doors
  • Hot water cylinder
  • Satellite dish
  • Air conditioning system
  • Canopy
  • Signposting
Key features according to our expert
  • Wire dimension: 12 mm
  • Overall length: 80 mm
  • Material: Steel
  • Surface treatment: Zinc plated
  • Drilling diameter: 20 mm
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510735602
  • Supplier number: SPIT 073560
Wire dimension
12 mm
Overall length
80 mm
Material
Steel
Surface treatment
Zinc plated
Drilling diameter
20 mm
Min. thickness of base material
140 mm
Min. edge distance (mm)
65 mm
Product material
Carbon steel
Head type
Flat head
Base material colour
PURPLE
Min. anchor distance
110 mm
Minimum wire length
80.0 mm
Internal thread diameter
12.0 mm
Anchor diameter
20.0 mm
Tightening torque
80 N-m
Maximum installation depth
62 mm
Minimum drilling depth
90 mm
Drill diameter
20.0 mm
Throughput diameter
14 mm
Anchor length
80 mm
Wire diameter
M12
Treatment
Galvanised
