Product description
- High-performance percussion plug with collar for in all materials INOX A2
- Easy to install for all materials and external applications
- Spreading can be done with hammer or screwdriver
- Dismantling of the screw is possible
- Perfect pressure due to flat collar
- Very good performance in hollow materials
- Flat finish due to countersunk head

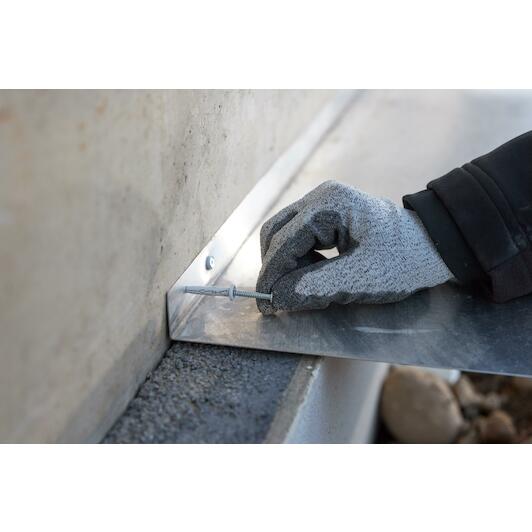

- Large collar for covering slop hole in metal frame corner
Applications
- Fastening of MetalStud®, electrical accessories, wood, frame corners, cleats, etc.
Key features according to our expert
-
With screw: Yes
-
Drilling diameter: 6 mm
-
Application: Brick; Aerated concrete
-
With collar: Yes
-
type (screw head): PZ2
-
Wall plug type: Hammer-in plug
-
Material (wall plug): Plastic
-
Length (Wall plug): 67 mm
Specifications / All features
-
Brand:
SPIT
-
02697381
-
EAN:
3439510601068
-
Supplier number:
SPIT 060106
- With screw
- Yes
- Drilling diameter
- 6 mm
- Application
- Brick; Aerated concrete
- With collar
- Yes
- Type (screw head)
- PZ2
- Wall plug type
- Hammer-in plug
- Material (wall plug)
- Plastic
- Length (wall plug)
- 67 mm
- Min. thickness of base material
- 100 mm
- Product material
- Nylon
- Head type
- Flat head
- Base material colour
- PURPLE
- Min. anchor distance
- 100 mm
- Anchor diameter
- 6.0 mm
- Maximum trapping
- 40 mm
- Anchoring depth
- 25 mm
- Bit size
- PZ 2
- Head diameter
- 11.0 mm
- Minimum drilling depth
- 35 mm
- Drill diameter
- 6.0 mm
- Maximum installation depth
- 25 mm
- Throughput diameter
- 6 mm
- Anchor length
- 67 mm
- Min. edge distance (mm)
- 100 mm
