SPIT 060090 dowel with collar HIT M 8x40/10 P

Name: SPIT 060090 dowel with collar HIT M 8x40/10 P
Brand: SPIT
SKU: 02607670
Price: 0.21 EUR
Availability: InStock

Supplier number: SPIT 060090 | EAN 3439510600900

0.21 tax incl.

€0.17 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered tomorrow 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

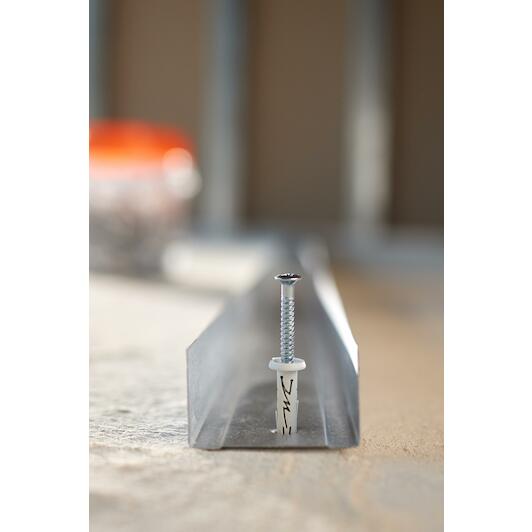

Rapid fastening with Spit HIT M

Practical benefits

Fast hammer in installation: You drive the fixing directly with a hammer, significantly reducing installation time on repetitive tasks.
Secure clamping with collar: The flat lipped head holds fixtures tightly against the base material and prevents over-insertion.

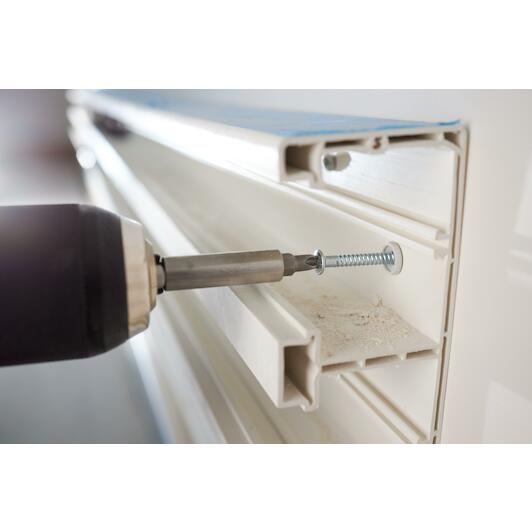

Easy removal when needed: The PZ2 screw head allows you to unscrew the nail easily whenever adjustments are required.

In a nutshell

The right choise for

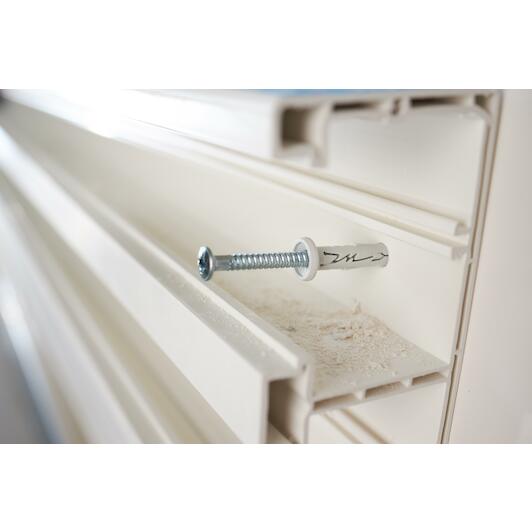

With the Spit hit M hammer-in plug with collar, you achieve fast and dependable fixings in substrates such as brick and aerated concrete. You simply drive the plastic plug and its included screw directly into an 8 mm pre-drilled hole with a hammer, saving valuable time on repetitive mounting tasks. The flat collar prevents the plug from sinking too deeply into the base material while ensuring a firm clamp on your fixture. If you ever need to adjust or dismantle the installation, the integrated PZ2 drive makes it easy to unscrew the nail.

Product information FAQ

€0.21

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 42 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
type (screw head): PZ2
Drilling diameter: 8 mm

Product description

High-performance percussion plug with collar for in all materials
Easy to install and suitable for all materials
CE certified percussion plug
Spreading through hammer blows
Perfect pressure due to flat collar
Very good performance in hollow materials
Flat finish due to countersunk head
Available with large collar (Hit M-P20)

Applications

Electrical installations
Metal stud profile
Beams and rafters
Signalling
Insulation supports
Skirting boards

Documents

⤓ Declaration of Conformity PDF

All Features

Length (wall plug): 42 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
Type (screw head): PZ2
Drilling diameter: 8 mm
Maximum trapping: 10 mm
Bit size: PZ 2
Anchoring depth: 30 mm
Product material: Nylon
Anchor diameter: 8.0 mm
Min. anchor distance: 100 mm
Base material colour: PURPLE
Head type: Flat head
Minimum drilling depth: 40 mm
Min. thickness of base material: 100 mm
Surface treatment: Galvanised
Drill diameter: 8.0 mm
Maximum installation depth: 30 mm
Throughput diameter: 8 mm
Anchor length: 42 mm
Head diameter: 13.0 mm
Min. edge distance (mm): 100 mm

Brand SPIT
02607670
EAN 3439510600900
Supplier number SPIT 060090

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this hammer-in plug?: You need to use an 8 mm diameter drill bit.
Is the plug supplied with a screw?: Yes, the hammer-in plug comes complete with a matching screw.
What drive type does the supplied screw have?: The screw features a PZ2 drive, allowing easy tightening or removal when needed.
Which base materials is this plug suitable for?: It is suitable for solid and hollow substrates, including brick and aerated concrete.
What is the purpose of the plug collar?: The flat collar ensures firm clamping on the fixture and prevents the plug from sinking into the hole.
