SPIT

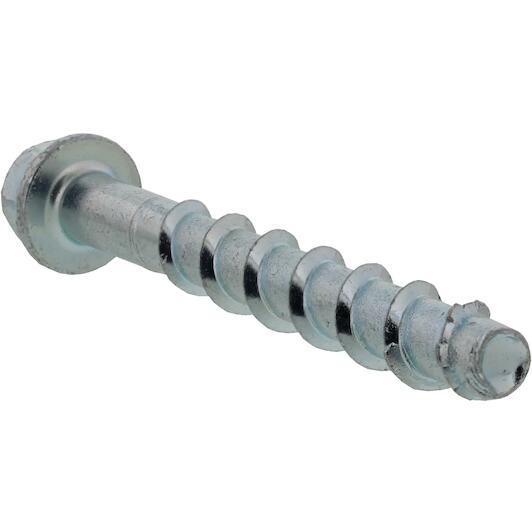

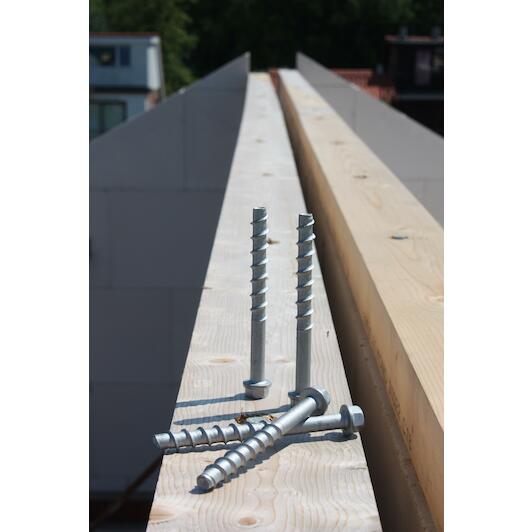

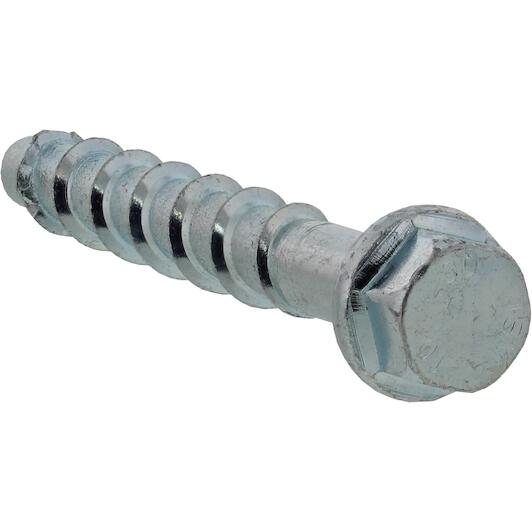

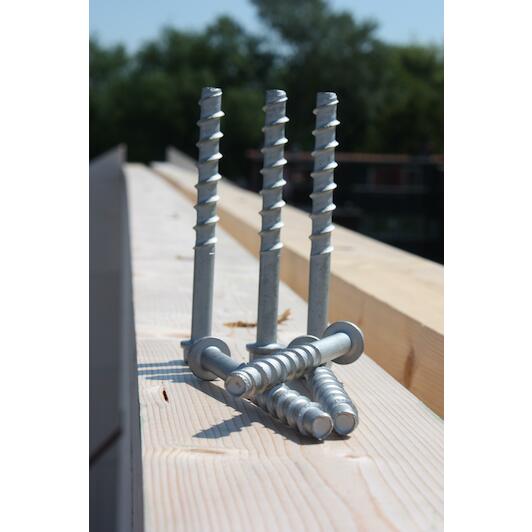

SPIT 058768 TAPCON XTREM HFL concrete screw 14x130/55-15

6.51 tax incl.
€5.38 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

The minimum purchase order quantity for the product is 25.

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Self-tapping screw with hexagonal head for fastening in cracked and non-cracked concrete and for seismic applications
  • ETA seismically approved, fire tested, leading concrete anchor with excellent performance
  • The full ETA Option 1 range can be used in cracked and non-cracked concrete
  • TAPCON XTREM range for use in C1 seismic zones
  • Fire certificate
  • Longer effective thread ensures the best performance on the market
  • New patented thread design for easy installation
  • Adjustable plug for situations requiring alignment without loss of performance
  • Removable anchor for temporary fixing
  • Wide choice of drill diameters, heads and lengths
  • Removable anchor for temporary fixing
  • 3 anchoring depths for Ø8 to Ø14

Applications

  • Pipes

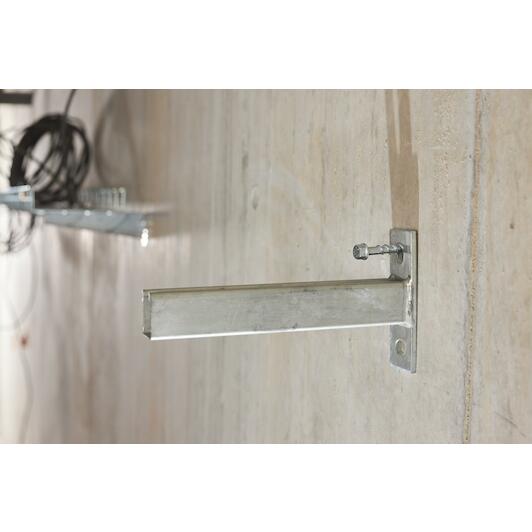

  • Suspended elements on ceiling or wall
  • Pull and pressure braces
  • Suspended ceiling
  • Temporary fixings
  • Scaffolding
  • Signposting
  • Safety barriers
  • Stadium seating
  • Pallet racks
  • Mechanical and electrical installations

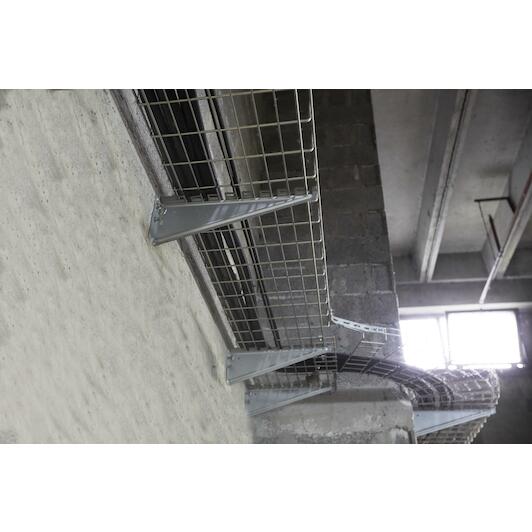

  • Cable ducts
  • Window frames
  • Railings
  • HVAC
Key features according to our expert
  • Diameter: 14 mm
  • Max. useful length: 130 mm
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510587683
  • Supplier number: SPIT 058768
Diameter
14 mm
Max. useful length
130 mm
Min. edge distance (mm)
50 mm
Product material
Carbon steel
Head type
Hexagon head
Base material colour
GREY
Min. anchor distance
50 mm
Anchor diameter
14.0 mm
Maximum trapping
55 mm
Min. thickness of base material
130 mm
Minimum drilling depth
85 mm
Drill diameter
14.0 mm
Minimum placement depth
75.0 mm
Base material
Cracked concrete, Non-cracked concrete
Maximum installation depth
115 mm
Throughput diameter
18 mm
Anchor length
130 mm
Key size
21.0 mm
Treatment
Galvanised
