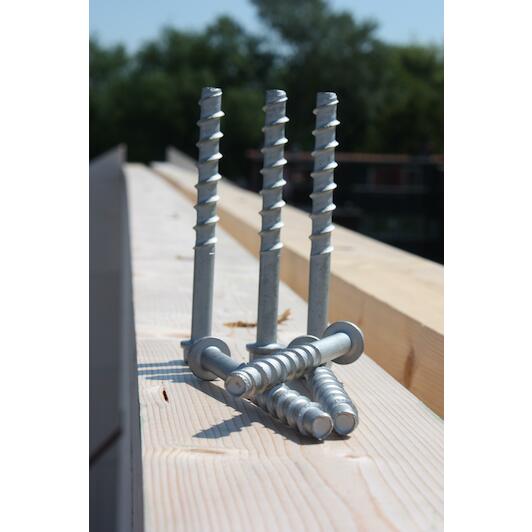

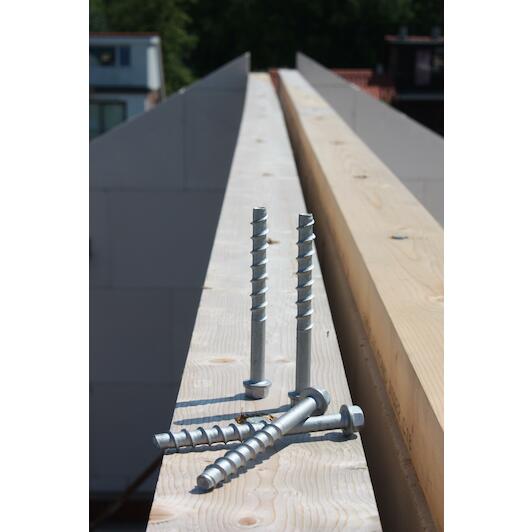

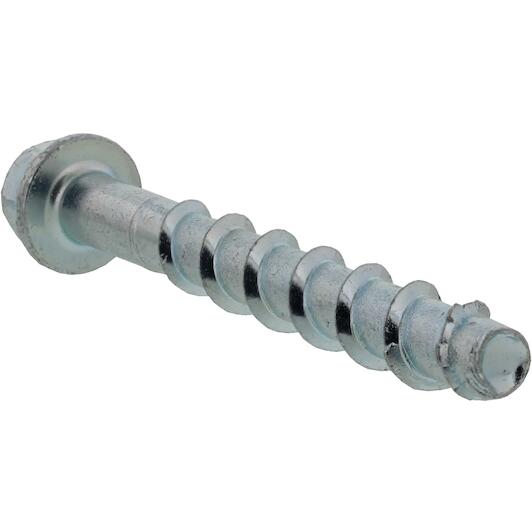

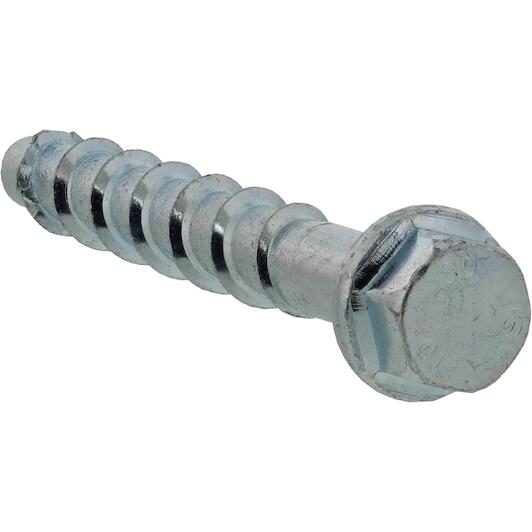

SPIT 058744 TAPCON XTREM HFL concrete screw 10x120/65-35

SPIT
Supplier number: SPIT 058744 | EAN 3439510587447
1.97 tax incl.
€1.63 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

The minimum purchase order quantity for the product is 50.

  • Ordered before 20:00 - delivered as of 10/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
✆ Talk to a specialist


Product information
€1.97
tax incl.

Product information

Key features according to our expert

  • Diameter: 10 mm
  • Max. useful length: 120 mm

Product description

  • Self-tapping screw with hexagonal head for fastening in cracked and non-cracked concrete and for seismic applications
  • ETA seismically approved, fire tested, leading concrete anchor with excellent performance
  • The full ETA Option 1 range can be used in cracked and non-cracked concrete
  • TAPCON XTREM range for use in C1 seismic zones
  • Fire certificate
  • Longer effective thread ensures the best performance on the market
  • New patented thread design for easy installation
  • Adjustable plug for situations requiring alignment without loss of performance
  • Removable anchor for temporary fixing
  • Wide choice of drill diameters, heads and lengths
  • Removable anchor for temporary fixing
  • 3 anchoring depths for Ø8 to Ø14

Applications

  • Pipes
  • Suspended elements on ceiling or wall
  • Pull and pressure braces
  • Suspended ceiling
  • Temporary fixings
  • Scaffolding
  • Signposting
  • Safety barriers
  • Stadium seating
  • Pallet racks

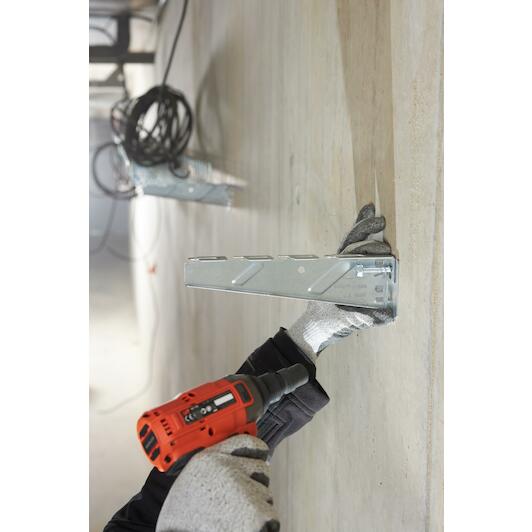

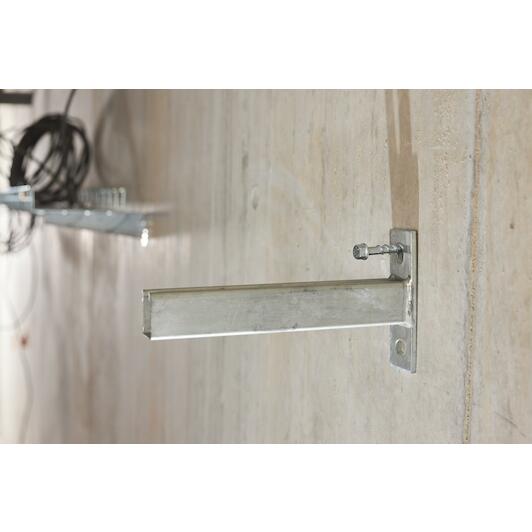

  • Mechanical and electrical installations

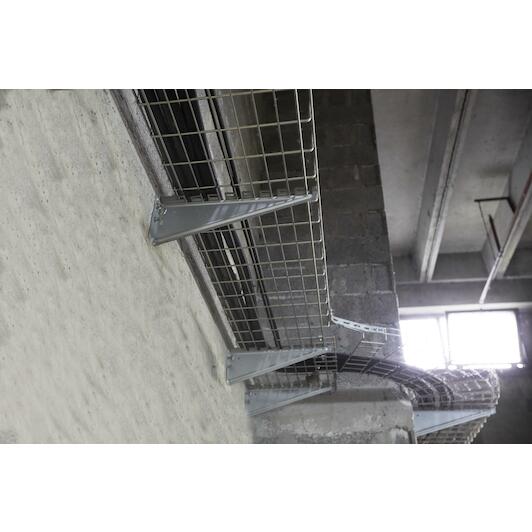

  • Cable ducts

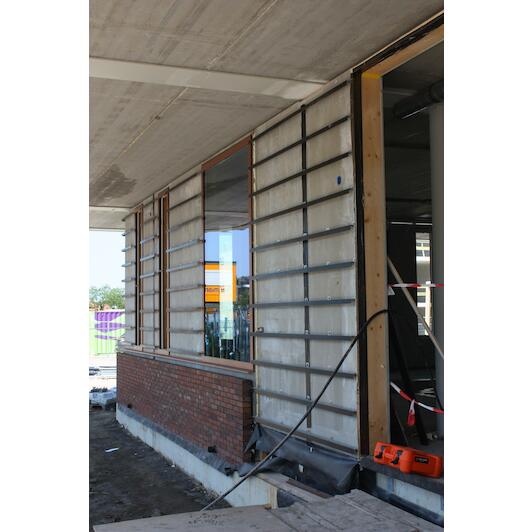

  • Window frames
  • Railings
  • HVAC

All Features

Diameter
10 mm
Max. useful length
120 mm
Min. edge distance (mm)
50 mm
Product material
Carbon steel
Head type
Hexagon head
Base material colour
GREY
Min. anchor distance
50 mm
Anchor diameter
10.0 mm
Maximum trapping
65 mm
Min. thickness of base material
100 mm
Minimum drilling depth
65 mm
Drill diameter
10.0 mm
Minimum placement depth
55.0 mm
Base material
Cracked concrete, Non-cracked concrete
Maximum installation depth
85 mm
Throughput diameter
14 mm
Anchor length
120 mm
Key size
15.0 mm
Treatment
Galvanised
  • Brand SPIT
  • EAN 3439510587447
  • Supplier number SPIT 058744
