Which base materials is this Spit concrete screw suitable for?

You can use it in cracked and non-cracked concrete as well as in seismic applications.

What drill bit diameter is required for installation?

You need to pre-drill a hole with a diameter of 10 mm.

What head type does the Spit Tapcon Xtrem HFL have?

It features a hexagonal head with an integrated washer.

Is this concrete screw removable?

Yes, it is fully removable, making it suitable for temporary fixings.

What protection does the zinc flake coating (ZN) provide?

The special coating provides enhanced corrosion resistance for heavy-duty fixing.

SPIT 058742 TAPCON XTREM HFL concrete screw 10x90/35-5

Name: SPIT 058742 TAPCON XTREM HFL concrete screw 10x90/35-5
Brand: SPIT
SKU: 02757561
Price: 1.71 EUR
Availability: InStock

Supplier number: SPIT 058742 | EAN 3439510587423

1.71 tax incl.

€1.41 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered as of 03/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

High load direct concrete anchoring

Practical benefits

Spit TAPCON XTREM HFL screw: You anchor securely into cracked and non-cracked concrete with excellent holding power for demanding installations.
Fast and effortless installation: The patented thread design ensures you drive the screw smoothly into hard substrates with low resistance.
Easily removable for temporary fixings: You can remove the anchor cleanly whenever you need to adjust temporary structures or site framework.

In a nutshell

The right choise for

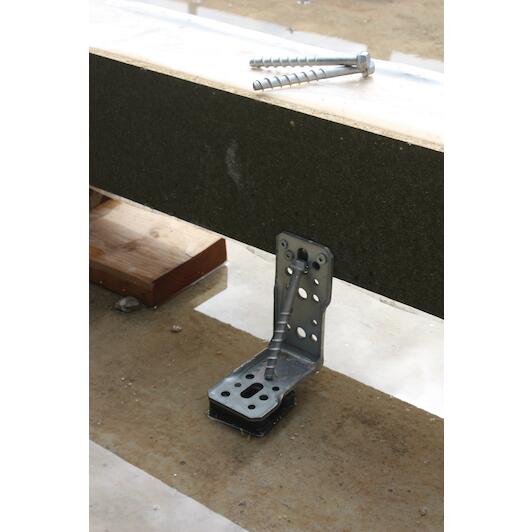

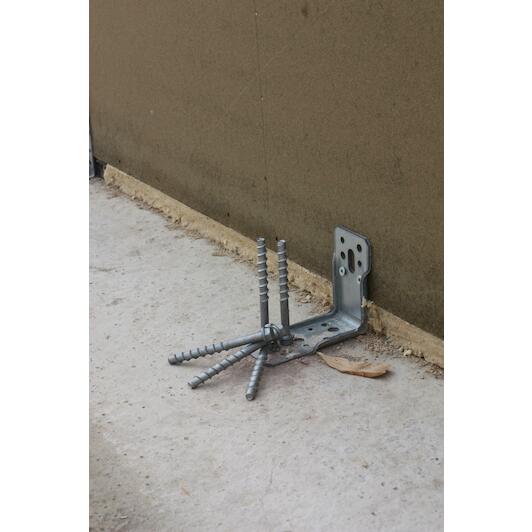

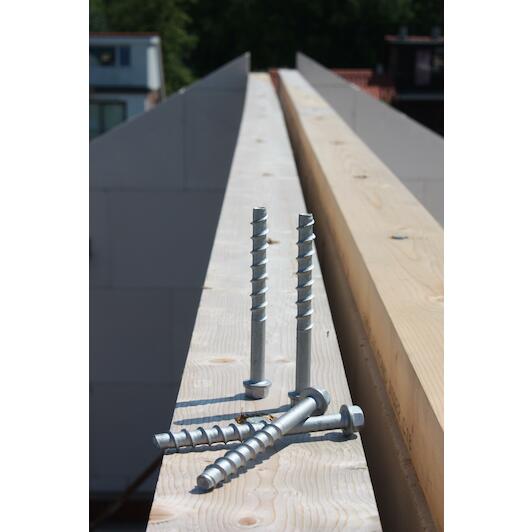

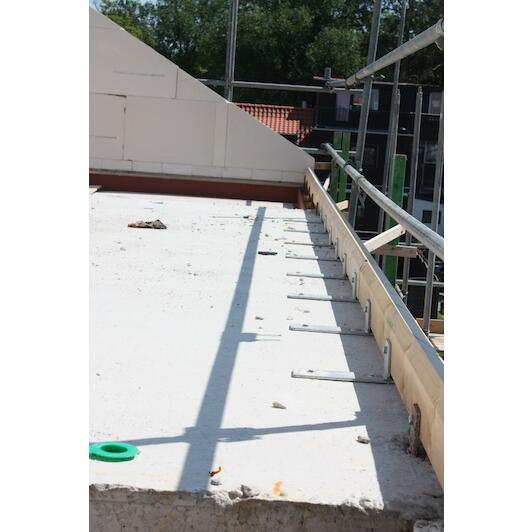

With the Spit Tapcon Xtrem hfl 10X90/35-5 concrete screw, you achieve strong and dependable direct anchoring in cracked and non-cracked concrete. Thanks to the patented thread design, you drive the anchor smoothly into a pre-drilled 10 mm hole without creating expansion pressure or needing separate plastic plugs. This allows for reduced edge distances when installing cable trays, ventilation ducts, pallet racking, or timber baseplates. The hexagonal head with an integrated washer and the protective zinc flake coating ensure a secure clamp and reliable corrosion resistance, even in demanding seismic conditions. When adjusting temporary structures, you can cleanly remove and realign the screw without damaging the substrate.

Product information FAQ

€1.71

In stock - tax incl.

Key features according to our expert

Diameter: 10 mm
Max. useful length: 90 mm

Product description

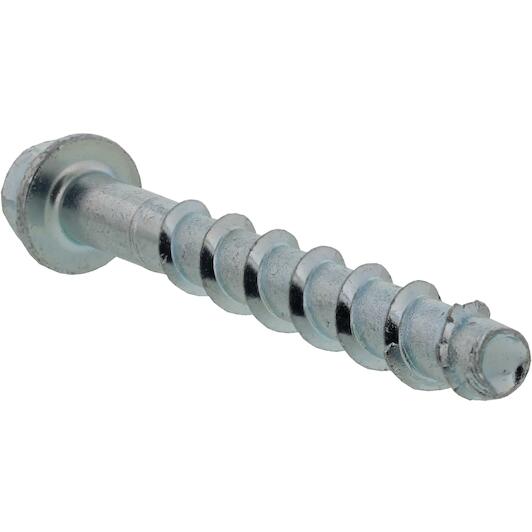

Self-tapping screw with hexagonal head for fastening in cracked and non-cracked concrete and for seismic applications
ETA seismically approved, fire tested, leading concrete anchor with excellent performance
The full ETA Option 1 range can be used in cracked and non-cracked concrete
TAPCON XTREM range for use in C1 seismic zones
Fire certificate
Longer effective thread ensures the best performance on the market
New patented thread design for easy installation
Adjustable plug for situations requiring alignment without loss of performance
Removable anchor for temporary fixing
Wide choice of drill diameters, heads and lengths
Removable anchor for temporary fixing
3 anchoring depths for Ø8 to Ø14

Applications

Pipes

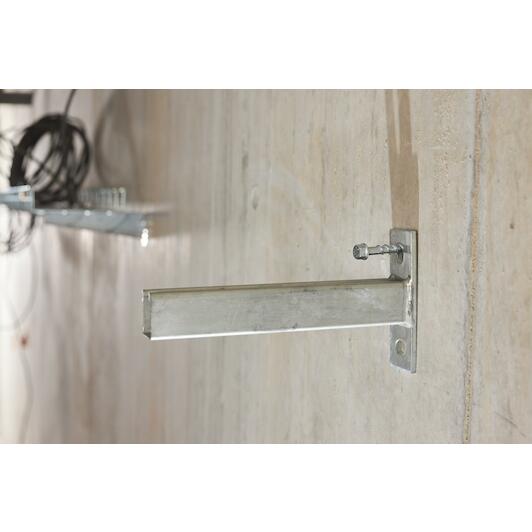

Suspended elements on ceiling or wall
Pull and pressure braces
Suspended ceiling
Temporary fixings
Scaffolding
Signposting
Safety barriers
Stadium seating
Pallet racks

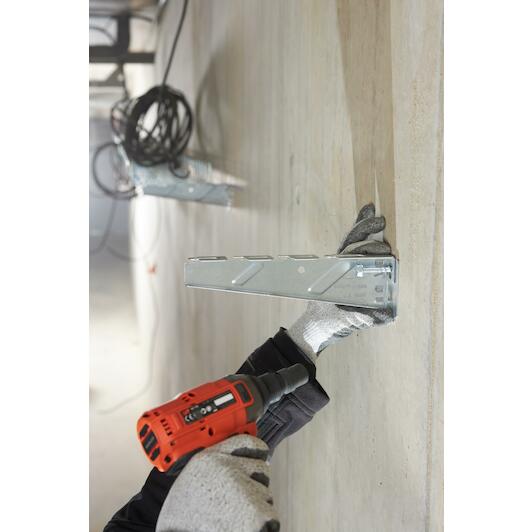

Mechanical and electrical installations

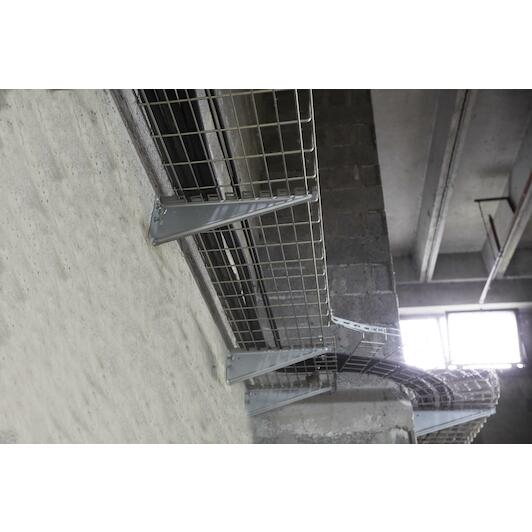

Cable ducts
Window frames
Railings
HVAC

All Features

Diameter: 10 mm
Max. useful length: 90 mm
Min. edge distance (mm): 50 mm
Product material: Carbon steel

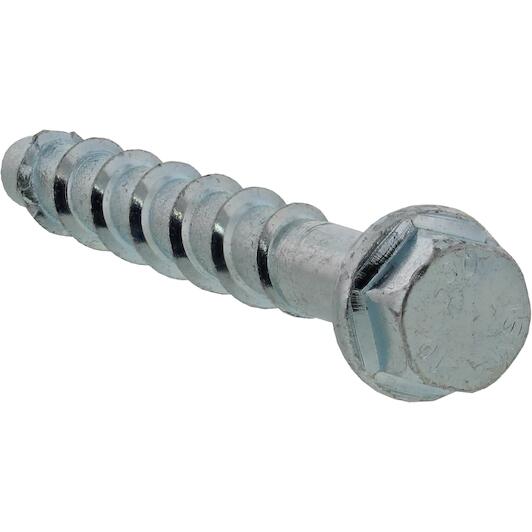

Head type: Hexagon head
Base material colour: GREY
Min. anchor distance: 50 mm
Anchor diameter: 10.0 mm
Maximum trapping: 35 mm
Min. thickness of base material: 100 mm
Minimum drilling depth: 65 mm
Drill diameter: 10.0 mm
Minimum placement depth: 55.0 mm
Base material: Cracked concrete, Non-cracked concrete
Maximum installation depth: 55 mm
Throughput diameter: 14 mm
Anchor length: 90 mm
Key size: 15.0 mm
Treatment: Galvanised

Brand SPIT
02757561
EAN 3439510587423
Supplier number SPIT 058742

Frequently asked questions about this product

Answered by specialists

Which base materials is this Spit concrete screw suitable for?: You can use it in cracked and non-cracked concrete as well as in seismic applications.
What drill bit diameter is required for installation?: You need to pre-drill a hole with a diameter of 10 mm.
What head type does the Spit Tapcon Xtrem HFL have?: It features a hexagonal head with an integrated washer.
Is this concrete screw removable?: Yes, it is fully removable, making it suitable for temporary fixings.
What protection does the zinc flake coating (ZN) provide?: The special coating provides enhanced corrosion resistance for heavy-duty fixing.
