Which base materials is this concrete screw suitable for?

You can use it in cracked and non-cracked concrete as well as for seismic applications.

What drill diameter is required for this screw?

For this Tapcon Xtrem concrete screw, you need to drill a hole with a 10 mm diameter.

What is the maximum fixture thickness for this size?

This 10x60 mm screw provides a maximum fixture thickness of 5 mm for the attached part.

Do you need a plug or anchor sleeve for installation?

No, this is a self-tapping concrete screw that drives directly into the pre-drilled hole.

Can this concrete screw be removed after installation?

Yes, the screw is completely removable, making it suitable for temporary fixings as well.

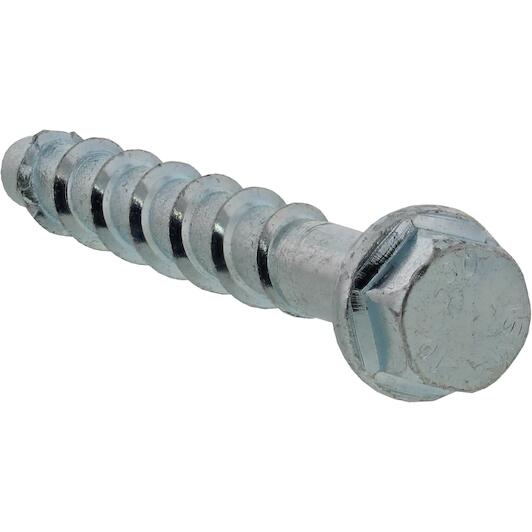

SPIT 058740 TAPCON XTREM HFL concrete screw 10x60/5

Name: SPIT 058740 TAPCON XTREM HFL concrete screw 10x60/5
Brand: SPIT
SKU: 02757554
Price: 1.34 EUR
Availability: InStock

Supplier number: SPIT 058740 | EAN 3439510587409

1.34 tax incl.

€1.11 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered as of 05/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Dependable fastening with Spit Tapcon

Practical benefits

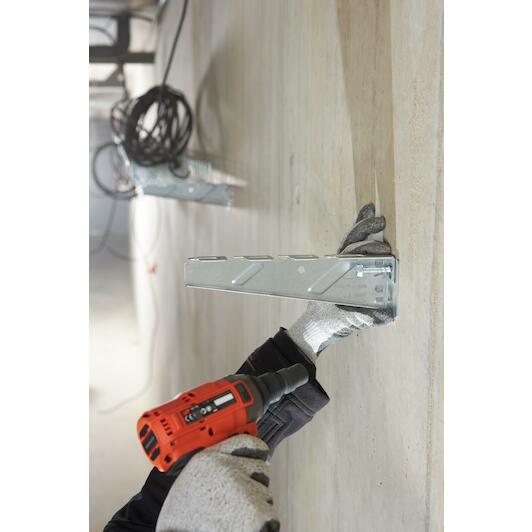

Direct drive into concrete: You drive the screw directly into cracked and non-cracked concrete without plugs for fast and secure installation.
High load-bearing performance: The patented thread design ensures strong grip and reliable holding power in heavy-duty and seismic applications.
Fast and complete removal: You remove the anchor effortlessly, making it an ideal choice for temporary site fixings and adjustments.

In a nutshell

The right choise for

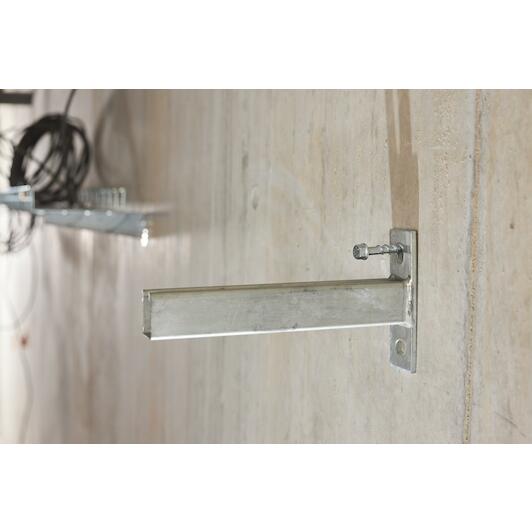

With the Spit Tapcon Xtrem hfl concrete screw 10X60/5, you achieve a strong and reliable anchorage without the need for plastic wall plugs or chemical systems. You drive this self-tapping screw directly into a pre-drilled 10 mm hole in both cracked and non-cracked concrete. The patented thread design ensures exceptional grip, making it suitable for heavy-duty and seismic applications. It is ideal for securing base plates, cable trays, railings, or hvac installations with a fixture thickness of up to 5 mm. When working on temporary jobsite fixtures, this concrete screw can be completely removed without leaving protruding studs behind.

Product information FAQ

€1.34

In stock - tax incl.

Key features according to our expert

Diameter: 10 mm
Max. useful length: 60 mm

Product description

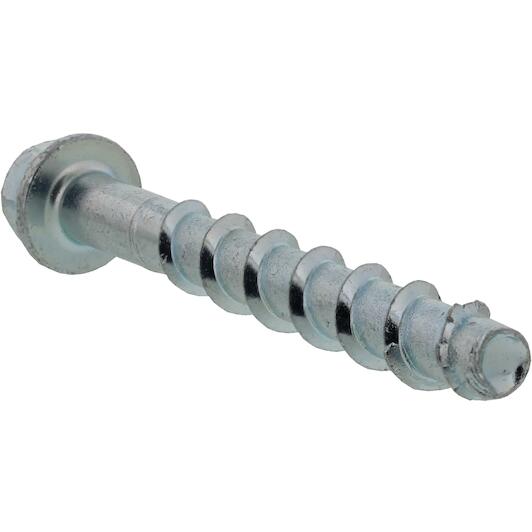

Self-tapping screw with hexagonal head for fastening in cracked and non-cracked concrete and for seismic applications
ETA seismically approved, fire tested, leading concrete anchor with excellent performance
The full ETA Option 1 range can be used in cracked and non-cracked concrete
TAPCON XTREM range for use in C1 seismic zones
Fire certificate
Longer effective thread ensures the best performance on the market
New patented thread design for easy installation
Adjustable plug for situations requiring alignment without loss of performance
Removable anchor for temporary fixing
Wide choice of drill diameters, heads and lengths
Removable anchor for temporary fixing
3 anchoring depths for Ø8 to Ø14

Applications

Pipes
Suspended elements on ceiling or wall
Pull and pressure braces
Suspended ceiling
Temporary fixings
Scaffolding
Signposting
Safety barriers
Stadium seating
Pallet racks
Mechanical and electrical installations

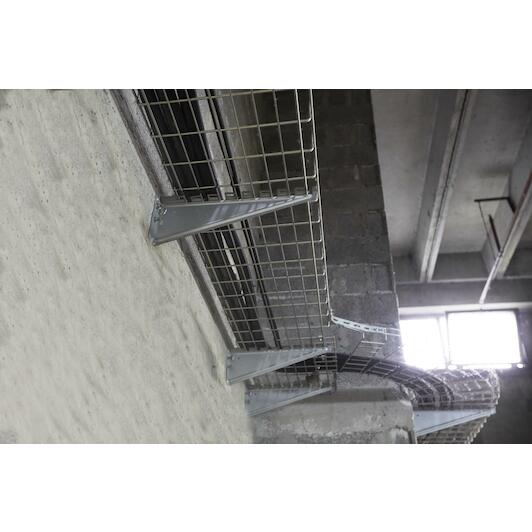

Cable ducts

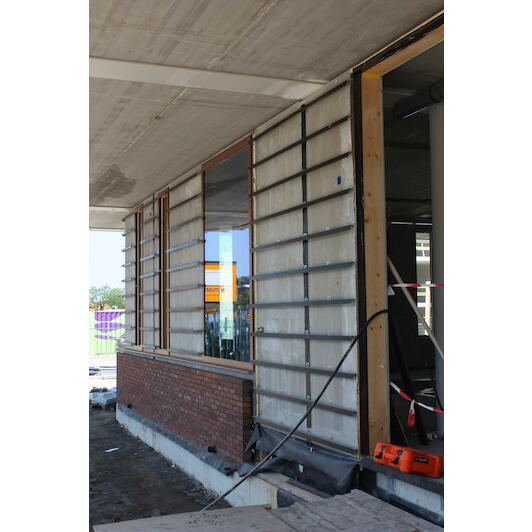

Window frames
Railings
HVAC

All Features

Diameter: 10 mm
Max. useful length: 60 mm
Min. edge distance (mm): 50 mm
Product material: Carbon steel
Head type: Hexagon head
Base material colour: GREY
Min. anchor distance: 50 mm
Anchor diameter: 10.0 mm
Maximum trapping: 5 mm
Min. thickness of base material: 100 mm
Minimum drilling depth: 65 mm
Minimum placement depth: 55.0 mm
Drill diameter: 10.0 mm
Base material: Cracked concrete, Non-cracked concrete
Throughput diameter: 14 mm
Anchor length: 60 mm
Key size: 15.0 mm
Treatment: Galvanised

Brand SPIT
02757554
EAN 3439510587409
Supplier number SPIT 058740

Frequently asked questions about this product

Answered by specialists

Which base materials is this concrete screw suitable for?: You can use it in cracked and non-cracked concrete as well as for seismic applications.
What drill diameter is required for this screw?: For this Tapcon Xtrem concrete screw, you need to drill a hole with a 10 mm diameter.
What is the maximum fixture thickness for this size?: This 10x60 mm screw provides a maximum fixture thickness of 5 mm for the attached part.
Do you need a plug or anchor sleeve for installation?: No, this is a self-tapping concrete screw that drives directly into the pre-drilled hole.
Can this concrete screw be removed after installation?: Yes, the screw is completely removable, making it suitable for temporary fixings as well.
