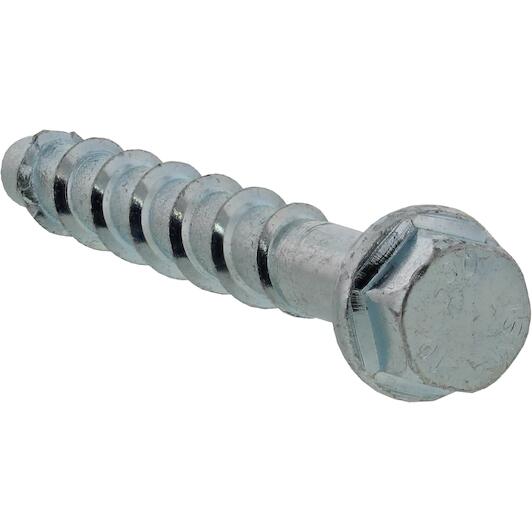

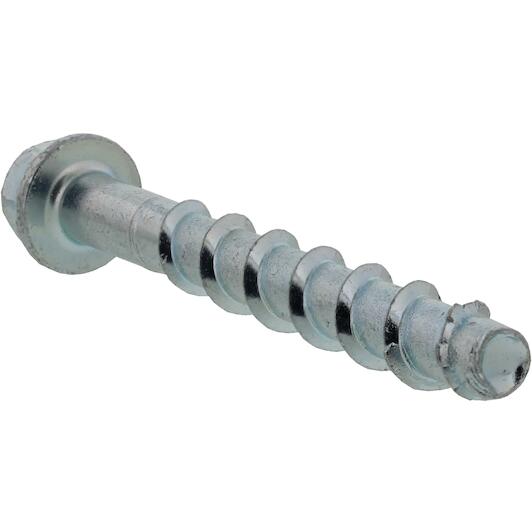

SPIT 058737 TAPCON XTREM HFL concrete screw 8x100/55-35

1.43 tax incl.
€1.18 excl. VAT (incl. all environmental contributions)
On order: delivered from 08/07/2026
each

The minimum purchase order quantity for the product is 50.

  • Ordered before 20:00 - delivered as of 08/07/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

  • Self-tapping screw with hexagonal head for fastening in cracked and non-cracked concrete and for seismic applications
  • ETA seismically approved, fire tested, leading concrete anchor with excellent performance
  • The full ETA Option 1 range can be used in cracked and non-cracked concrete
  • TAPCON XTREM range for use in C1 seismic zones
  • Fire certificate
  • Longer effective thread ensures the best performance on the market
  • New patented thread design for easy installation
  • Adjustable plug for situations requiring alignment without loss of performance
  • Removable anchor for temporary fixing
  • Wide choice of drill diameters, heads and lengths
  • Removable anchor for temporary fixing
  • 3 anchoring depths for Ø8 to Ø14

Applications

  • Pipes
  • Suspended elements on ceiling or wall
  • Pull and pressure braces
  • Suspended ceiling
  • Temporary fixings
  • Scaffolding
  • Signposting
  • Safety barriers
  • Stadium seating
  • Pallet racks
  • Mechanical and electrical installations

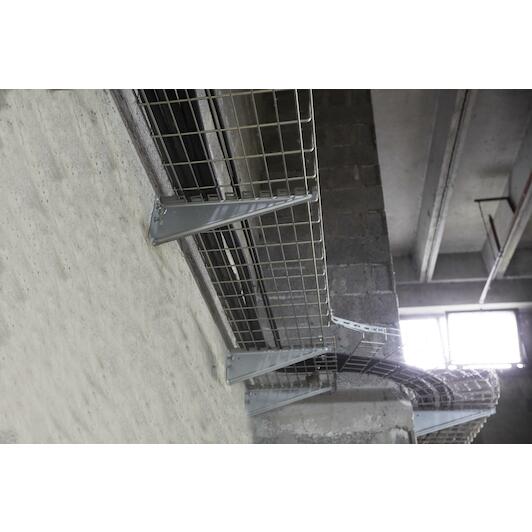

  • Cable ducts
  • Window frames
  • Railings
  • HVAC
Key features according to our expert
  • Diameter: 8 mm
  • Max. useful length: 100 mm
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510587379
  • Supplier number: SPIT 058737
Diameter
8 mm
Max. useful length
100 mm
Min. edge distance (mm)
40 mm
Product material
Carbon steel
Head type
Hexagon head
Base material colour
GREY
Min. anchor distance
40 mm
Anchor diameter
8.0 mm
Maximum trapping
55 mm
Min. thickness of base material
100 mm
Minimum drilling depth
55 mm
Drill diameter
8.0 mm
Minimum placement depth
45.0 mm
Base material
Cracked concrete, Non-cracked concrete
Maximum installation depth
65 mm
Throughput diameter
12 mm
Anchor length
100 mm
Key size
13.0 mm
Treatment
Galvanised
