SPIT

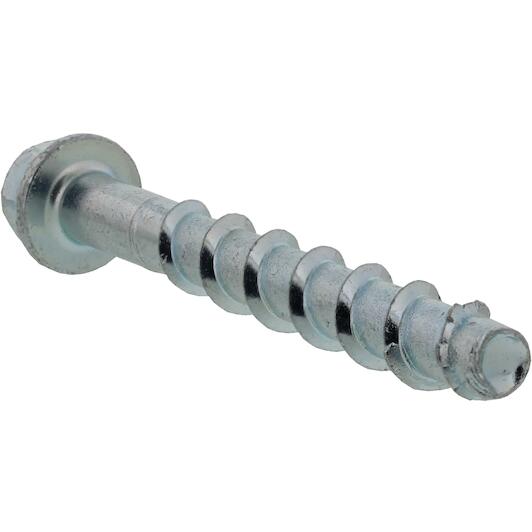

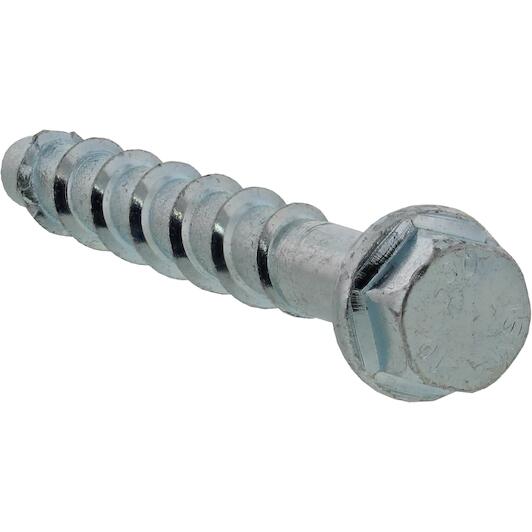

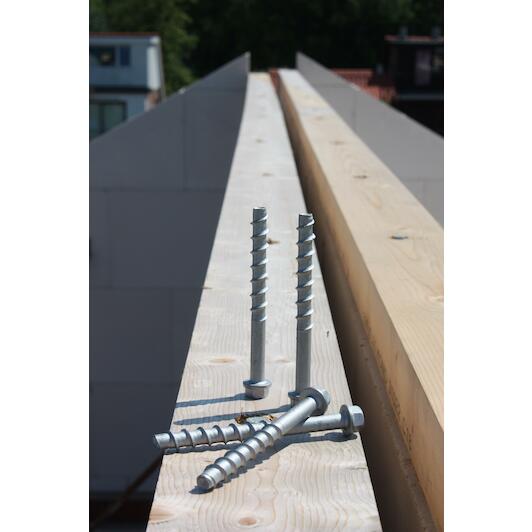

SPIT 058734 TAPCON XTREM HFL concrete screw 8x60/15

This product has been discontinued.

Product description

  • Self-tapping screw with hexagonal head for fastening in cracked and non-cracked concrete and for seismic applications
  • ETA seismically approved, fire tested, leading concrete anchor with excellent performance
  • The full ETA Option 1 range can be used in cracked and non-cracked concrete
  • TAPCON XTREM range for use in C1 seismic zones
  • Fire certificate
  • Longer effective thread ensures the best performance on the market
  • New patented thread design for easy installation
  • Adjustable plug for situations requiring alignment without loss of performance
  • Removable anchor for temporary fixing
  • Wide choice of drill diameters, heads and lengths
  • Removable anchor for temporary fixing
  • 3 anchoring depths for Ø8 to Ø14

Applications

  • Pipes
  • Suspended elements on ceiling or wall
  • Pull and pressure braces
  • Suspended ceiling
  • Temporary fixings
  • Scaffolding
  • Signposting
  • Safety barriers
  • Stadium seating
  • Pallet racks
  • Mechanical and electrical installations

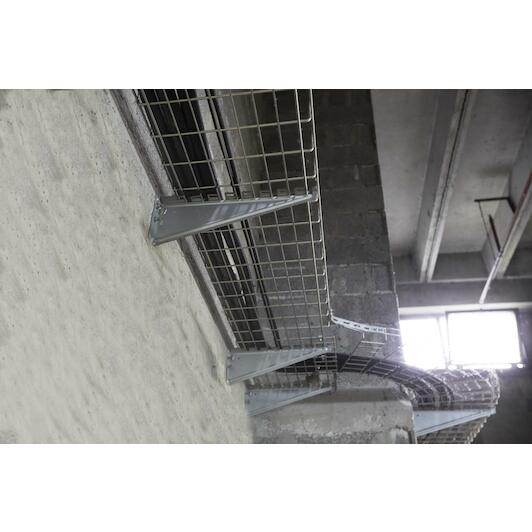

  • Cable ducts
  • Window frames
  • Railings
  • HVAC
Key features according to our expert
  • Diameter: 8 mm
  • Max. useful length: 60 mm
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510587348
  • Supplier number: SPIT 058734
Diameter
8 mm
Max. useful length
60 mm
Min. edge distance (mm)
40 mm
Product material
Carbon steel
Head type
Hexagon head
Base material colour
GREY
Min. anchor distance
40 mm
Anchor diameter
8.0 mm
Maximum trapping
15 mm
Min. thickness of base material
100 mm
Minimum drilling depth
55 mm
Minimum placement depth
45.0 mm
Drill diameter
8.0 mm
Base material
Cracked concrete, Non-cracked concrete
Throughput diameter
12 mm
Anchor length
60 mm
Key size
13.0 mm
Treatment
Galvanised
