SPIT 058658 TAPCON XT LT HFL concrete screw 10x100 A4

Supplier number: SPIT 058658 | EAN 3439510586587
9.85 tax incl.
€8.14 excl. VAT (incl. all environmental contributions)
On order: delivered from 12/10/2026

The minimum purchase order quantity for the product is 50.

  • Ordered before 20:00 - delivered as of 12/10/2026
  • Free shipping
  • Delivery by DHL


€9.85
tax incl.

Product information

Key features according to our expert

  • Diameter: 10 mm
  • Material: Stainless steel A4
  • Length: 100 mm

Product description

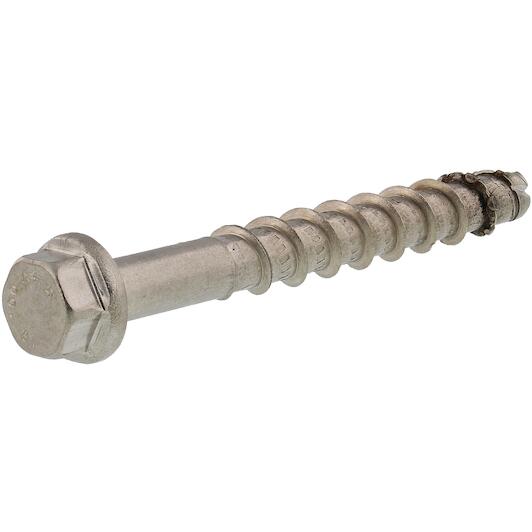

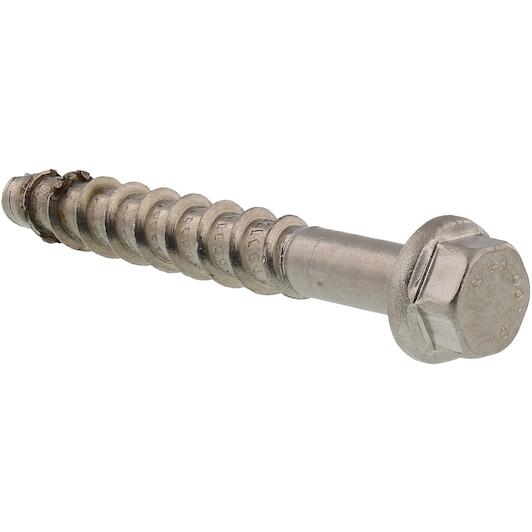

  • Self-tapping stainless steel screw with hexagonal head for fastening in cracked and non-cracked concrete and for seismic applications
  • ETA seismically approved, fire tested, leading concrete anchor with excellent performance
  • The full ETA Option 1 range can be used in cracked and non-cracked concrete
  • TAPCON XTREM range to be used in C1 and C2 seismic zones
  • Fire certificate
  • Longer effective thread ensures the best performance on the market
  • New patented thread design for easy installation
  • Adjustable plug for situations where alignment without loss of performance is required
  • 3 anchoring depths for Ø8 to Ø10

Applications

  • Pipes
  • Suspended elements on ceiling or wall
  • Pull and pressure braces
  • Suspended ceiling
  • Temporary fixings

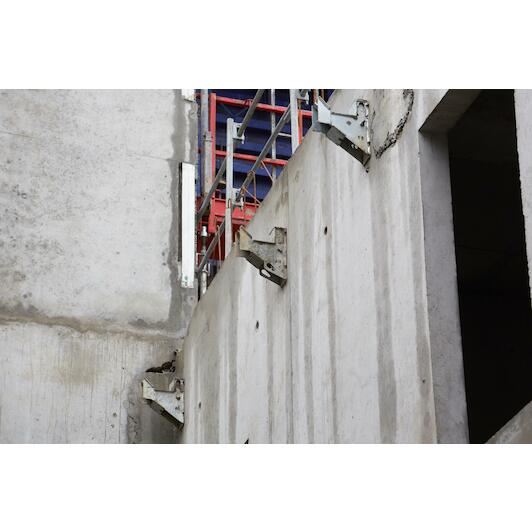

  • Scaffolding
  • Signposting
  • Safety barriers
  • Stadium seating
  • Pallet racks
  • Mechanical and electrical installations
  • Cable ducts
  • Window frames

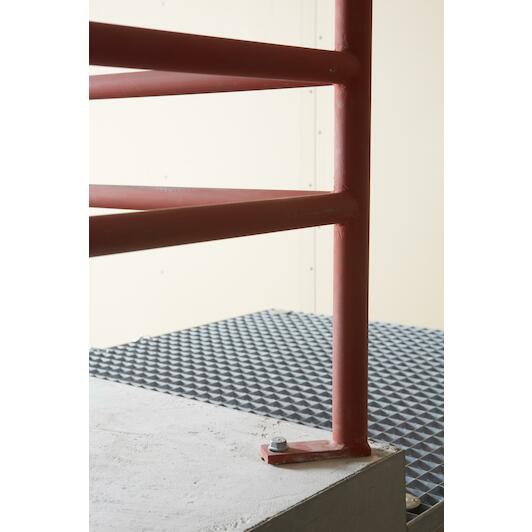

  • Railings
  • HVAC

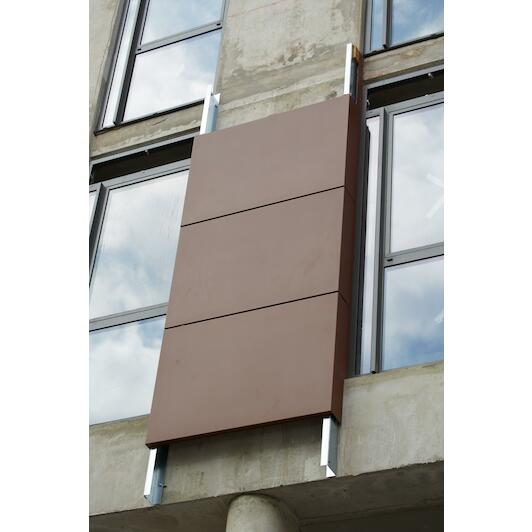

  • Canopies

All Features

Diameter
10 mm
Material
Stainless steel A4
Length
100 mm
Drill diameter
10.0 mm
Product material
INOX A4
Head type
Hexagon head
Min. anchor distance
40 mm
Anchor diameter
10.0 mm
Maximum trapping
45 mm
Tightening torque
40 N-m
Min. thickness of base material
130 mm
Minimum drilling depth
65 mm
Base material
Cracked concrete, Non-cracked concrete
Minimum placement depth
55.0 mm
Maximum installation depth
85 mm
Throughput diameter
14 mm
Anchor length
100 mm
Key size
15.0 mm
Min. edge distance (mm)
40 mm
  • Brand SPIT
  • EAN 3439510586587
  • Supplier number SPIT 058658
