SPIT

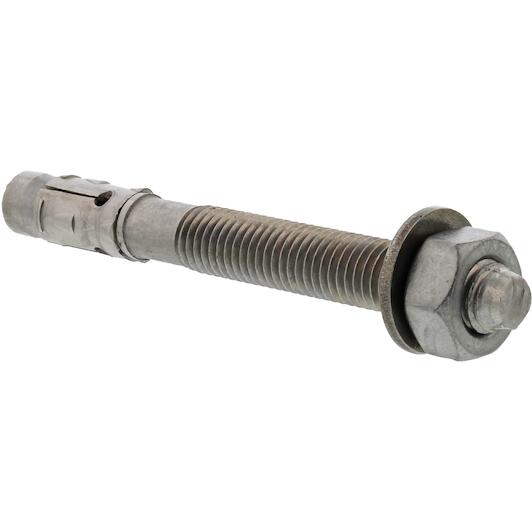

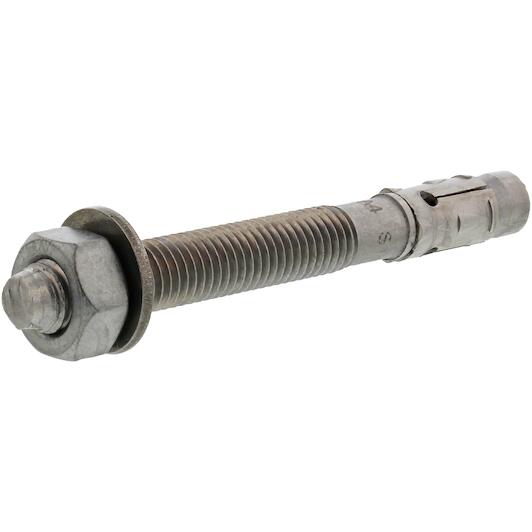

SPIT 058616 FIX Z XTREM A4 segment anchor M8x55 zinc-plated

2.12 tax incl.
€1.75 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

The minimum purchase order quantity for the product is 100.

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Piercing anchor in stainless steel for cracked and non-cracked concrete and seismic applications
  • ETA approved quality stainless steel anchor for safety applications
  • Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
  • High allowable loads thanks to special geometry and segment thickness
  • Large range that can be used in all seismic C1 and C2 areas
  • Geometry ensures easy placement and fast installation due to minimum number of turns
  • Maximum flexibility thanks to the fully continuous screw act

Applications

  • Steel structures
  • Stairs
  • Pull and pressure braces
  • Purlin shoe
  • Stadium seating
  • HVAC
  • Wooden structures
  • Brackets
  • Metal brackets
Key features according to our expert
  • Thread dimension: M8
  • Material (bolt): Stainless steel A4
  • Overall length: 55 mm
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510586167
  • Supplier number: SPIT 058616
Thread dimension
M8
Material (bolt)
Stainless steel A4
Overall length
55 mm
Drill diameter
8.0 mm
Treatment
Stainless steel A4
Min. edge distance (mm)
60 mm
Product material
INOX A4
Head type
Loose nut head
Min. anchor distance
50 mm
Anchor diameter
8.0 mm
Maximum trapping
5 mm
Tightening torque
20 N-m
Min. thickness of base material
100 mm
Minimum drilling depth
52 mm
Base material
Cracked concrete, Non-cracked concrete
Minimum placement depth
42.0 mm
Maximum installation depth
48 mm
Throughput diameter
9 mm
Anchor length
55 mm
Wire diameter
M8
Key size
13.0 mm
Anchor screw material
Stainless steel A4
