Product description

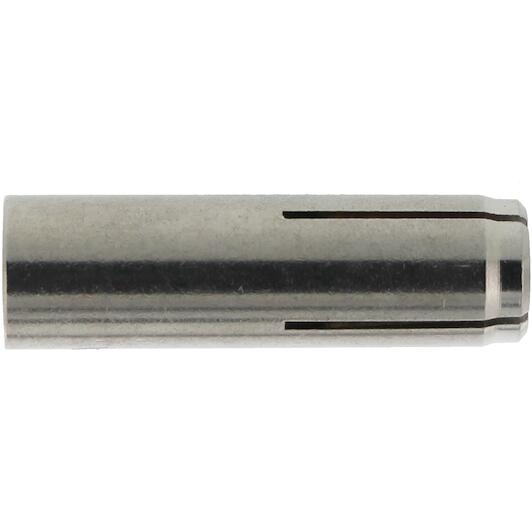

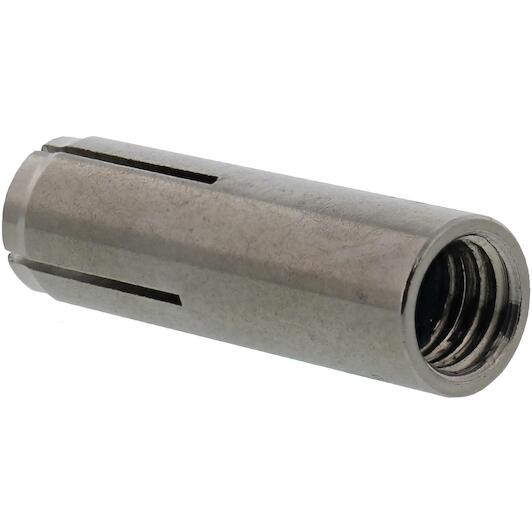

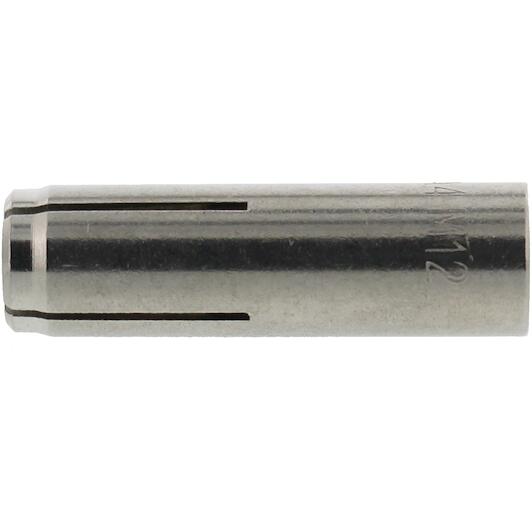

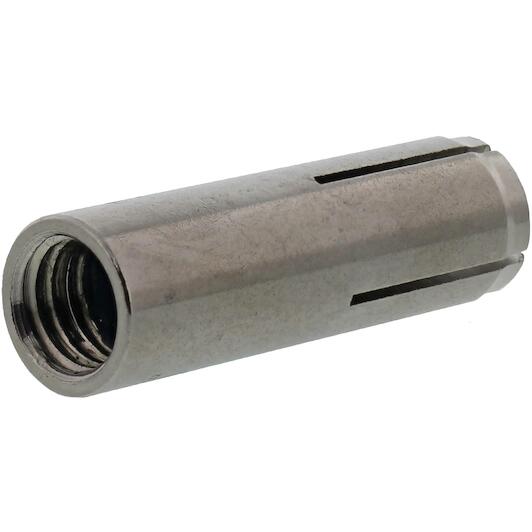

- High-strength stainless steel impact anchor for use in cracked and non-cracked concrete
- Impact anchor for use in cracked and non-cracked concrete

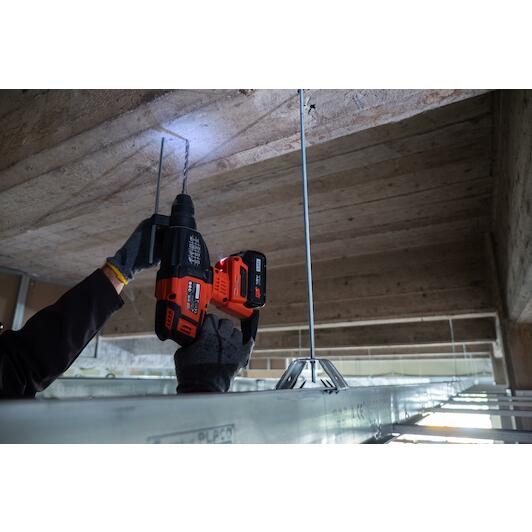

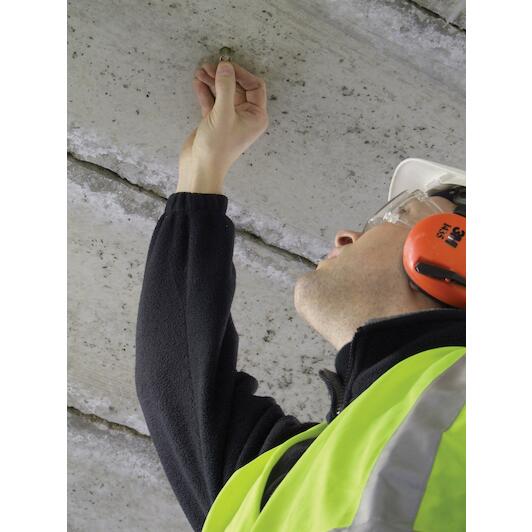

- Ideal for use in ceiling applications thanks to ETA Part 6 approval for use in cracked and non-cracked concrete
- Contact with reinforcement is avoided thanks to short drilling and embedment depth (time saved during drilling)
- Use in hollow-core slabs or deep holes is easily possible thanks to the collar on the anchor
- Anchor can be used in situations where fire resistance is required thanks to VDS approval
- Same installation tool for both galvanised and stainless steel SPIT-GRIP anchors
- Stainless steel
Applications

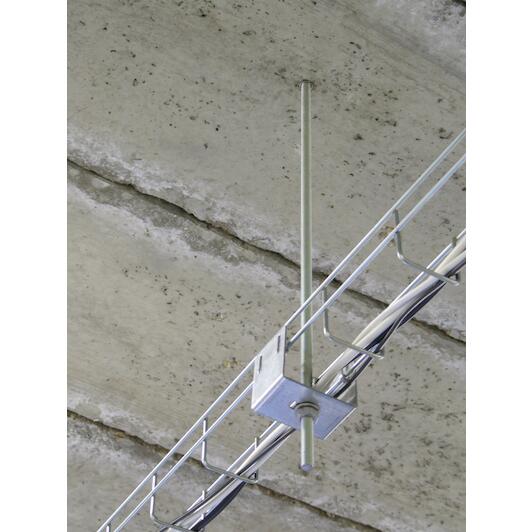

- Cable tracks
- Suspended ceilings
- Pipes
- Stadium seating
- Mechanical and electrical services
- Sound insulation systems
- Sprinklers
- Ventilation systems
Key features according to our expert
-
Wire dimension: 12 mm
-
Overall length: 50 mm
-
Material: Stainless steel A4
Specifications / All features
-
Brand:
SPIT
-
03196207
-
EAN:
3439510585931
-
Supplier number:
SPIT 058593
- Wire dimension
- 12 mm
- Overall length
- 50 mm
- Material
- Stainless steel A4
- Min. edge distance (mm)
- 175 mm
- Product material
- INOX A4
- Anchor diameter
- 30.0 mm
- Min. anchor distance
- 100 mm
- Internal thread diameter
- 12.0 mm
- Tightening torque
- 38 N-m
- Min. thickness of base material
- 100 mm
- Minimum drilling depth
- 54 mm
- Base material
- Cracked concrete, Non-cracked concrete
- Drill diameter
- 15.0 mm
- Maximum installation depth
- 50 mm
- Throughput diameter
- 14 mm
- Anchor length
- 50 mm
- Wire diameter
- M12
- Treatment
- Stainless steel A4
