SPIT

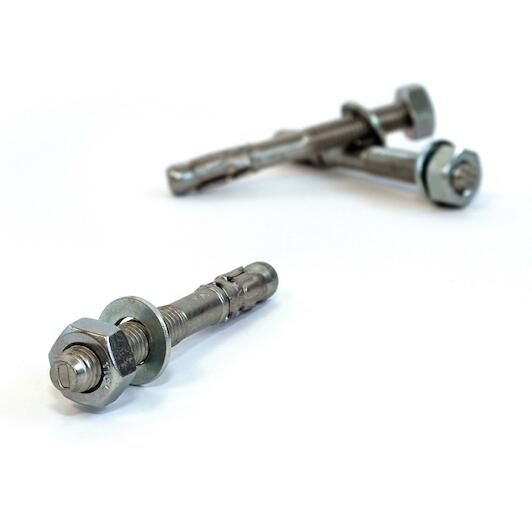

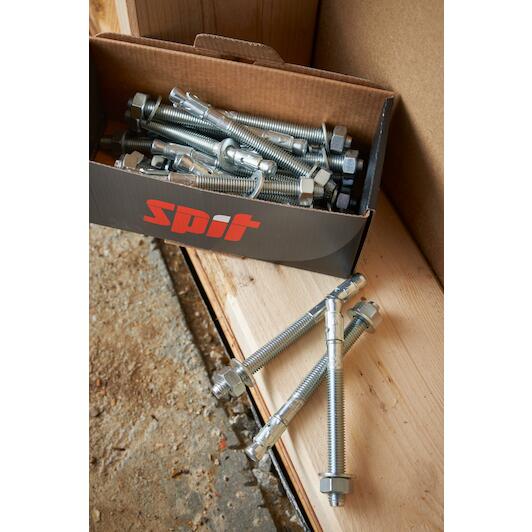

SPIT 057796 FIX Z XTREM segment anchor M12x155/60 zinc-plated

2.52 tax incl.
€2.08 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

The minimum purchase order quantity for the product is 20.

  • Ordered before 20:00 - delivered as of 22/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

  • Piercing anchor for cracked and non-cracked concrete and seismic applications
  • ETA-approved quality anchor for safety applications
  • Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
  • High allowable loads thanks to special geometry and segment thickness
  • Large range that can be used in all seismic C1 and C2 areas
  • Geometry ensures easy placement and fast installation due to minimum number of turns
  • Maximum flexibility thanks to the fully continuous screw act

Applications

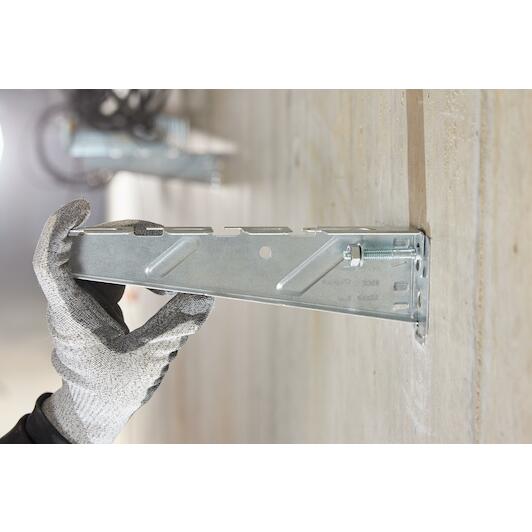

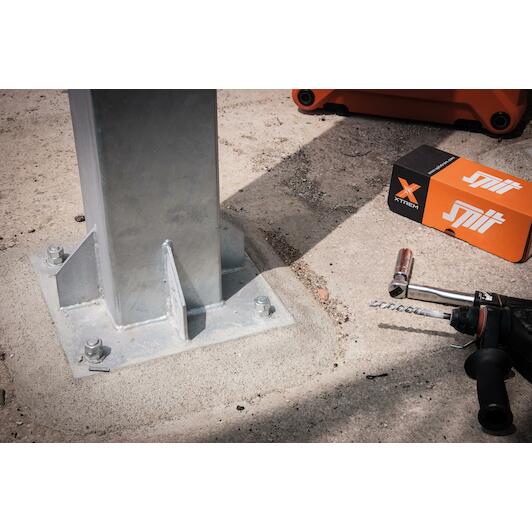

  • Steel structures
  • Safety fences

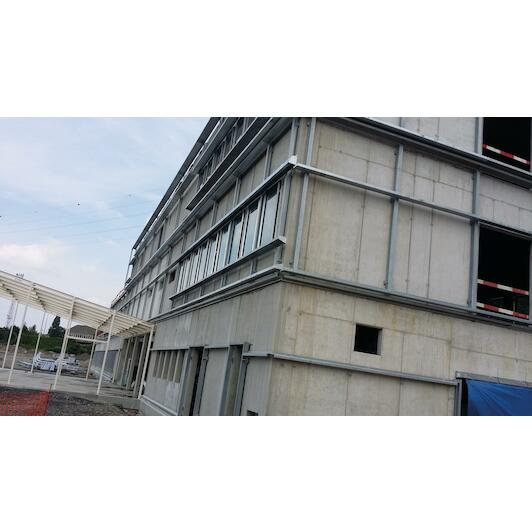

  • Curtain wall
  • Purlin
  • Wooden panel

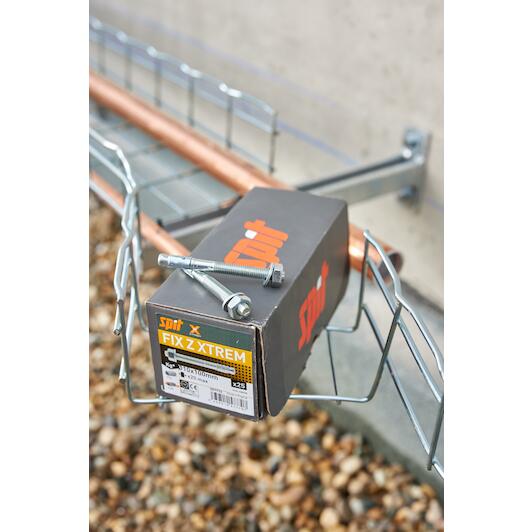

  • HVAC

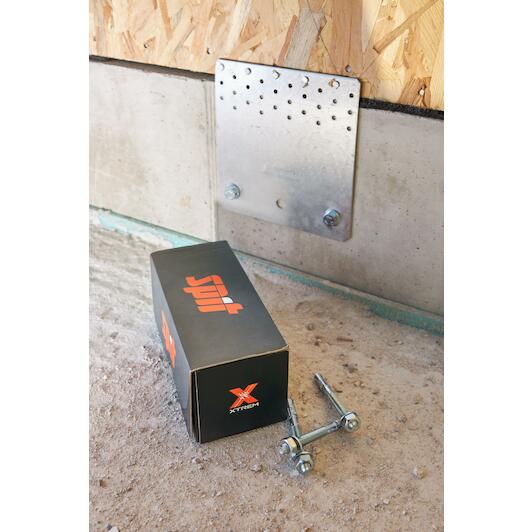

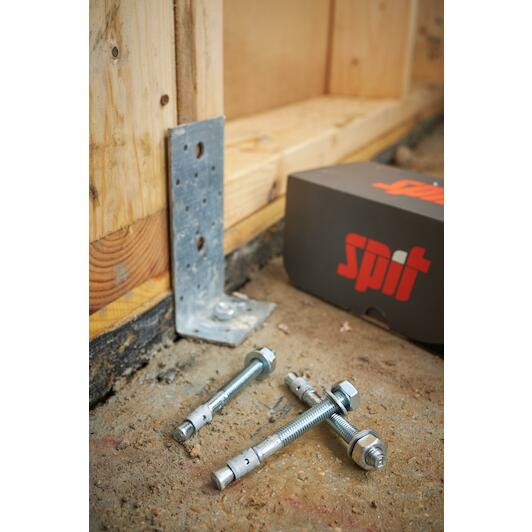

  • Timber structures
Key features according to our expert
  • Drilling diameter: 12 mm
  • Effective length: 60 mm
  • Overall length: 155 mm
  • Material (bolt): Steel
  • Surface treatment (bolt): Zinc plated
  • Thread dimension: M12
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510577967
  • Supplier number: SPIT 057796
Drilling diameter
12 mm
Effective length
60 mm
Overall length
155 mm
Material (bolt)
Steel
Surface treatment (bolt)
Zinc plated
Thread dimension
M12
Anchor diameter
12.0 mm
Min. thickness of base material
100 mm
Tightening torque
60 N-m
Maximum trapping
80 mm
Product material
Carbon steel
Min. anchor distance
60 mm
Head type
Loose nut head
Minimum clamping thickness
60 mm
Min. edge distance (mm)
60 mm
Treatment
Galvanised
Minimum drilling depth
70 mm
Maximum installation depth
70 mm
Drill diameter
12.0 mm
Minimum placement depth
50.0 mm
Base material
Cracked concrete, Non-cracked concrete
Throughput diameter
14 mm
Anchor length
155 mm
Wire diameter
M12
Key size
19.0 mm
Anchor screw material
Steel
