Product description
- Piercing anchor for cracked and non-cracked concrete and seismic applications
- ETA-approved quality anchor for safety applications
- No wood deformation thanks to extra-large ring according to DIN 440 / ISO 7094
- Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
- High load capacity thanks to special geometry and segment thickness
- High allowable loads thanks to special geometry and thickness of segment
- Large range that can be used in all seismic C1 and C2 areas

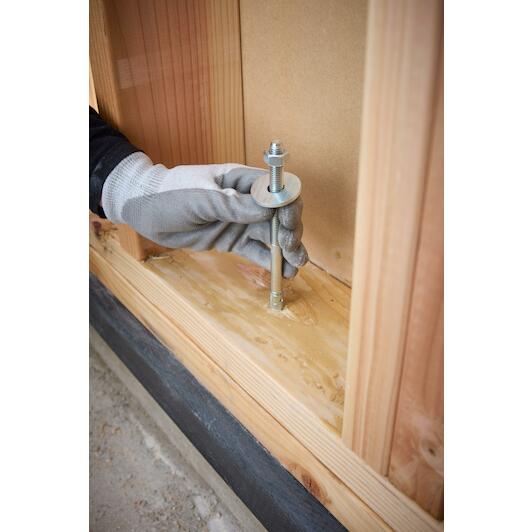

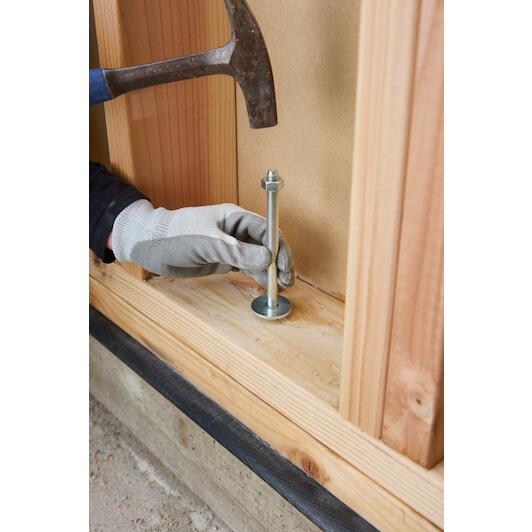

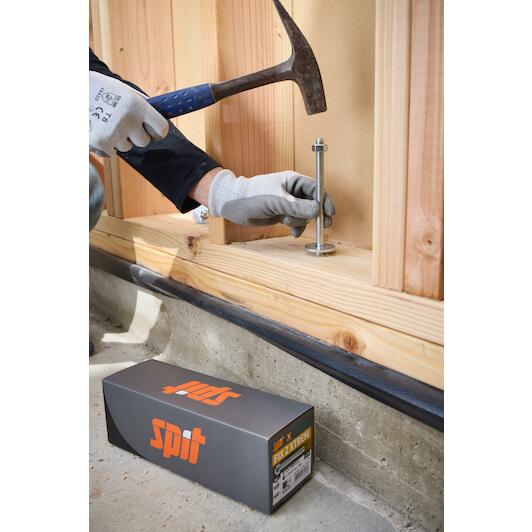

- Geometry ensures easy placement and fast installation due to minimum number of rotations
- Maximum flexibility in thanks to fully continuous screw act
Applications
- Steel structures
- Safety fences
- Curtain wall
- Purlin
- Wooden panel
- HVAC
- Timber structures
Key features according to our expert
-
Thread dimension: M16
-
Surface treatment (bolt): Zinc plated
-
Overall length: 250 mm
Specifications / All features
-
Brand:
SPIT
-
03196191
-
EAN:
3439510576779
-
Supplier number:
SPIT 057677
- Thread dimension
- M16
- Surface treatment (bolt)
- Zinc plated
- Overall length
- 250 mm
- Drill diameter
- 16.0 mm
- Treatment
- Galvanised
- Min. edge distance (mm)
- 85 mm
- Product material
- Carbon steel
- Head type
- Loose nut head
- Min. anchor distance
- 85 mm
- Anchor diameter
- 16.0 mm
- Maximum trapping
- 130 mm
- Tightening torque
- 100 N-m
- Min. thickness of base material
- 170 mm

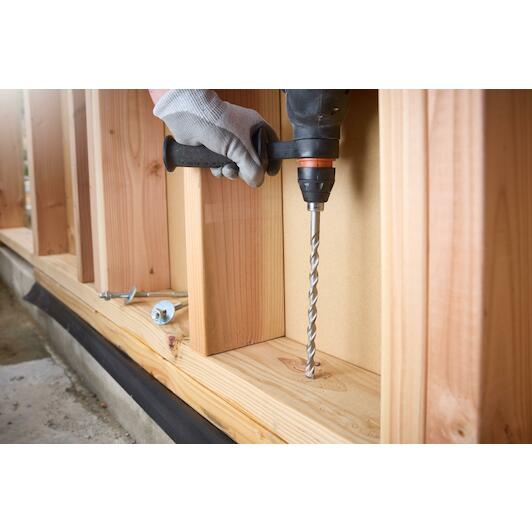

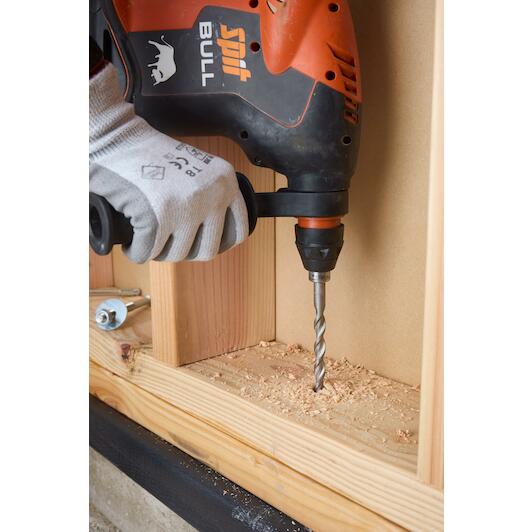

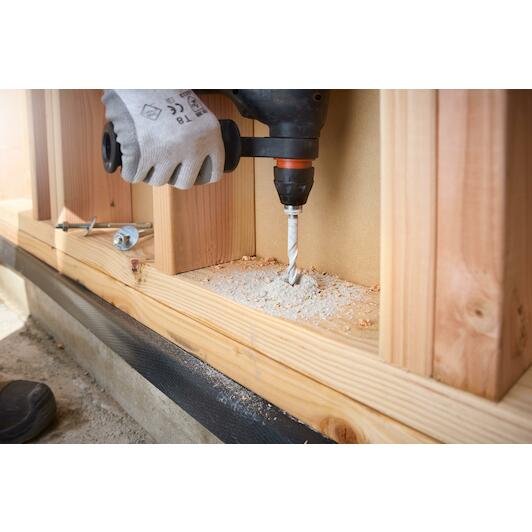

- Minimum drilling depth
- 105 mm
- Base material
- Cracked concrete, Non-cracked concrete
- Minimum placement depth
- 65.0 mm
- Maximum installation depth
- 85 mm
- Throughput diameter
- 18 mm
- Anchor length
- 250 mm
- Wire diameter
- M16
- Key size
- 24.0 mm
- Anchor screw material
- Steel
