What drill diameter is required for this anchor?

You need a 10 mm drill diameter in the base material to install this insulation anchor.

What is the maximum insulation thickness you can fix?

This insulation anchor is suitable for an insulation thickness of up to 105 mm.

Which base materials is this insulation anchor suitable for?

You can use this anchor in substrates such as brick, aerated concrete, and concrete.

How do you install this insulation anchor?

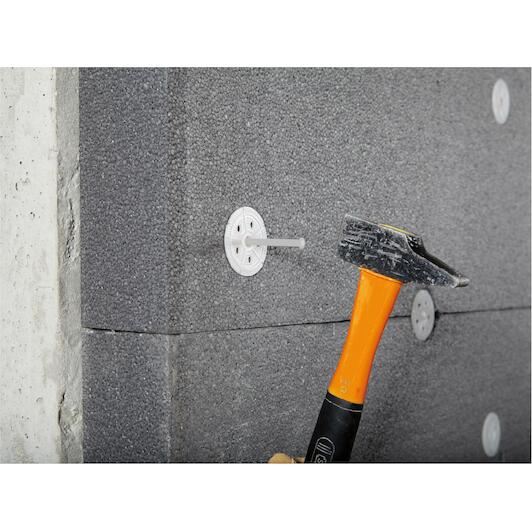

You drill through the insulation into the substrate, push the anchor in, and hammer in the plastic expansion nail.

SPIT 057630 insulation plug with plastic dowel for EPS insulation (Ø50) 10x100

Name: SPIT 057630 insulation plug with plastic dowel for EPS insulation (Ø50) 10x100
Brand: SPIT
SKU: 02345313
Price: 0.35 EUR
Availability: InStock

Supplier number: SPIT 057630 | EAN 3439510576304

0.35 tax incl.

€0.29 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 200.

Ordered before 20:00 - delivered tomorrow 03/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable insulation fastening with Spit

Practical benefits

Fast hammer-in expansion: You drive the plastic expansion nail in swiftly to lock the anchor securely into place.
Prevents unwanted thermal bridging: The full plastic construction minimizes heat loss to maintain optimal thermal insulation efficiency.

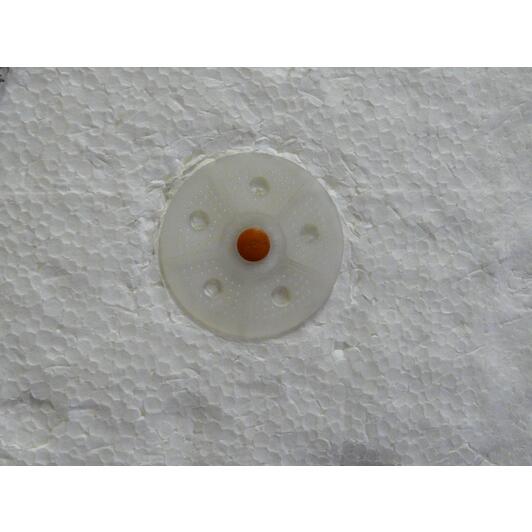

Firm panel clamping surface: The wide 60 mm plate gives you excellent clamping force over EPS insulation boards without damage.

In a nutshell

The right choise for

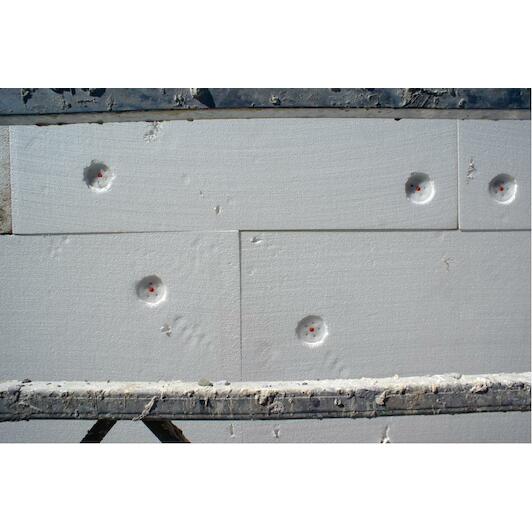

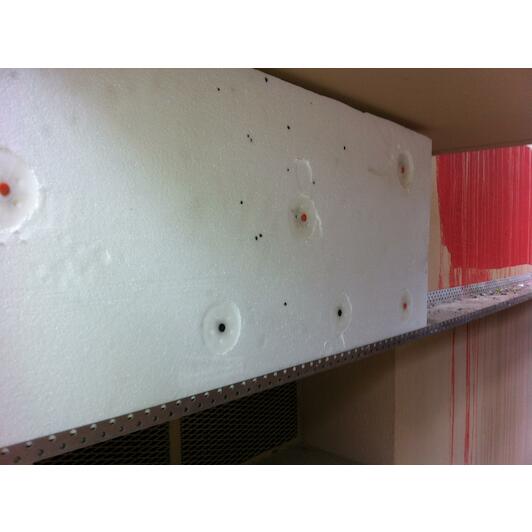

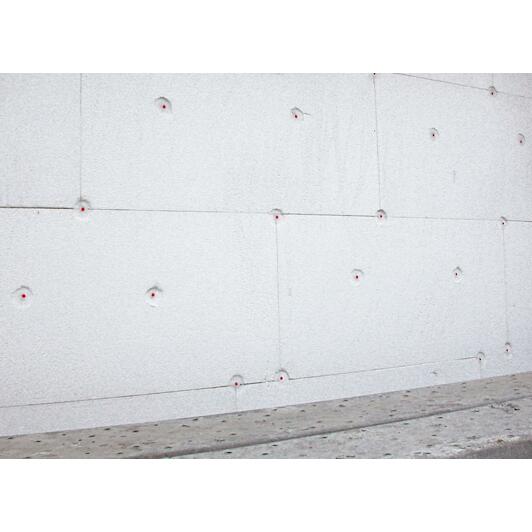

With the Spit iso insulation anchor, you secure facade insulation quickly and reliably to mineral substrates such as brick and aerated concrete. Designed for a 10 mm drill diameter and featuring a length of 135 mm, this anchor accommodates eps insulation boards up to 105 mm thick. The all-plastic drive pin prevents thermal bridging, ensuring your wall assembly retains its full thermal efficiency. With a wide 60 mm head diameter, it provides firm and even clamping across insulation panels without surface damage. Simply drill through the board into the base material, push the anchor into place, and hammer in the plastic pin for an immediate, solid hold.

Product information FAQ

€0.35

In stock - tax incl.

Key features according to our expert

Head diameter: 60 mm
With screw: Yes
Max. insulation thickness: 105 mm
Wall plug type: Insulation plug
Application: Brick; Aerated concrete
With collar: Yes
Drilling diameter: 10 mm
Diameter (wall plug): 10 mm
Material (wall plug): PP - Polypropylene
Length (Wall plug): 135

Product description

Insulation plug with plastic nail for fixing expanded polyester (EPS) and mineral insulation boards in ETICS system
Expansion insulation plug with striking pin perfectly suited for EPS insulation
Suitable for all base materials for ETICS applications
High pull-out values: 150 kg in concrete for optimum anchor consumption per m2
Secure ETICS fastening
Optimal thermal transfer < 0.002 W/K
Low depth: 25 mm
Expansions for quick and easy fixing
Pre-assembled anchor for faster installation
Special panel surface for optimal adhesion.
Suitable for thick insulation boards.
ETICS use categories: A - B - C - D - E.

Applications

Window hooks
Suspended ceilings
Cladding
Duct & conduit systems

Documents

⤓ Declaration of Conformity PDF

All Features

Head diameter: 60 mm
With screw: Yes
Max. insulation thickness: 105 mm
Wall plug type: Insulation plug
Application: Brick; Aerated concrete
With collar: Yes
Drilling diameter: 10 mm
Diameter (wall plug): 10 mm
Material (wall plug): PP - Polypropylene
Length (wall plug): 135
Minimum drilling depth: 50 mm
Product material: Polypropylene
Thermal properties: 0,001
Head type: Ring head
Base material colour: PURPLE
Min. anchor distance: 100 mm
Anchor diameter: 10.0 mm
Maximum trapping: 105 mm
Anchoring depth: 30 mm
Min. thickness of base material: 100 mm
Minimum clamping thickness: 95 mm
Drill diameter: 10.0 mm
Minimum placement depth: 30.0 mm
Base material: Hollow blocks, Hollow bricks, Non-cracked concrete, Solid blocks, Solid brick
Maximum installation depth: 30 mm
Anchor length: 135 mm
Min. edge distance (mm): 100 mm

Brand SPIT
02345313
EAN 3439510576304
Supplier number SPIT 057630

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this anchor?: You need a 10 mm drill diameter in the base material to install this insulation anchor.
What is the maximum insulation thickness you can fix?: This insulation anchor is suitable for an insulation thickness of up to 105 mm.
Which base materials is this insulation anchor suitable for?: You can use this anchor in substrates such as brick, aerated concrete, and concrete.
How do you install this insulation anchor?: You drill through the insulation into the substrate, push the anchor in, and hammer in the plastic expansion nail.
