SPIT

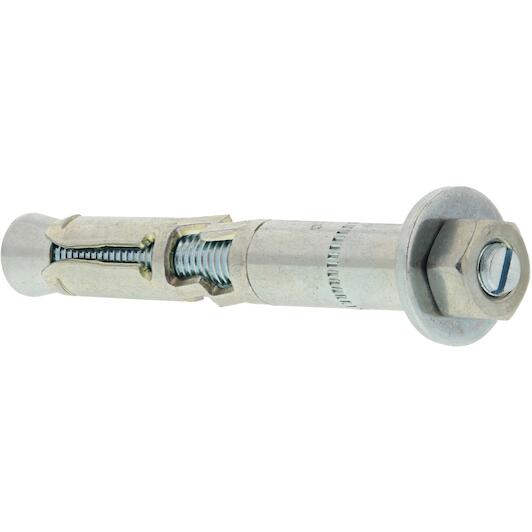

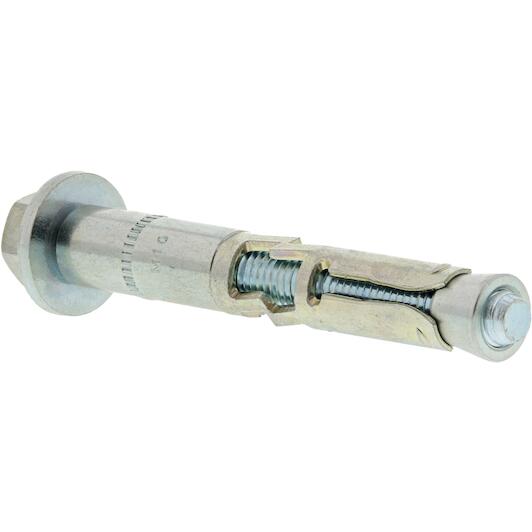

SPIT 050707 TRIGA Z XTREM safety anchor E16-24/55 galvanised (with bolt and washer)

20.20 tax incl.
€16.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

The minimum purchase order quantity for the product is 5.

  • Ordered before 20:00 - delivered as of 22/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

  • Anchor incl. nut and washer for very high loads for cracked concrete and seismic applications
  • ETA-approved anchor with top performance in different versions for various applications
  • ETA Option 1 - Cracked concrete and seismic zone
  • Piercing anchor with sleeve - very high shear loads
  • Full steel compression system - perfect compression of the piece to be fixed
  • 100% steel - good fire resistance
  • Internal expansion - anchors do not shift during expansion
  • Different versions for different applications (bolt, nut, countersunk head, eye, hook)

Applications

  • Steel structures
  • Heavy HVAC applications
  • Nuclear application
  • Infrastructure and road construction, e.g. bridges
  • Airports
Key features according to our expert
  • Wire dimension: 16 mm
  • Material: Steel
  • Surface treatment: Zinc plated
  • Safety anchor: Yes
  • Drilling diameter: 24 mm
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510507070
  • Supplier number: SPIT 050707
Wire dimension
16 mm
Material
Steel
Surface treatment
Zinc plated
Safety anchor
Yes
Drilling diameter
24 mm
Anchor diameter
24.0 mm
Tightening torque
120 N-m
Anchoring depth
100 mm
Maximum trapping
55 mm
Head type
Loose nut head
Min. anchor distance
100 mm
Base material colour
GREY
Minimum drilling depth
131 mm
Product material
Carbon steel
Min. edge distance (mm)
100 mm
Treatment
Galvanised
Min. thickness of base material
200 mm
Maximum installation depth
100 mm
Drill diameter
24.0 mm
Base material
Cracked concrete, Non-cracked concrete
Throughput diameter
26 mm
Anchor length
189 mm
Wire diameter
M16
Key size
24.0 mm
Anchor screw material
Steel
