SPIT

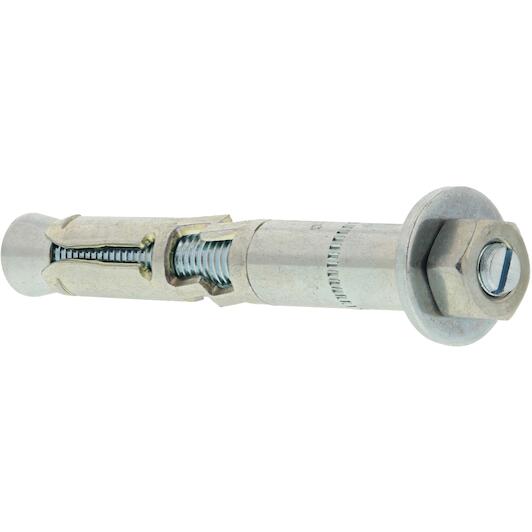

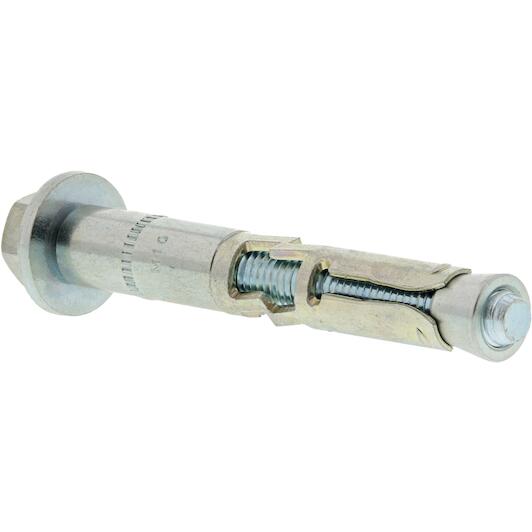

SPIT 050692 TRIGA Z XTREM safety anchor E10-15/35 galvanised (with bolt and washer)

7.11 tax incl.
€5.88 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

The minimum purchase order quantity for the product is 25.

  • Ordered before 20:00 - delivered as of 22/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Anchor incl. nut and washer for very high loads for cracked concrete and seismic applications
  • ETA-approved anchor with top performance in different versions for various applications
  • ETA Option 1 - Cracked concrete and seismic zone
  • Piercing anchor with sleeve - very high shear loads
  • Full steel compression system - perfect compression of the piece to be fixed
  • 100% steel - good fire resistance
  • Internal expansion - anchors do not shift during expansion
  • Different versions for different applications (bolt, nut, countersunk head, eye, hook)

Applications

  • Steel structures
  • Heavy HVAC applications
  • Nuclear application
  • Infrastructure and road construction, e.g. bridges
  • Airports
Key features according to our expert
  • Wire dimension: 10 mm
  • Material: Steel
  • Surface treatment: Zinc plated
  • Safety anchor: Yes
  • Drilling diameter: 15 mm
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510506929
  • Supplier number: SPIT 050692
Wire dimension
10 mm
Material
Steel
Surface treatment
Zinc plated
Safety anchor
Yes
Drilling diameter
15 mm
Anchor diameter
15.0 mm
Tightening torque
50 N-m
Anchoring depth
70 mm
Maximum trapping
35 mm
Head type
Loose nut head
Min. anchor distance
70 mm
Base material colour
GREY
Minimum drilling depth
90 mm
Product material
Carbon steel
Min. edge distance (mm)
70 mm
Treatment
Galvanised
Min. thickness of base material
140 mm
Maximum installation depth
70 mm
Drill diameter
15.0 mm
Base material
Cracked concrete, Non-cracked concrete
Throughput diameter
17 mm
Anchor length
129 mm
Wire diameter
M10
Key size
16.0 mm
Anchor screw material
Steel
