What drill hole diameter is required for this anchor?

You need to drill a hole with a diameter of 12 mm.

What are the thread size and total length specifications?

This anchor features an M6 thread and has an overall length of 70 mm.

Does this expansion anchor come with fasteners included?

Yes, this model comes complete with a matching bolt and washer.

What material and finish are used for this anchor?

It is made of steel with a zinc-plated surface treatment for corrosion resistance.

Is this Spit expansion anchor rated as a safety anchor?

No, this model is not classified as a safety anchor.

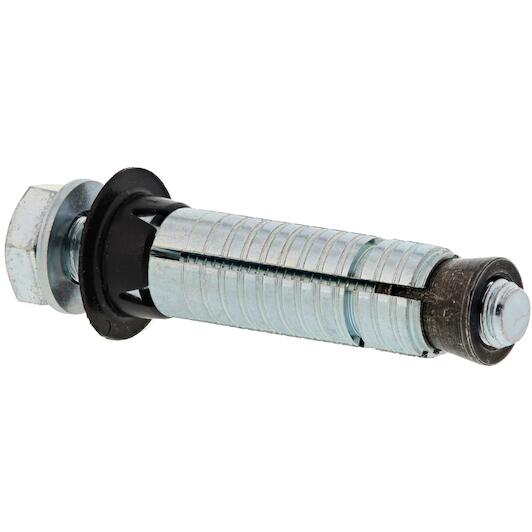

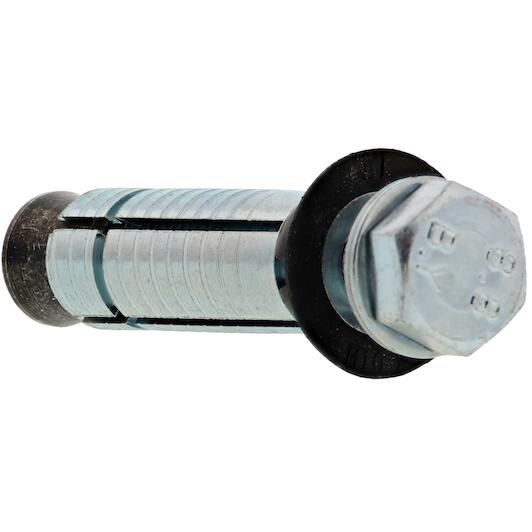

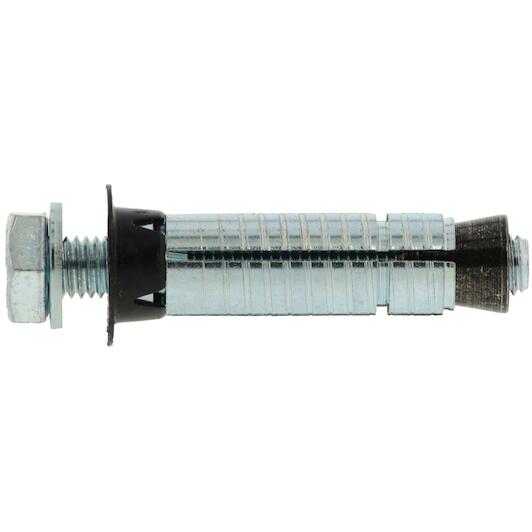

SPIT 050405 PRIMA l spread anchor M6x12/25 zinc-plated (with bolt and washer)

Name: SPIT 050405 PRIMA l spread anchor M6x12/25 zinc-plated (with bolt and washer)
Brand: SPIT
SKU: 02345651
Price: 2.31 EUR
Availability: InStock

Supplier number: SPIT 050405 | EAN 3439510504055

2.31 tax incl.

€1.91 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 25.

Ordered before 20:00 - delivered tomorrow 06/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Dependable anchoring across various materials

Practical benefits

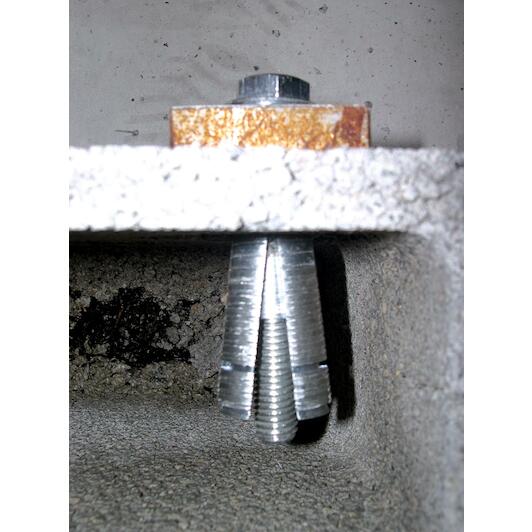

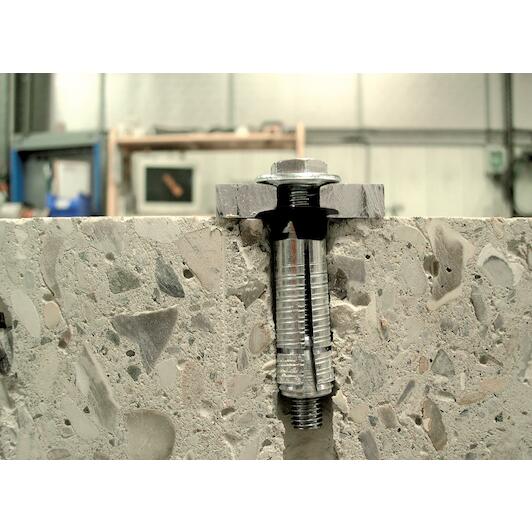

Strong hold through expansion: Four expansion legs distribute loads evenly, allowing you to secure fixtures firmly into solid and hollow building materials.
Durable corrosion resistant finish: The zinc-plated steel construction resists rust effectively, ensuring you maintain a stable fastening over time.
Complete set ready to install: Supplied with the matching M6 bolt and washer, you have all necessary components ready for swift installation.

In a nutshell

The right choise for

With the Spit Prima L universal expansion anchor M6X70/25, you can reliably secure medium-duty structures and profiles into solid and hollow building materials. Its four expansion legs distribute loads evenly across the 12 mm drilled hole, preventing mounted components from loosening over time. Made from zinc-plated steel, this 70 mm long anchor provides dependable corrosion resistance for indoor installations in dry spaces. Supplied as a complete set with the matching M6 bolt and washer, you have everything ready to swiftly mount pipe clamps, cable trays, and channel rails to walls or ceilings.

Product information FAQ

€2.31

In stock - tax incl.

Key features according to our expert

Wire dimension: 6 mm
Overall length: 70 mm
Material: Steel
Surface treatment: Zinc plated
Safety anchor: No
Drilling diameter: 12 mm

Product description

Metal mechanical anchor with large spread
Universal demountable metal spread anchor
Applications
- Fastening of industrial doors, roller tracks, facades, fall protection, window cleaning systems

All Features

Wire dimension: 6 mm
Overall length: 70 mm
Material: Steel
Surface treatment: Zinc plated
Safety anchor: No
Drilling diameter: 12 mm
Minimum wire length: 70.0 mm
Maximum trapping: 25 mm
Anchor diameter: 12.0 mm
Internal thread diameter: 6.0 mm
Product material: Carbon steel
Min. anchor distance: 60 mm
Base material colour: PURPLE
Min. thickness of base material: 100 mm
Min. edge distance (mm): 50 mm
Treatment: Galvanised
Tightening torque: 10 N-m
Throughput diameter: 8 mm
Minimum drilling depth: 60 mm
Drill diameter: 12.0 mm
Maximum installation depth: 37 mm
Anchor length: 70 mm
Wire diameter: M6
Key size: 10.0 mm
Anchor screw material: Steel

Brand SPIT
02345651
EAN 3439510504055
Supplier number SPIT 050405

Frequently asked questions about this product

Answered by specialists

What drill hole diameter is required for this anchor?: You need to drill a hole with a diameter of 12 mm.
What are the thread size and total length specifications?: This anchor features an M6 thread and has an overall length of 70 mm.
Does this expansion anchor come with fasteners included?: Yes, this model comes complete with a matching bolt and washer.
What material and finish are used for this anchor?: It is made of steel with a zinc-plated surface treatment for corrosion resistance.
Is this Spit expansion anchor rated as a safety anchor?: No, this model is not classified as a safety anchor.
