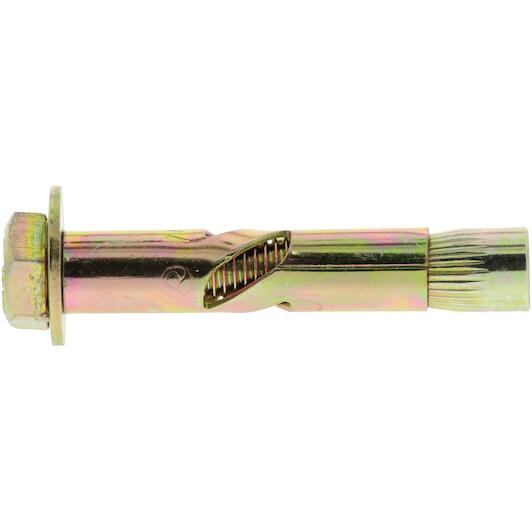

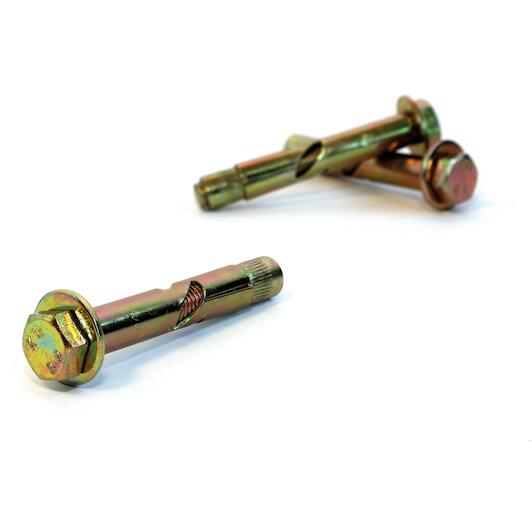

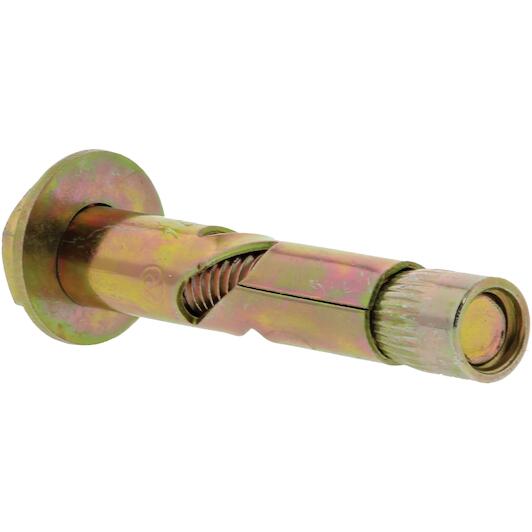

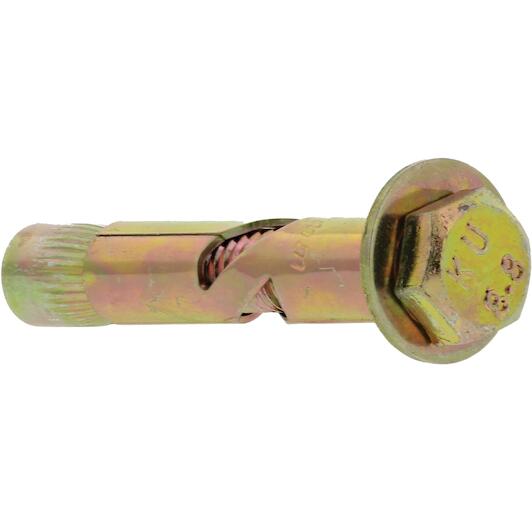

SPIT 050252 DYNABOLT HB spread anchor m6x45/8 zinc-plated (with bolt and washer)

Name: SPIT 050252 DYNABOLT HB spread anchor m6x45/8 zinc-plated (with bolt and washer)
Brand: SPIT
SKU: 02697549
Price: 0.51 EUR
Availability: PreOrder

Supplier number: SPIT 050252 | EAN 9314772018141

0.51 tax incl.

€0.42 excl. VAT (incl. all environmental contributions)

On order: delivered from 16/10/2026

The minimum purchase order quantity for the product is 100.

Ordered before 20:00 - delivered as of 16/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Product information

€0.51

tax incl.

Key features according to our expert

Wire dimension: 6 mm
Overall length: 45 mm
Material: Steel
Surface treatment: Zinc plated
Safety anchor: No
Drilling diameter: 12 mm

Product description

Sleeve anchor for medium loads
Spreading anchor for medium loads with hexagonal head
Push-through assembly for easy and quick fixing
Hexagon head for beautiful finish
Integrated compression system for perfect flattening
Especially for masonry and concrete applications
Low indentation effect adapted for wood or hollow sections

Applications

Urban furniture
Signposting
Cable ducts
Satellite dish
Air conditioning system
Railings

All Features

Wire dimension: 6 mm
Overall length: 45 mm
Material: Steel
Surface treatment: Zinc plated
Safety anchor: No
Drilling diameter: 12 mm
Anchor diameter: 8.0 mm
Tightening torque: 9 N-m
Anchoring depth: 25 mm
Maximum trapping: 8 mm
Head type: Hexagon head
Min. anchor distance: 50 mm
Base material colour: BROWN
Minimum drilling depth: 45 mm
Product material: Carbon steel
Min. edge distance (mm): 50 mm
Treatment: Galvanised
Min. thickness of base material: 55 mm
Maximum installation depth: 25 mm
Drill diameter: 8.0 mm
Base material: Hollow blocks, Hollow floor joists, Non-cracked concrete, Solid brick
Throughput diameter: 9 mm
Anchor length: 45 mm
Wire diameter: M6
Key size: 10.0 mm
Anchor screw material: Steel
