SPIT 050117 hammerhead plug with collar P HIT M 5x35/15

Name: SPIT 050117 hammerhead plug with collar P HIT M 5x35/15
Brand: SPIT
SKU: 02345218
Price: 0.13 EUR
Availability: InStock

Supplier number: SPIT 050117 | EAN 3439510501177

0.13 tax incl.

€0.11 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 200.

Ordered before 20:00 - delivered tomorrow 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Fast fastening with Spit

Practical benefits

Quick hammer-in installation: You drive the anchor and screw directly into the 5 mm hole with minimal effort.
Flush finish with collar: The flat collar prevents the plug from slipping deep and provides reliable clamping pressure.
Reliable hold in masonry: You secure lightweight fixtures firmly into both standard brick and aerated concrete.

In a nutshell

The right choise for

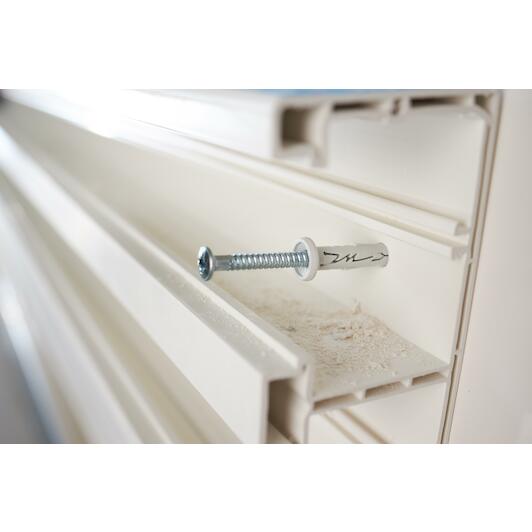

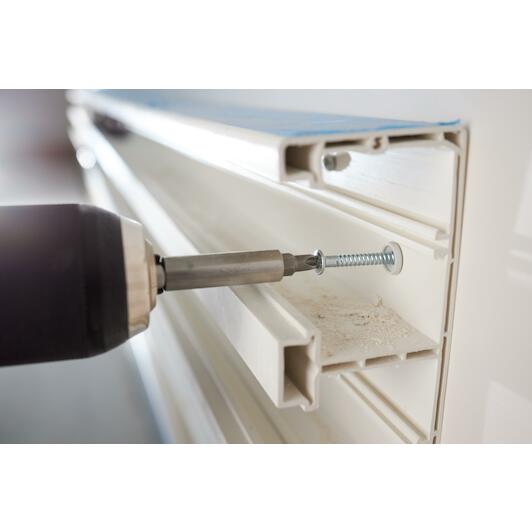

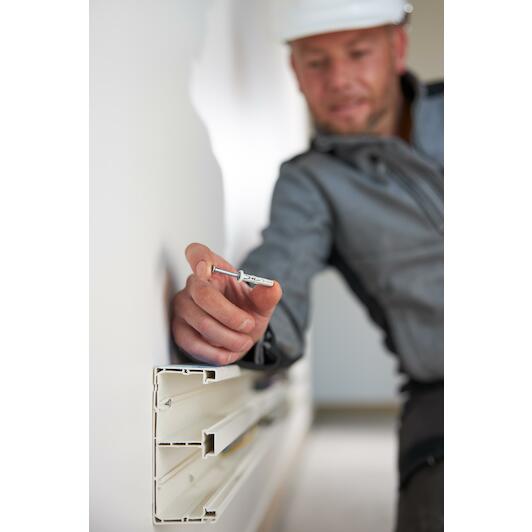

With the Spit hit M hammer-in plug with flat collar p 5X35/15, you speed up serial installations effortlessly. Instead of time-consuming screwing, you simply drive the plastic plug and its included screw directly into a 5 mm drill hole with a hammer. The flat collar delivers a flush finish and prevents the plug from slipping too deep into the wall. This makes it ideal for securing skirting boards, cable trunking, battens, and lightweight profiles firmly into brick or aerated concrete. If you ever need to adjust or dismantle a fixture, the PZ2 screw head allows quick and easy unscrewing.

Product information FAQ

€0.13

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 37 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
type (screw head): PZ2
Drilling diameter: 5 mm

Product description

High-performance percussion plug with collar for in all materials
Easy to install and suitable for all materials
CE certified percussion plug
Spreading through hammer blows
Perfect pressure due to flat collar
Very good performance in hollow materials
Flat finish due to countersunk head
Available with large collar (Hit M-P20)

Applications

Electrical installations

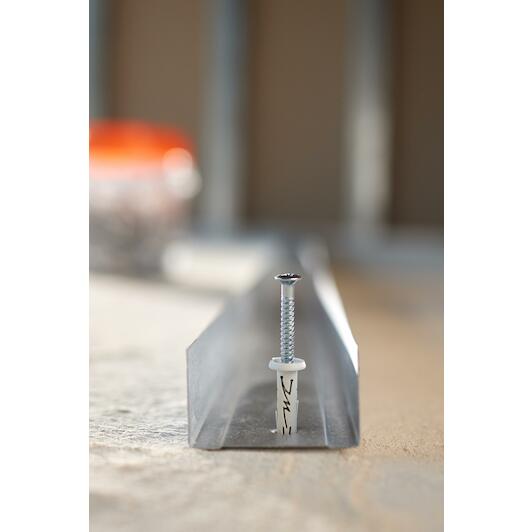

Metal stud profile
Beams and rafters
Signalling
Insulation supports
Skirting boards

Documents

⤓ Declaration of Conformity PDF

All Features

Length (wall plug): 37 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
Type (screw head): PZ2
Drilling diameter: 5 mm
Maximum trapping: 15 mm
Bit size: PZ 2
Anchoring depth: 20 mm
Product material: Nylon
Anchor diameter: 5.0 mm
Min. anchor distance: 100 mm
Base material colour: PURPLE
Head type: Flat head
Minimum drilling depth: 30 mm
Min. thickness of base material: 100 mm
Surface treatment: Galvanised
Drill diameter: 5.0 mm
Maximum installation depth: 20 mm
Throughput diameter: 5 mm
Anchor length: 37 mm
Head diameter: 9.0 mm
Min. edge distance (mm): 100 mm

Brand SPIT
02345218
EAN 3439510501177
Supplier number SPIT 050117

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this plug?: You need to drill a hole with a diameter of 5 mm.
Which base materials is the Spit HIT M suitable for?: It is suitable for solid and hollow building materials, including brick and aerated concrete.
Does this hammer-in plug come with the screw?: Yes, the hammer-in plug comes complete with the matching drive screw.
What drive type does the screw have?: The screw features a PZ2 drive, making it easy to unscrew and remove if necessary.
What is the benefit of the flat collar (P)?: The flat collar ensures tight clamping and prevents the plug from slipping too deep into the drill hole.
