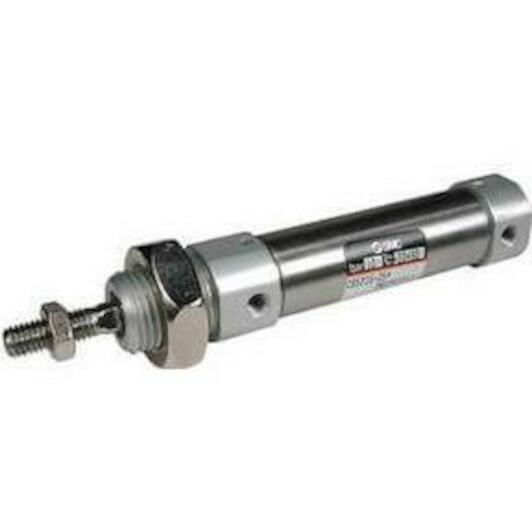

SMC CD85N8-10-B standard cylinder ISO 6432, double-acting, single piston rod Ø8 s10

43.78 tax incl.

€36.18 excl. VAT (incl. all environmental contributions)

€43.78

On order: delivered from 22/05/2026

each

Ordered before 20:00 - delivered as of 22/05/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

C(D)85, ISO 6432 Standard Cylinder, Double Acting, Single Rod

The C85 series conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 8mm through 25mm with standard strokes ranging from 10mm through 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packings and replaceable nose seals, the C85 offers exceptional service life.
Double acting, single rod, crimped cylinder
Conforms to ISO 6432 and CETOP RP52P
Bore sizes (mm): 8, 10, 12, 16, 20, 25
Standard strokes up to 300mm
Auto switch capable

Key features according to our expert

Specifications / All features

Cylinder diameter: 8 mm
Operation: Double-acting
Stroke length: 10 mm
Connection wire or pre-wired connector: 0.5 m (or none if no switch is used)
Mounting type proximity switch: B (Band)
Low speed: No
Assembly: N (base integrated hinge)
Temperature resistance: No
Proximity switch: No switch
Stainless steel: No
Piston rod end options: No
Bore diameter: Ø8 mm
Large stroke length: No
Piston rod bellows: No
Magnet: D (built-in)
Number: 2 pcs (or none if no switch is used)
Buffer: Rubber buffer
