Which shaft diameter is this insert bearing designed for?

This bearing is designed for a metric shaft with a 60 mm diameter.

How is this Y-bearing secured onto the shaft?

It is mounted quickly and securely using an eccentric locking collar on the extended inner ring.

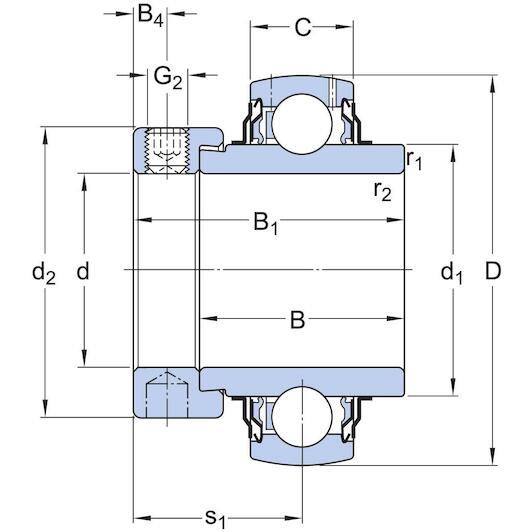

What are the main dimensions of the bearing?

The bearing has an inside diameter of 60 mm, an outside diameter of 110 mm, and a width of 77.8 mm.

What direction of rotation is the SKF YEL 212-2F suited for?

This insert bearing is designed for applications where the direction of rotation is constant.

Is this insert bearing rated for high temperatures?

No, this steel bearing with a plastic cage is not intended for high-temperature use.

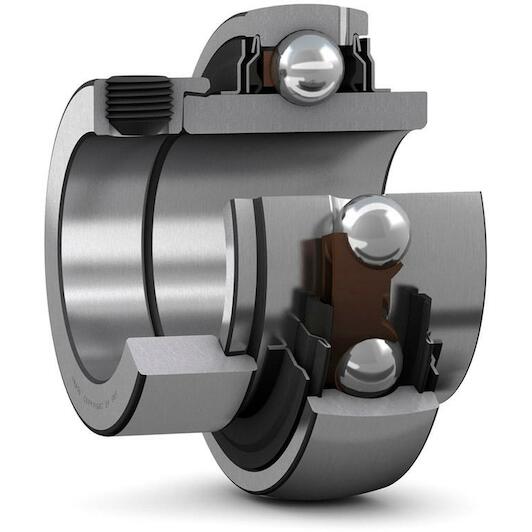

SKF YEL 212-2F Y insert bearing cylindrical with eccentric ring for metric shaft, 60 x 110 mm

Supplier number: SKF YEL 212-2F | EAN 7316570118209

Recommended Retail Price €292.83

144.80 tax incl.

€119.67 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered as of 13/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft mounting by Skf

Practical benefits

Quick and secure clamping: The eccentric locking collar lets you firmly secure the bearing to the shaft for single-direction rotations.
Enhanced running shaft stability: An inner ring extended on both sides minimizes tilting, giving you smooth and balanced rotation under load.
Reduced noise and vibration: The non-metallic cage and integrated contact seals protect against debris while ensuring quiet and long-lasting operation.

In a nutshell

The right choise for

With the Skf yel 212-2F insert bearing, you quickly and securely mount a 60 mm shaft in industrial machinery, conveyors, or agricultural drivetrains. The eccentric locking collar allows you to clamp the bearing firmly to the shaft for applications with a constant direction of rotation, without requiring complex mounting tools. Its inner ring, extended on both sides, prevents tilting and delivers smooth, balanced rotation under load. Featuring an outside diameter of 110 mm, a width of 77.8 mm, and a durable steel design with a non-metallic plastic cage, this bearing reduces noise and vibration, ensuring dependable performance and long-lasting operation in your bearing housings.

Product information FAQ

€144.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 77,8 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 110 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 77,8 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 110 mm
Width, outer ring: 26
Basic static load rating: 36
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Eccentric collar
Limiting speed: 3400
Outer ring type: Spherical
Width, total: 77.8
Width, inner ring: 61.9
Shaft diameter: 60
Bore diameter: 60
Basic dynamic load rating: 52.7
Coating: Without
Outer diameter: 110
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190915
EAN 7316570118209
Supplier number SKF YEL 212-2F

Frequently asked questions about this product

Answered by specialists

Which shaft diameter is this insert bearing designed for?: This bearing is designed for a metric shaft with a 60 mm diameter.
How is this Y-bearing secured onto the shaft?: It is mounted quickly and securely using an eccentric locking collar on the extended inner ring.
What are the main dimensions of the bearing?: The bearing has an inside diameter of 60 mm, an outside diameter of 110 mm, and a width of 77.8 mm.
What direction of rotation is the SKF YEL 212-2F suited for?: This insert bearing is designed for applications where the direction of rotation is constant.
Is this insert bearing rated for high temperatures?: No, this steel bearing with a plastic cage is not intended for high-temperature use.
