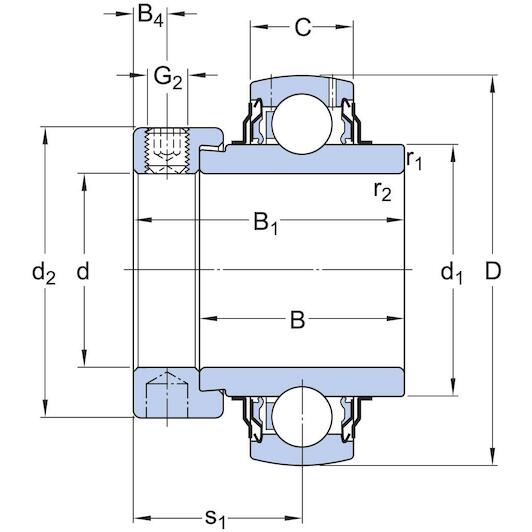

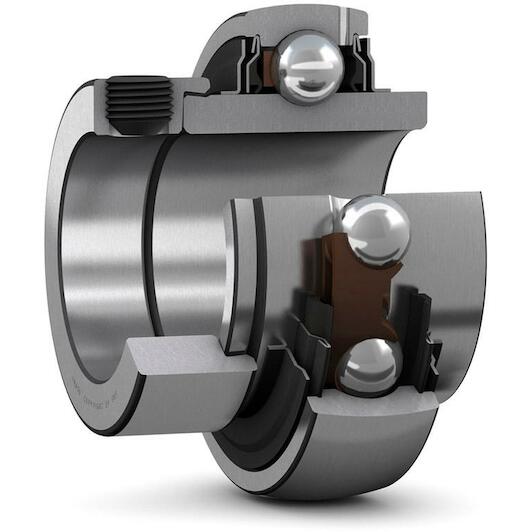

SKF YEL 209-112-2F Y insert bearing cylindrical with eccentric ring for inch shaft, 44.5 x 85 mm

This article is not available

Product description:

  • Self-aligning thrust washer bearing for harsh conditions
  • Fixation on shaft by means of eccentric ring
  • Spherical outer ring with lubrication holes and inner ring extended on both sides
Key features according to our expert
  • Inner diameter: 44,45 mm
  • Width: 56,3 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 85 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577754752
  • Supplier number: SKF YEL 209-112-2F
Inner diameter
44,45 mm
Width
56,3 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
85 mm
Lubricant
Grease
Retaining feature, inner ring
Eccentric collar
Basic static load rating
21.6 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
22 mm
Sealing type
Contact, standard
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Seal and flinger on both sides
Limiting speed
4,300 r/min
Note
Limiting speed with shaft tolerance h6
Width, total
56.3 mm
Width, inner ring
42.8 mm
Bore diameter
44.45 mm
Basic dynamic load rating
33.2 kN
Coating
Without
Outside diameter
85 mm
Rolling elements
Balls
