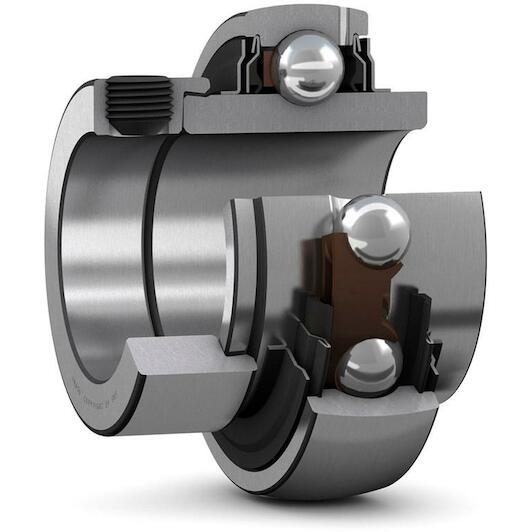

SKF YEL 207-104-2F Y insert bearing cylindrical with eccentric ring for inch shaft, 31.75 x 72 mm

Show more features

Inner diameter

31,75 mm

Width

51,1 mm

Material (bearing)

Steel

Material (cage)

Plastic

High temperature

No

Bore type

Cylindrical

Inner ring extension

On both sides

Outer diameter

72 mm

Lubricant

Grease

Retaining feature, inner ring

Eccentric collar

Basic static load rating

15.3 kN

Relubrication feature

With

Cage

Non-metallic

Rubber seating ring

Without

Width, outer ring

19 mm

Sealing type

Contact, standard

Outer ring type

Spherical

Material, bearing

Bearing steel

Sealing

Seal and flinger on both sides

Limiting speed

5,300 r/min

Note

Limiting speed with shaft tolerance h6

Width, total

51.1 mm

Width, inner ring

37.6 mm

Bore diameter

31.75 mm

Basic dynamic load rating

25.5 kN

Coating

Without

Outside diameter

72 mm

Rolling elements

Balls
