Which shaft diameter is this SKF insert bearing suitable for?

This insert bearing features a 30 mm cylindrical bore and fits metric shafts with a 30 mm diameter.

How is the bearing secured onto the shaft?

It mounts easily to the shaft using an eccentric locking collar, which is designed for a constant direction of rotation.

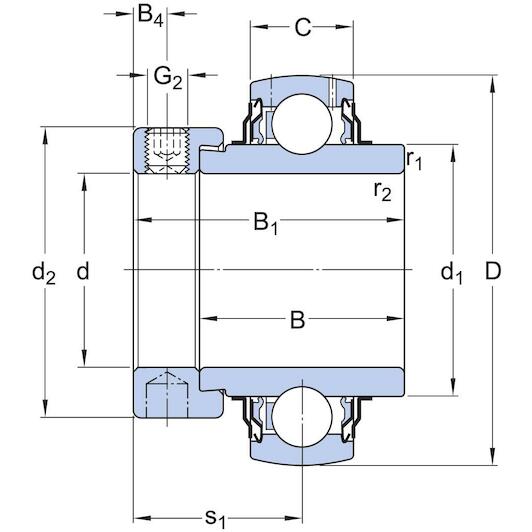

What are the main dimensions of this bearing?

It has an inside diameter of 30 mm, an outside diameter of 62 mm, and a total width of 48.4 mm.

Is this insert bearing suitable for high-temperature use?

No, this standard model is not designed for high-temperature applications.

What materials are used for the bearing and cage?

The bearing is made of steel and is equipped with a non-metallic cage.

SKF YEL 206-2F Y insert bearing cylindrical with eccentric ring for metric shaft, 30 x 62 mm

Supplier number: SKF YEL 206-2F | EAN 7316570826388

Recommended Retail Price €95.31

46.95 tax incl.

€38.80 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable shaft mounting with Skf YEL 206-2F

Practical benefits

Fast and secure mounting: You can clamp the insert bearing quickly onto a 30 mm shaft using the eccentric locking collar.
Enhanced stability on shafts: The inner ring extended on both sides provides balanced shaft support and reduces vibration during constant rotation.
Protection against harsh contamination: Integrated contact seals and flingers keep grease inside while effectively blocking dirt for a longer service life.

In a nutshell

The right choise for

With the Skf yel 206-2F insert bearing, you can quickly and securely mount a durable steel bearing onto a 30 mm cylindrical shaft. Thanks to the practical eccentric locking collar, you clamp the bearing firmly without shaft machining, making it ideal for equipment with a constant direction of rotation. The inner ring extended on both sides provides balanced shaft support and reduces vibrations in conveyor systems, agricultural machines, or packaging units. Featuring an outside diameter of 62 mm and a total width of 48.4 mm, it fits smoothly into existing bearing housings to keep your operations running reliably.

Product information FAQ

€46.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 48,4 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 62 mm

Product description

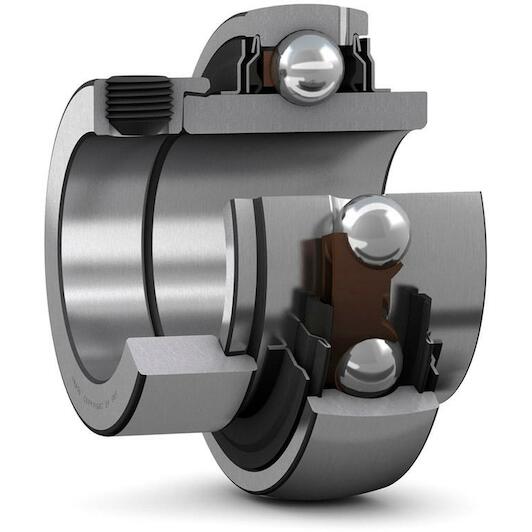

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 48,4 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 62 mm
Width, outer ring: 18
Basic static load rating: 11.2
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Eccentric collar
Limiting speed: 6300
Outer ring type: Spherical
Width, total: 48.4
Width, inner ring: 36.5
Shaft diameter: 30
Bore diameter: 30
Basic dynamic load rating: 19.5
Coating: Without
Outer diameter: 62
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190098
EAN 7316570826388
Supplier number SKF YEL 206-2F

Frequently asked questions about this product

Answered by specialists

Which shaft diameter is this SKF insert bearing suitable for?: This insert bearing features a 30 mm cylindrical bore and fits metric shafts with a 30 mm diameter.
How is the bearing secured onto the shaft?: It mounts easily to the shaft using an eccentric locking collar, which is designed for a constant direction of rotation.
What are the main dimensions of this bearing?: It has an inside diameter of 30 mm, an outside diameter of 62 mm, and a total width of 48.4 mm.
Is this insert bearing suitable for high-temperature use?: No, this standard model is not designed for high-temperature applications.
What materials are used for the bearing and cage?: The bearing is made of steel and is equipped with a non-metallic cage.
