SKF

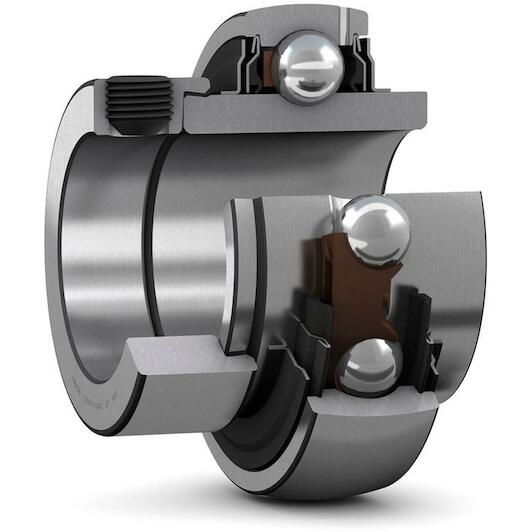

SKF YEL 204-2F Y insert bearing cylindrical with eccentric ring for metric shaft, 20 x 47 mm

Recommended Retail Price €71.24
35.20 tax incl.
€29.09 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels
Key features according to our expert
  • Inner diameter: 20 mm
  • Width: 34,2 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 47 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571136707
  • Supplier number: SKF YEL 204-2F
Inner diameter
20 mm
Width
34,2 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
47 mm
Width, outer ring
14
Basic static load rating
6.55
Relubrication feature
With
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Seal and flinger on both sides
Rolling elements
Balls
Application
For material handling applications
Retaining feature, inner ring
Eccentric collar
Limiting speed
8500
Outer ring type
Spherical
Width, total
43.7
Width, inner ring
34.2
Shaft diameter
20
Bore diameter
20
Basic dynamic load rating
12.7
Coating
Without
Outside diameter
47
Note
Limiting speed with shaft tolerance h6
