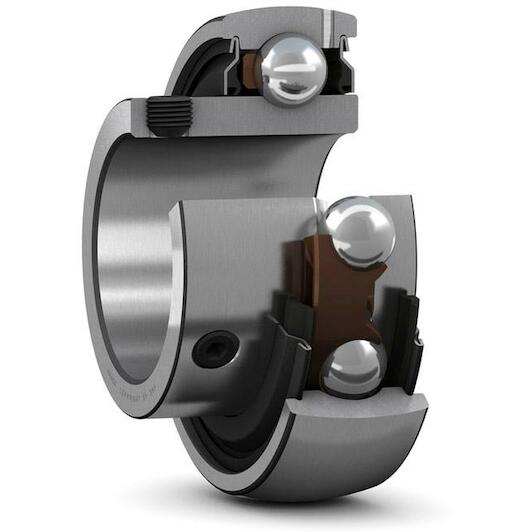

SKF YAT 205-100 Y insert bearing cylindrical with set screw for metric shaft, 25.4 x 52 mm

Show more features

Inner diameter

25,4 mm

Width

27,2 mm

Material (bearing)

Steel

Material (cage)

Plastic

High temperature

No

Bore type

Cylindrical

Inner ring extension

On one side

Outer diameter

52 mm

Lubricant

Grease

Retaining feature, inner ring

Set screws

Basic static load rating

7.8 kN

Relubrication feature

With

Cage

Non-metallic

Rubber seating ring

Without

Width, outer ring

15 mm

Sealing type

Contact, standard

Outer ring type

Spherical

Material, bearing

Bearing steel

Sealing

Seal on both sides

Limiting speed

7,000 r/min

Note

Limiting speed with shaft tolerance h6

Width, total

27.2 mm

Width, inner ring

27.2 mm

Bore diameter

25.4 mm

Basic dynamic load rating

14 kN

Coating

Without

Outside diameter

52 mm

Rolling elements

Balls
