Which shaft diameter is this SKF insert bearing designed for?

This Y-bearing is designed for cylindrical metric shafts with a diameter of 80 mm.

How is the bearing secured onto the shaft?

You lock the bearing onto the shaft by tightening the set screws on the extended inner ring.

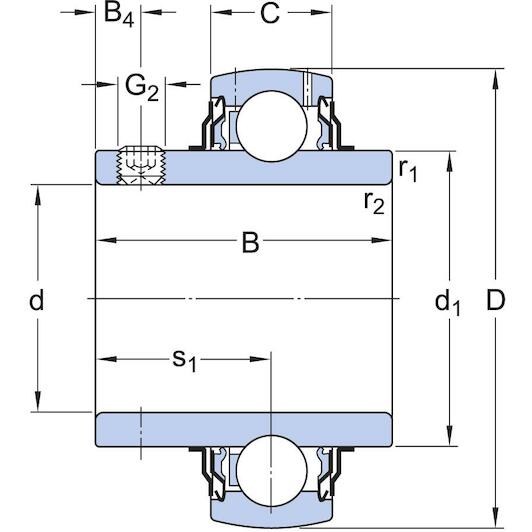

What are the main dimensions of this bearing?

The bearing features an 80 mm bore diameter, a 140 mm outside diameter, and an overall width of 77.8 mm.

Is this bearing suitable for alternating directions of rotation?

Yes, the set screw locking mechanism is suitable for both constant and alternating rotation directions.

Is this SKF bearing rated for high-temperature use?

No, this standard steel insert bearing with a non-metallic cage is not designed for high-temperature environments.

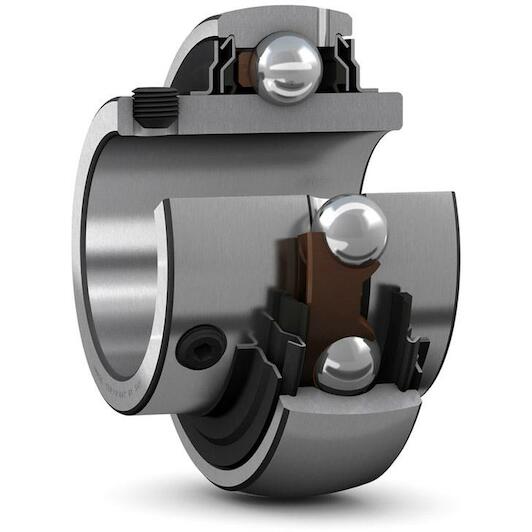

SKF YAR 216-2F Y insert bearing cylindrical with set screw for metric shaft, 80 x 140 mm

Supplier number: SKF YAR 216-2F | EAN 7316570206272

Recommended Retail Price €494.47

244.80 tax incl.

€202.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support for machinery

Practical benefits

Fast and secure mounting: You lock the bearing securely onto the shaft using the integrated set screws on the extended inner ring.
Constant and alternating rotation: The Skf insert bearing provides dependable operation under both continuous and reversing rotational directions.
Reduced noise and vibration: High-grade steel construction paired with a non-metallic cage dampens operating vibration for smooth, quiet running.

In a nutshell

The right choise for

With the Skf yar 216-2F insert bearing, you achieve stable and dependable shaft support for heavy-duty industrial and agricultural machinery. Thanks to the inner ring extended on both sides and integrated set screws, you can mount and lock the bearing securely onto an 80 mm cylindrical shaft without needing special adapters or shaft shoulders. Its high-grade bearing steel construction and non-metallic cage dampen vibrations to ensure smooth, quiet operation. Designed to handle both constant and alternating rotation directions, this insert bearing delivers reliable performance across conveyor systems, industrial fans, and power transmission assemblies.

Product information FAQ

€244.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 80 mm
Width: 77,8 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 140 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 80 mm
Width: 77,8 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 140 mm
Width, outer ring: 30
Basic static load rating: 53
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Set screws
Limiting speed: 2400
Outer ring type: Spherical
Width, total: 77.8
Width, inner ring: 77.8
Shaft diameter: 80
Bore diameter: 80
Basic dynamic load rating: 72.8
Coating: Without
Outer diameter: 140
Note: Limiting speed with shaft tolerance h6

Brand SKF
01191134
EAN 7316570206272
Supplier number SKF YAR 216-2F

Frequently asked questions about this product

Answered by specialists

Which shaft diameter is this SKF insert bearing designed for?: This Y-bearing is designed for cylindrical metric shafts with a diameter of 80 mm.
How is the bearing secured onto the shaft?: You lock the bearing onto the shaft by tightening the set screws on the extended inner ring.
What are the main dimensions of this bearing?: The bearing features an 80 mm bore diameter, a 140 mm outside diameter, and an overall width of 77.8 mm.
Is this bearing suitable for alternating directions of rotation?: Yes, the set screw locking mechanism is suitable for both constant and alternating rotation directions.
Is this SKF bearing rated for high-temperature use?: No, this standard steel insert bearing with a non-metallic cage is not designed for high-temperature environments.
