SKF

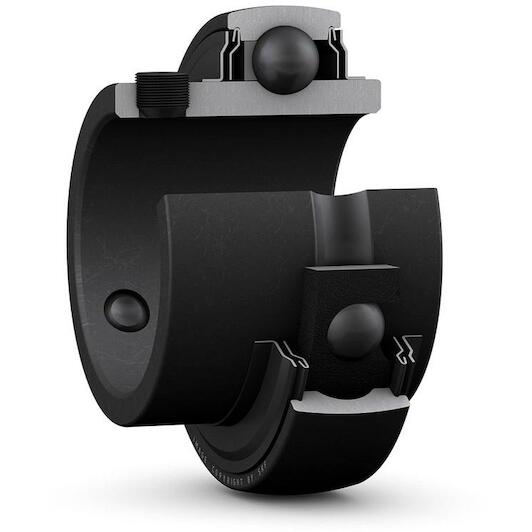

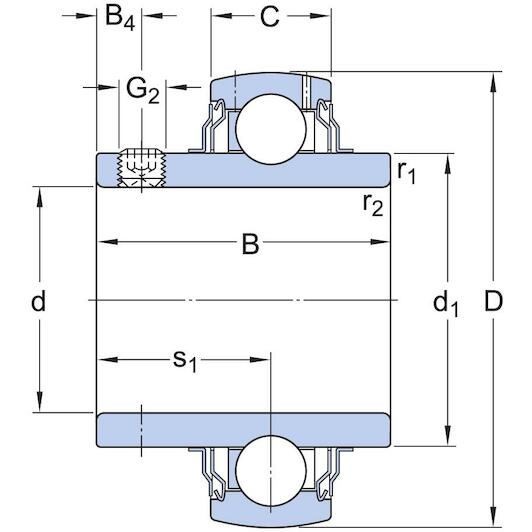

SKF YAR 209-2FW/VA228 Y insert bearing cylindrical with set screw for metric shaft, 45 x 85 mm - YAR 209-2F/VA228

Recommended Retail Price €619.69
306.80 tax incl.
€253.55 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

SKF high temperature bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in operating temperatures up to 350 °C (660 °F). This makes these products very suitable for applications in kiln trucks, roller hearth furnaces, and bakeries, where there are both constant and alternating directions of rotation.

  • Excellent performance under severe conditions
  • Reduced environmental impact
  • Reduce total operating cost
  • Virtually maintenance-free operation
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 49,2 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: Yes
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 85 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316579070904
  • Supplier number: SKF YAR 209-2F/VA228
Inner diameter
45 mm
Width
49,2 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
Yes
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
85 mm
Width, outer ring
22
Basic static load rating
21.6
Relubrication feature
With
Lubricant
Solid lubricant
Rubber seating ring
Without
Sealing type
Non-contact
Cage
Non-metallic
Material, bearing
High temperature steel
Sealing
Shield and flinger on both sides
Rolling elements
Balls
Application
For high temperature applications
Retaining feature, inner ring
Set screws
Limiting speed
130
Outer ring type
Spherical
Width, total
49.2
Width, inner ring
49.2
Shaft diameter
45
Bore diameter
45
Basic dynamic load rating
33.2
Coating
Manganese phosphate coated
Outside diameter
85
Maximum operating temperature
350
