What shaft diameter is this insert bearing designed for?

This bearing is designed for a metric shaft with a diameter of 35 mm.

How is this Y-bearing secured onto the shaft?

You lock the bearing onto the shaft using two set screws in the extended inner ring.

What materials are used in this bearing?

The bearing is made of stainless steel and features a plastic cage.

What are the outer dimensions of this bearing?

The bearing has an outer diameter of 72 mm and an overall width of 42,9 mm.

Can this SKF insert bearing handle alternating rotation?

Yes, it is designed for both constant and alternating directions of rotation.

SKF YAR 207-2RF/HV Y insert bearing cylindrical with set screw for metric shaft, 35 x 72 mm

Supplier number: SKF YAR 207-2RF/HV | EAN 7316571068312

Recommended Retail Price €408.99

202.40 tax incl.

€167.27 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support in demanding conditions

Practical benefits

Quick and secure mounting: Using the integrated set screws and extended inner ring, you securely clamp this Skf insert bearing onto 35 mm shafts with minimal downtime.
Resilient stainless steel build: The stainless steel material offers exceptional resistance against moisture and corrosive elements, ensuring you maintain smooth performance in harsh environments.
Smooth dual direction rotation: Designed to handle both constant and alternating rotation directions, you effectively reduce operating noise and vibration across your machinery.

In a nutshell

The right choise for

With the Skf yar 207-2RF/HV insert bearing, you achieve reliable, corrosion-resistant shaft support in demanding settings like the food and beverage industry. Built from stainless steel, it delivers durable performance in wet conditions and washdown applications. The inner ring, extended on both sides, provides enhanced stability on the shaft and prevents tilting, while securing it onto a 35 mm shaft is quick and simple using the two built-in set screws. Engineered to handle both constant and alternating rotation directions, this insert bearing noticeably reduces operating noise and vibrations across your machinery.

Product information FAQ

€202.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 42,9 mm
Material (bearing): Stainless steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 72 mm

Product description

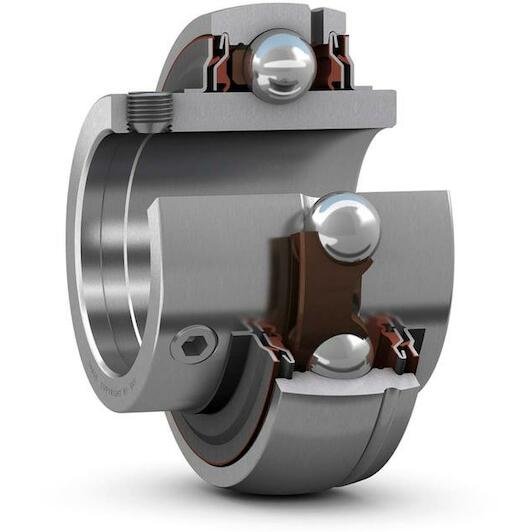

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 42,9 mm
Material (bearing): Stainless steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 72 mm
Width, outer ring: 19
Basic static load rating: 15.3
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, multiple
Cage: Non-metallic
Material, bearing: Stainless steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For food and beverage applications
Retaining feature, inner ring: Set screws
Limiting speed: 3200
Outer ring type: Spherical
Width, total: 42.9
Width, inner ring: 42.9
Shaft diameter: 35
Bore diameter: 35
Basic dynamic load rating: 21.6
Coating: Without
Outer diameter: 72
Note: Limiting speed with shaft tolerance h6

Brand SKF
01191143
EAN 7316571068312
Supplier number SKF YAR 207-2RF/HV

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this insert bearing designed for?: This bearing is designed for a metric shaft with a diameter of 35 mm.
How is this Y-bearing secured onto the shaft?: You lock the bearing onto the shaft using two set screws in the extended inner ring.
What materials are used in this bearing?: The bearing is made of stainless steel and features a plastic cage.
What are the outer dimensions of this bearing?: The bearing has an outer diameter of 72 mm and an overall width of 42,9 mm.
Can this SKF insert bearing handle alternating rotation?: Yes, it is designed for both constant and alternating directions of rotation.
