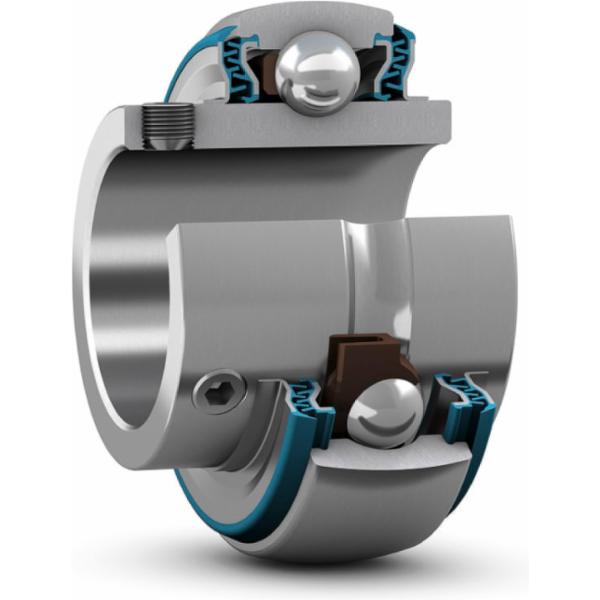

SKF YAR 204-2LPW/ZM Y insert bearing cylindrical with set screw for metric shaft, 20 x 47 mm

Show more features

Inner diameter

20 mm

Width

31 mm

Material (bearing)

Steel

Material (cage)

Plastic

High temperature

No

Bore type

Cylindrical

Inner ring extension

On both sides

Outer diameter

47 mm

Lubricant

Grease

Retaining feature, inner ring

Set screws

Basic static load rating

6.55 kN

Relubrication feature

Without

Cage

Non-metallic

Rubber seating ring

Without

Width, outer ring

14 mm

Sealing type

Contact, gutter

Outer ring type

Spherical

Material, bearing

Bearing steel

Sealing

Seal and flinger on both sides

Note

Limiting speed with shaft tolerance h6

Width, total

31 mm

Width, inner ring

31 mm

Limiting speed

5,000 r/min

Bore diameter

20 mm

Basic dynamic load rating

12.7 kN

Coating

Zinc-coated rings

Outside diameter

47 mm

Rolling elements

Balls
