What shaft size is this SKF bearing suitable for?

This insert bearing has an inner diameter of 19.05 mm and is designed for a 3/4-inch shaft.

How is the bearing mounted onto the shaft?

You lock the extended inner ring securely onto the shaft by tightening the two set screws.

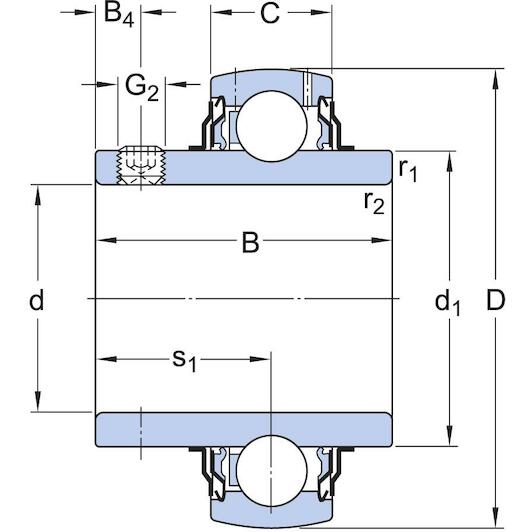

What are the main dimensions of this insert bearing?

It features a 19.05 mm inner diameter, a 47 mm outer diameter, and a total width of 31 mm.

Is this Y-bearing suitable for alternating rotation directions?

Yes, it is designed to handle applications with both constant and alternating rotation directions.

Is this bearing designed for high-temperature use?

No, this standard steel bearing is not specified for high-temperature applications.

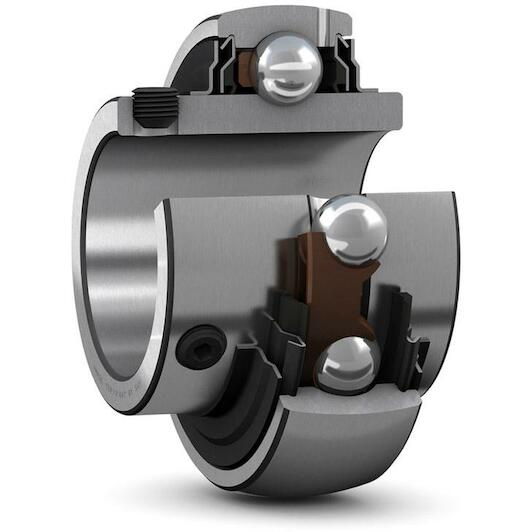

SKF YAR 204-012-2F Y insert bearing cylindrical with set screw for inch shaft, 19 x 47 mm

Supplier number: SKF YAR 204-012-2F | EAN 7316577754530

Recommended Retail Price €58.87

28.95 tax incl.

€23.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft mounting with Skf

Practical benefits

Quick and easy mounting: You secure the bearing firmly onto the shaft using the two integrated set screws.
Built for alternating rotation: Designed to perform reliably in applications with both constant and alternating directions of rotation.
Effective seal against contamination: Contact seals retain internal grease effectively while shielding the rolling elements from external debris.

In a nutshell

The right choise for

With the Skf yar 204-012-2F Y-insert bearing, you mount quickly and securely onto a 3/4-inch (19.05 mm) shaft. Thanks to the two integrated set screws on the inner ring extended on both sides, you achieve a firm lock without needing a press fit. The robust steel construction with a cylindrical bore and a 47 mm outer diameter easily accommodates both constant and alternating directions of rotation. In addition, the contact seals reliably retain grease while shielding the bearing from debris. This keeps your machinery and conveyor systems running smoothly while making maintenance straightforward.

Product information FAQ

€28.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 19,05 mm
Width: 31 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 47 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 19,05 mm
Width: 31 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 47 mm
Width, outer ring: 14
Basic static load rating: 6.55
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Set screws
Limiting speed: 8500
Outer ring type: Spherical
Width, total: 31
Width, inner ring: 31
Shaft diameter: 19.05
Bore diameter: 19.05
Basic dynamic load rating: 12.7
Coating: Without
Outer diameter: 47
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190888
EAN 7316577754530
Supplier number SKF YAR 204-012-2F

Frequently asked questions about this product

Answered by specialists

What shaft size is this SKF bearing suitable for?: This insert bearing has an inner diameter of 19.05 mm and is designed for a 3/4-inch shaft.
How is the bearing mounted onto the shaft?: You lock the extended inner ring securely onto the shaft by tightening the two set screws.
What are the main dimensions of this insert bearing?: It features a 19.05 mm inner diameter, a 47 mm outer diameter, and a total width of 31 mm.
Is this Y-bearing suitable for alternating rotation directions?: Yes, it is designed to handle applications with both constant and alternating rotation directions.
Is this bearing designed for high-temperature use?: No, this standard steel bearing is not specified for high-temperature applications.
