SKF

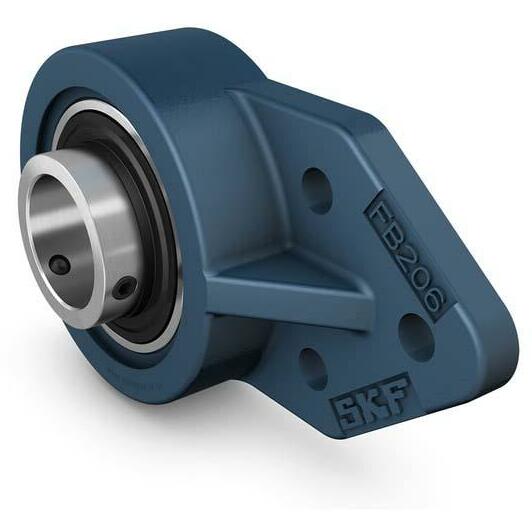

SKF UCFB 206/H ball bearing unit with support flange, three bolts and locking with set screw, cast iron bearing housing, JIS

Recommended Retail Price €71.61
35.40 tax incl.
€29.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/06/2026
each

  • Ordered before 20:00 - delivered as of 01/06/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

These three-bolt bracket flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 30 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • High temperature: No
  • Material (bearing): Steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316579751667
  • Supplier number: SKF UCFB 206/H
Shaft diameter
30 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
High temperature
No
Material (bearing)
Steel
Number of bolt holes for fasteners
3
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Bearing steel
Flanged housing type
3-bolt bracket
Basic static load rating
11.2
Application
For material handling applications
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
3
Grease fitting
With
Material, housing
Cast iron
Housing type
Flanged
Attachment bolt diameter
8
Bearing width, total
38.1
Basic dynamic load rating
19.5
Coating
Without
Housing overall width
30
Retaining feature, inner ring
Set screws
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
5000
Width, total
40.9
Sealing, unit
Optional end cover
Set screw
M6x0.75
