SKF

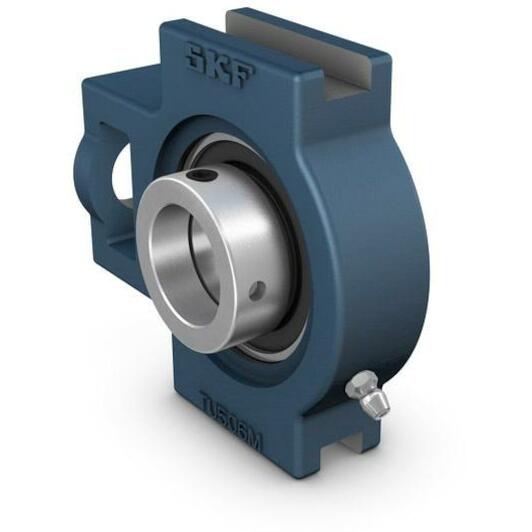

SKF TU 45 FM ball bearing unit 45 mm

Recommended Retail Price €267.31
132.20 tax incl.
€109.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

  • Designed for rotation in one direction
  • Quick and easy to mount onto the shaft
  • Accommodate static initial misalignment
  • Long service life
  • Reduced noise and vibration levels
Key features according to our expert
  • Shaft diameter: 45 mm
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316570055092
  • Supplier number: SKF TU 45 FM
Shaft diameter
45 mm
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Material, housing
Cast iron
Grease fitting
With
Tightening torque, set screw
16.5
Hexagonal key size for set screw
5
Note
Limiting speed with shaft tolerance h6
Application
For material handling applications
Housing type
Take-up
Bore type
Cylindrical
Material, bearing
Bearing steel
Sealing, bearing
Seal on both sides
Sealing type
Contact, standard
Rubber seating ring
Without
Lubricant
Grease
Bearing width, total
43.7
Basic static load rating
21.6
Retaining feature, inner ring
Eccentric collar
Sealing, unit
Optional end cover
Limiting speed
4300
Relubrication hole
With
Housing overall width
49
Basic dynamic load rating
33.2
Coating
Without
Set screw
M10x1
