What shaft diameter is the SKF TU 35 FM suitable for?

This take-up bearing unit is designed for shafts with a 35 mm diameter.

How is the bearing locked onto the shaft?

It is quickly and securely locked onto the shaft using an eccentric locking collar.

What materials are used in this bearing unit?

The housing is made of cast iron and the insert ball bearing is made of bearing steel.

Which direction of rotation is this unit designed for?

This variant with an eccentric collar is intended for applications with a constant direction of rotation.

What is the primary purpose of a take-up unit?

It is typically mounted inside a take-up frame to tension and align conveyor belts or shafts.

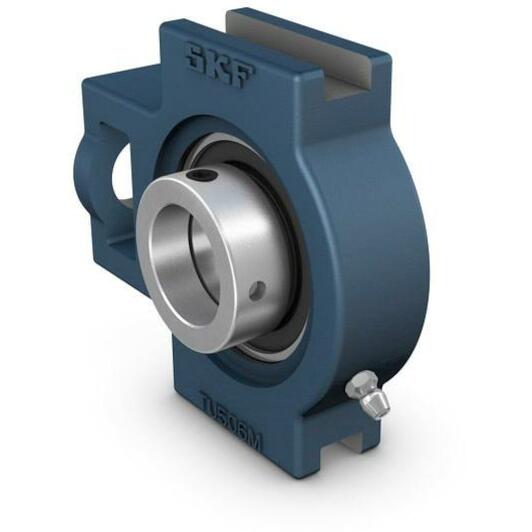

SKF TU 35 FM ball bearing unit 35 mm

Supplier number: SKF TU 35 FM | EAN 7316571054100

Recommended Retail Price €197.22

97.60 tax incl.

€80.66 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable tensioning for constant rotation

Practical benefits

Fast and simple mounting: The integrated eccentric locking collar allows you to secure the bearing quickly onto your 35 mm shaft.
Durable cast iron housing: The rugged cast iron body easily accommodates initial static misalignment while providing long-lasting structural strength in tough environments.
Smooth Skf bearing operation: You achieve reduced noise and vibration levels, ensuring dependable machine performance and a significantly longer service life.

In a nutshell

The right choise for

With the Skf tu 35 fm take-up bearing unit, you accurately align and tension conveyor belts or shafts in your machinery. The eccentric locking collar allows you to mount the steel ball bearing quickly and securely onto a 35 mm shaft without damaging it. Its rugged cast iron housing provides dependable structural protection while accommodating initial static misalignment. Specifically designed for applications with a constant direction of rotation, this unit delivers smooth, quiet operation with reduced vibration levels, ensuring a longer service life for your material handling systems.

Product information FAQ

€97.60

In stock - tax incl.

Key features according to our expert

Shaft diameter: 35 mm
Material (bearing housing): Cast iron
Material (bearing): Steel

Product description

Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Designed for rotation in one direction
Quick and easy to mount onto the shaft
Accommodate static initial misalignment
Long service life
Reduced noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter: 35 mm
Material (bearing housing): Cast iron
Material (bearing): Steel
Material, housing: Cast iron
Grease fitting: With
Tightening torque, set screw: 16.5
Hexagonal key size for set screw: 5
Note: Limiting speed with shaft tolerance h6
Application: For material handling applications
Housing type: Take-up
Bore type: Cylindrical
Material, bearing: Bearing steel
Sealing, bearing: Seal on both sides
Sealing type: Contact, standard
Rubber seating ring: Without
Lubricant: Grease
Bearing width, total: 38.9
Basic static load rating: 15.3
Retaining feature, inner ring: Eccentric collar
Sealing, unit: Optional end cover
Limiting speed: 5300
Relubrication hole: With
Housing overall width: 37
Basic dynamic load rating: 25.5
Coating: Without
Set screw: M10x1

Brand SKF
01191016
EAN 7316571054100
Supplier number SKF TU 35 FM

Frequently asked questions about this product

Answered by specialists

What shaft diameter is the SKF TU 35 FM suitable for?: This take-up bearing unit is designed for shafts with a 35 mm diameter.
How is the bearing locked onto the shaft?: It is quickly and securely locked onto the shaft using an eccentric locking collar.
What materials are used in this bearing unit?: The housing is made of cast iron and the insert ball bearing is made of bearing steel.
Which direction of rotation is this unit designed for?: This variant with an eccentric collar is intended for applications with a constant direction of rotation.
What is the primary purpose of a take-up unit?: It is typically mounted inside a take-up frame to tension and align conveyor belts or shafts.
