SKF TU 20 FM ball bearing unit 20 mm

Supplier number: SKF TU 20 FM | EAN 7316577300027
Recommended Retail Price €124.65
61.60 tax incl.
€50.91 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL


€61.60
tax incl.

Product information

Key features according to our expert

  • Shaft diameter: 20 mm
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel

Product description

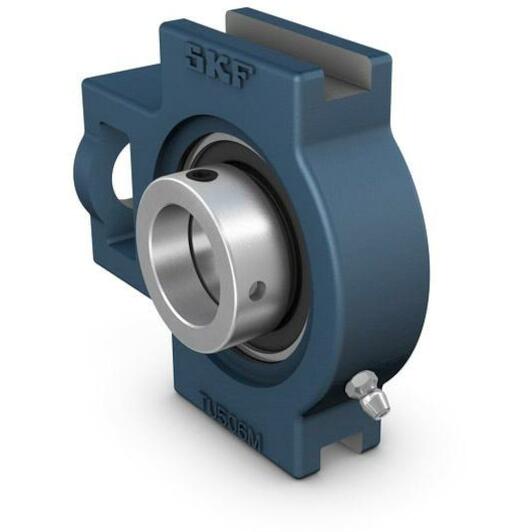

Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

  • Designed for rotation in one direction
  • Quick and easy to mount onto the shaft
  • Accommodate static initial misalignment
  • Long service life
  • Reduced noise and vibration levels

Documents

All Features

Shaft diameter
20 mm
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Material, housing
Cast iron
Grease fitting
With
Tightening torque, set screw
4
Hexagonal key size for set screw
3
Note
Limiting speed with shaft tolerance h6
Application
For material handling applications
Housing type
Take-up
Bore type
Cylindrical
Material, bearing
Bearing steel
Sealing, bearing
Seal on both sides
Sealing type
Contact, standard
Rubber seating ring
Without
Lubricant
Grease
Bearing width, total
30.5
Basic static load rating
6.55
Retaining feature, inner ring
Eccentric collar
Sealing, unit
Optional end cover
Limiting speed
8500
Relubrication hole
With
Housing overall width
34
Basic dynamic load rating
12.7
Coating
Without
Set screw
M6x0.75
  • Brand SKF
  • EAN 7316577300027
  • Supplier number SKF TU 20 FM
