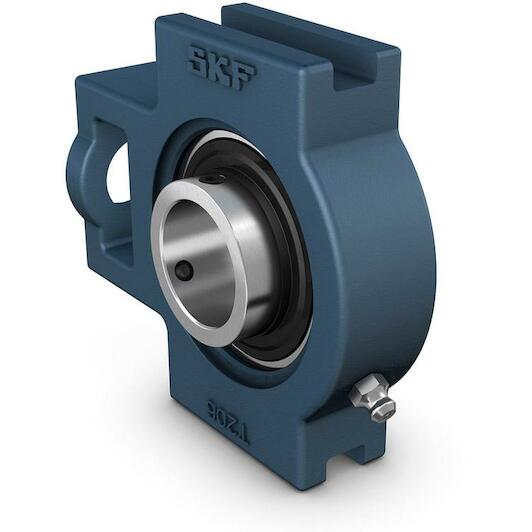

SKF TU 2. TF ball bearing unit 50.8 mm

Show more features

Shaft diameter

50,8 mm

Material (bearing)

Steel

Bore type

Cylindrical

Material (bearing housing)

Cast iron

Grease fitting

With

Material, bearing

Bearing steel

Sealing, bearing

Seal and flinger on both sides

Sealing type

Contact, standard

Rubber seating ring

Without

Lubricant

Grease

Basic static load rating

29 kN

Material, housing

Cast iron

Bearing width, total

55.6 mm

Retaining feature, inner ring

Set screws

Limiting speed

3,600 r/min

Note

Limiting speed with shaft tolerance h6

Sealing, unit

Optional end cover

Relubrication hole

With

Housing overall width

64 mm

Basic dynamic load rating

43.6 kN

Coating

Without

Housing type

Take-up
