SKF

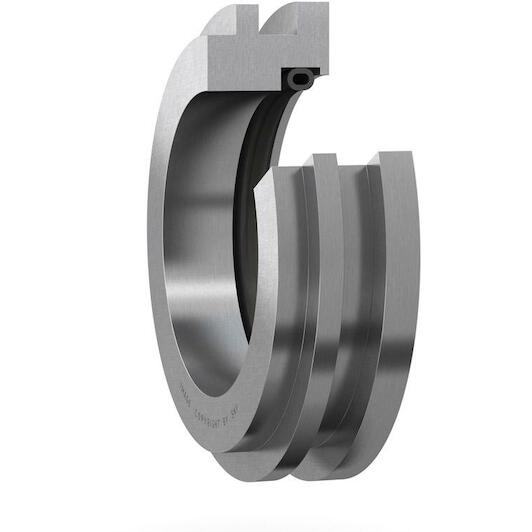

SKF TSN 516 S Labyrinth bearing housing seal

Recommended Retail Price €270.01
133.60 tax incl.
€110.41 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Free shipping
  • Delivery by DHL

Product description

SNL housing seals are the first barrier against contamination. For applications where there are high speeds or extreme temperatures, SKF recommends using labyrinth seals, and for highly contaminated environments, SKF recommends the three-barrier solution. This cost-effective sealing solution can have a significant impact on bearing service life as contaminants have to pass through three barriers to reach the bearing.

  • Good protection from contamination
  • Keep the lubricant in the housing
  • Part of the three barrier solution
  • Cost-effective
Key features according to our expert
  • Inner diameter: 70 mm
  • Outer diameter: 98,5 mm
  • Width: 22 mm
  • Type of seal: Labyrinth seal
Specifications / All features
  • Brand: SKF
  • EAN: 7316570153323
  • Supplier number: SKF TSN 516 S
Inner diameter
70 mm
Outer diameter
98,5 mm
Width
22 mm
Type of seal
Labyrinth seal
Outside diameter
98.5
Material
Steel with silicone element
Shaft diameter
70
Housing groove diameter
101
Sealing type
Labyrinth
Accessory type
Housing seal
